SELECT A DIAGRAM

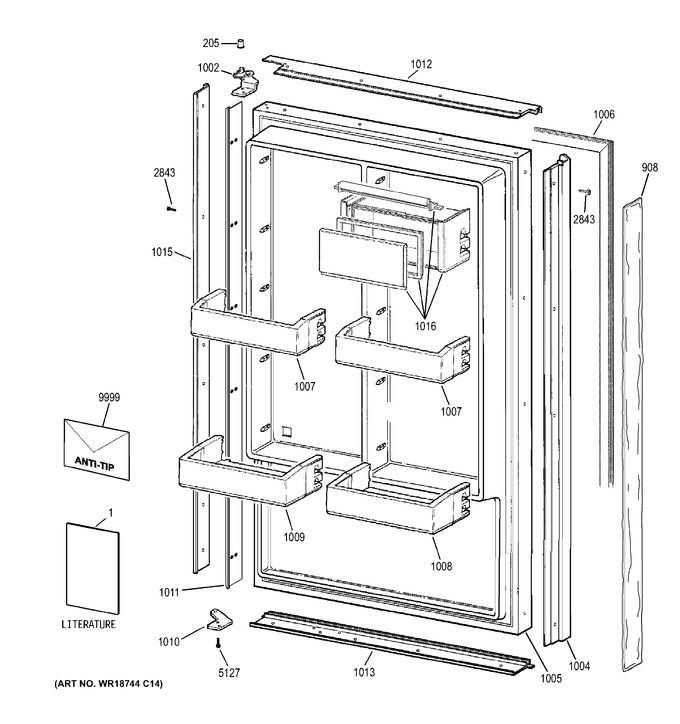

1 - Door


2 - Cabinet - Standard


3 - Cabinet - Flush Inset


4 - Shelves & Drawers


5 - Machine Compartment


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	49-60722-2		Pm Owners Manual		Appelez-nous	-
1	31-49078		Pm Install Instructions		Appelez-nous	-
1	31-51884		Pm Mini Manual		Appelez-nous	-
205	WG03A00012		Bushing Hinge Top   (Replaces: WR02X10954)				$ 49.33
908	WR02X24343		Ps Handle Trim Cover		Appelez-nous	-
1002	WR13X10580		Hinge Asm Door Top		Appelez-nous	-
1004	WR12X10948		Handle		Appelez-nous	-
1005	WR78X12371		Door Foamed Asm Sd Ff/fz		Appelez-nous	-
1006	WR78X20986		Door Gasket Sd		Appelez-nous	-
1007	WG02L00043		Bin Ff Door W/window   (Replaces: WR71X10138)				$ 105.03
1008	WR01L08881		Bin Door Ff Deep Rh   (Replaces: WR71X10139)				$ 94.48
1009	WG03L00003		Bin Door Ff Deep Lh   (Replaces: WR71X10140)				$ 107.67
1010	WR13X10657		Hinge Door Btm		Appelez-nous	-
1011	WR38X10440		Trim Handle		Appelez-nous	-
1012	WR17X12709		Trim Top Rh		Appelez-nous	-
1013	WR17X12708		Trim Bottom Rh		Appelez-nous	-
1015	WR12X10952		Handle Trim Asm Rh		Appelez-nous	-
1016	WR71X10142		Assy Dairy Comp		Appelez-nous	-
2843	WR01X10484		8-32 X 5/8" Ph Ss Tcs		Appelez-nous	-
9999	WR49X21844		Anti-tip Hardware Asm		Appelez-nous	-
