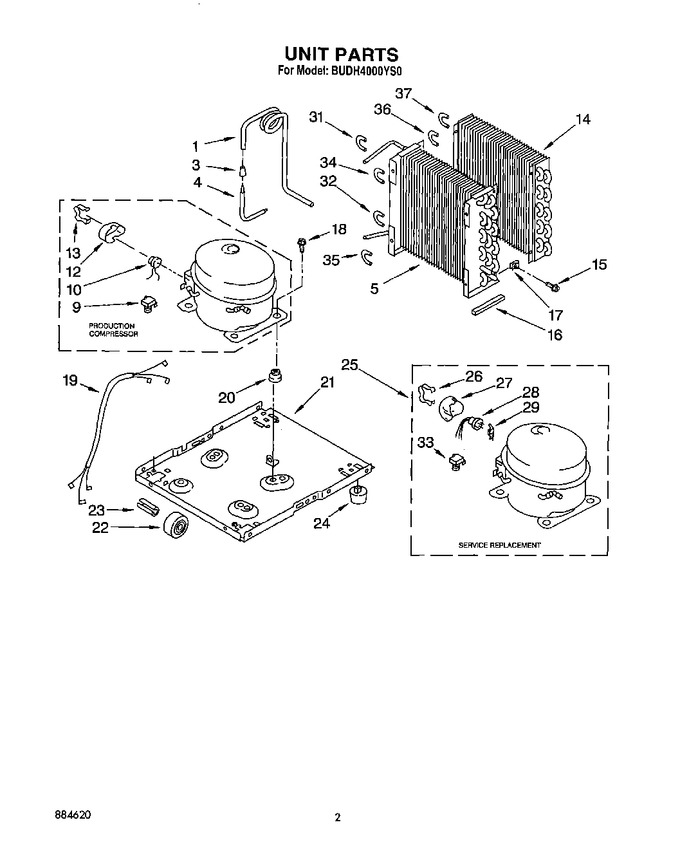

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1161189		Tube, Restrictor (36.0`` Length)		Appelez-nous	-
3	474013		Strainer, Tube		Appelez-nous	-
4	1161348		Tube, Outlet (includes No.3)		Appelez-nous	-
5	1161197		Condenser		Appelez-nous	-
9	1156815		Relay, Start		Appelez-nous	-
10	1158823		Overload, Protector		Appelez-nous	-
12	1157582		Cover, Terminal		Appelez-nous	-
13	938384		Retainer, Cover		Appelez-nous	-
14	1161199		Evaporator		Appelez-nous	-
15	488624		Screw, 8 X 3/8 (4)		Appelez-nous	-
16	998867		Seal		Appelez-nous	-
17	488660		Nut, No.8 (4)   (Replaces: 486197)		Appelez-nous	-
18	488400		Screw, 1/4-28 X 1		Appelez-nous	-
19	484136		Harness, Wire		Appelez-nous	-
20	1156748		Grommet (4)		Appelez-nous	-
21	1157584		Base		Appelez-nous	-
22	998726		Roller (2)		Appelez-nous	-
23	489015		Roll Pin (2)		Appelez-nous	-
24	951886		Glide (2)		Appelez-nous	-
25	876684		Compressor, Service (complete Assembly)		Appelez-nous	-
26	831282		Retainer, Cover		Appelez-nous	-
27	865068		Cover, Terminal		Appelez-nous	-
28	876686		Overload		Appelez-nous	-
29	549086		Spring, Overload		Appelez-nous	-
31	1158407		Bend Return		Appelez-nous	-
32	708532		Bend, Return		Appelez-nous	-
33	876689		Relay		Appelez-nous	-
34	708531		Bend, Return		Appelez-nous	-
35	1160080		Bend, Return		Appelez-nous	-
36	855199		Bend, Return		Appelez-nous	-
37	854624		Bend, Return		Appelez-nous	-
