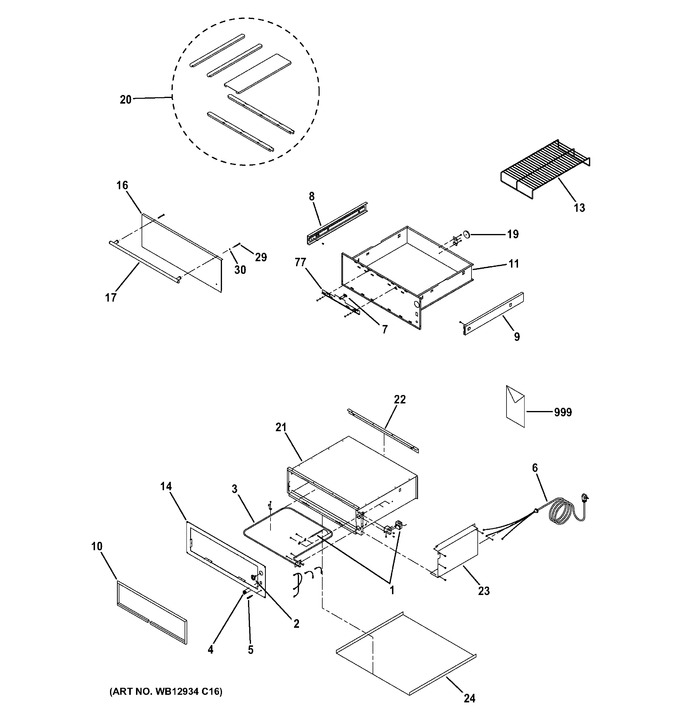

1 - Warming Drawer


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB20X10011		Thermostat Service Assy		Appelez-nous	-
2	WB03X10349		Knob		Appelez-nous	-
3	WB44X10029		Heating Element		Appelez-nous	-
4	WB24X10206		Switch, Rocker		Appelez-nous	-
5	WB02X10587		Lamp Indicator		Appelez-nous	-
6	WB02X10588		Cord, Power		Appelez-nous	-
7	WB03X10061		Vent Slide Knob Service		Appelez-nous	-
8	WB63X24412		Slide Lh		Appelez-nous	-
9	WB63X24411		Slide Rh		Appelez-nous	-
10	WB02X11289		Gasket Seal 30" Asm		Appelez-nous	-
11	WB58X10020		Drawer Frame 30		Appelez-nous	-
13	WB48X10045		Wire Rack		Appelez-nous	-
14	WB56X10698		Face Panel 30" Serv Ass'		Appelez-nous	-
16	WB56X24467		Front Panel 30" Mgm Ss		Appelez-nous	-
17	WB15X23627		Handle Asm 30 (ss)		Appelez-nous	-
19	WB02X11290		Magnet-closed Detent		Appelez-nous	-
20	WB64X10032		30" Rail Kit Svce Assy		Appelez-nous	-
21	WB63X10059		Cavity 30"		Appelez-nous	-
22	WB02X11006		Anti Tip Bracket 30"		Appelez-nous	-
23	WB02X11551		Control Panel Cover		Appelez-nous	-
24	WB02X11008		Bottom Cover 30"		Appelez-nous	-
29	WB01X10288		Bolt,hex Head 1/4"28*3/4		Appelez-nous	-
30	WB01X10289		Washer 1.5 Od*.25		Appelez-nous	-
77	WB06X10692		Vent Slide		Appelez-nous	-
999	49-80384-3		Pm Owners Manual		Appelez-nous	-
999	WB01X10351		Install Screw (qty 4)		Appelez-nous	-
999	31-10700		Instruction Install		Appelez-nous	-
999	31-20754		Pm Manual Mini & Wd Asm		Appelez-nous	-
	WG04L00213		Gasket Seal 30" Asm				$ 94.09
