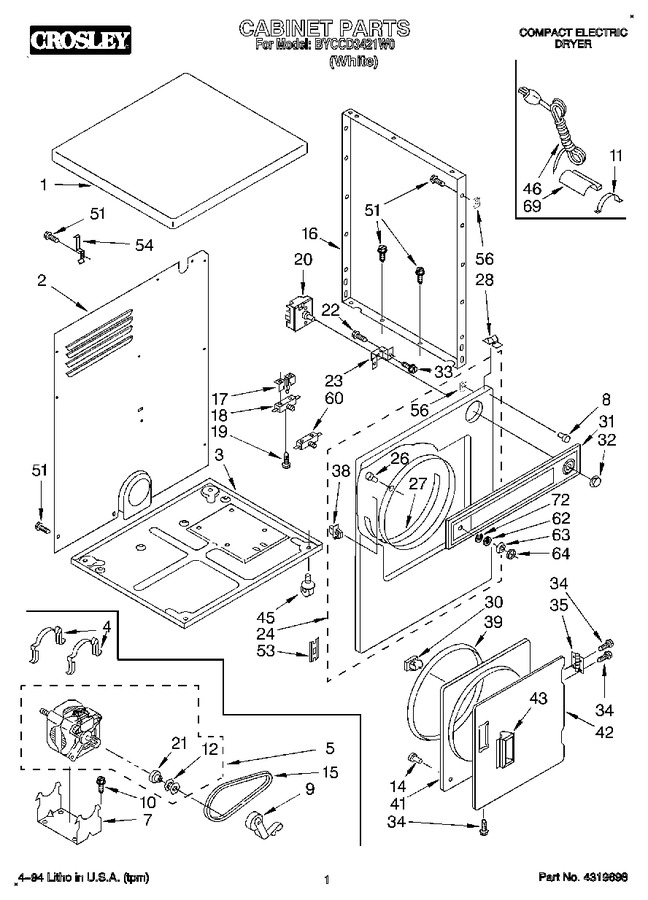

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	345703		Top (white)   (Replaces: 4319377)				$ 261.58
2	280048		Panel, Rear (white)   (Replaces: 4319439)				$ 299.42
3	WP348726		Base Assembly   (Replaces: 4319418)				$ 292.16
4	WP660658		Clip, Motor   (Replaces: 4319313)				$ 8.22
5	279827		Motor, 60 Hz.   (Replaces: 3398046)			Immediately	$ 191.95
7	696541		Base, Motor				$ 97.86
8	307563		Rivet		Appelez-nous	-
9	WP691366		Idler & Pulley Assembly   (Replaces: 691366)			Immediately	$ 22.47
10	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 8.25
11	WP98997		Clip   (Replaces: 98997)				$ 11.64
12	8066051		Pulley, 60 Hz.   (Replaces: 3396426)				$ 118.78
14	238614		Bumper				$ 84.79
15	3394652		Belt, Drive			Immediately	$ 52.32
16	4319382		Panel, Side (white)		Appelez-nous	-
17	WP691581		Lever, Door Switch   (Replaces: 295998)			Immediately	$ 8.49
18	W10820036		Switch, Door   (Replaces: 347207)			Immediately	$ 30.50
19	WP98129		Screw, 6-20 X 1-3/8   (Replaces: 98129)				$ 8.18
20	WP8563881		Timer, 60 Hz.   (Replaces: 9830837)				$ 367.99
21	WP3393657		Restrainer, Belt   (Replaces: 3393657)			Immediately	$ 139.08
22	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 8.03
23	348171		Bracket, Timer   (Replaces: 4319376)		Appelez-nous	-
24	280044		Front Panel Assembly (xwhite)   (Replaces: 4319385)				$ 335.16
26	279220		Clip, Felt Pad (2)   (Replaces: 685203)				$ 23.55
27	279264		Seal & Bearing Assembly   (Replaces: 349462)			Immediately	$ 74.52
28	WP345670		Lock, Top (2)   (Replaces: 345670)			Immediately	$ 8.09
30	WP3389441		Catch, Door Assembly   (Replaces: 3389441)				$ 6.20
31	9831125		Panel, Control		Appelez-nous	-
32	9831126		Timer Knob Assembly		Appelez-nous	-
33	W11808444		Screw, 8-32 X 5/16 (2)   (Replaces: 98139)		Appelez-nous	-
34	WP694091		Screw (4)   (Replaces: 694091)				$ 7.55
35	9830792		Hinge & Pin Assembly (2)		Appelez-nous	-
38	279570		Strike, Panel   (Replaces: 696144)			Immediately	$ 8.89
39	W11613302		Seal, Door   (Replaces: 3390734)				$ 56.31
41	4319397		Door, Rear		Appelez-nous	-
42	4319327		Door, Front (white)		Appelez-nous	-
43	WP3405184		Handle, Door (white)   (Replaces: 4319329)				$ 79.81
45	279127		(alt.)   (Replaces: 349999)				$ 77.47
45	279127		(alt.)   (Replaces: 688055)				$ 77.47
45	279127		Caster (4)   (Replaces: 660719)				$ 77.47
46	4319443		Cord, Power		Appelez-nous	-
51	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
53	W10854425		Clip (2)   (Replaces: 3394083)			Immediately	$ 16.34
54	345790		Bracket, Power Cord (2)		Appelez-nous	-
56	WP98234		Clip, Ground (2)   (Replaces: 98234)			Immediately	$ 11.96
60	689038		Switch, Push-to-start		Appelez-nous	-
62	9831122		Nut, Hex		Appelez-nous	-
63	345530		Ring, Trim		Appelez-nous	-
64	688041		Nut, Knurled		Appelez-nous	-
69	686769		Protector Support		Appelez-nous	-
72	688193		Lockwasher		Appelez-nous	-
