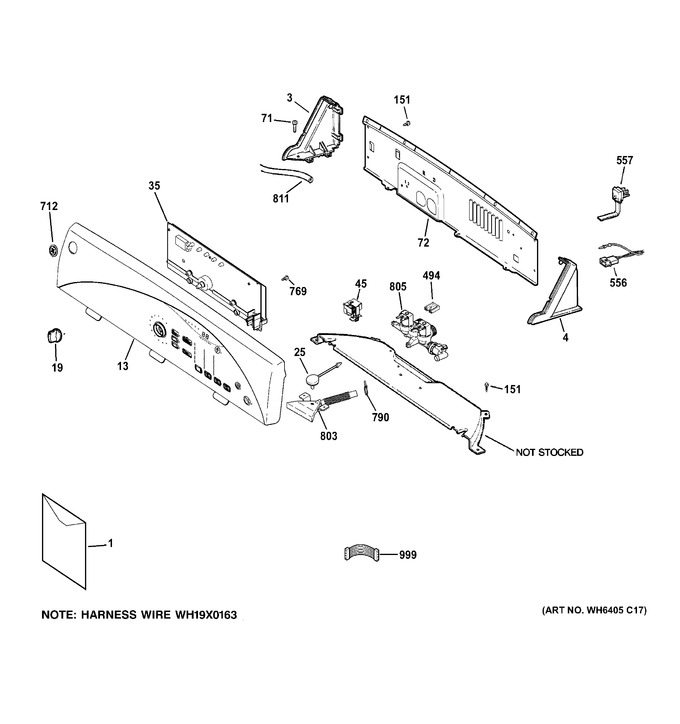

1 - Controls & Backsplash
2 - Cabinet, Cover & Front Panel
3 - Tub, Basket & Agitator
4 - Suspension, Pump & Drive Components
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-16845-1 | Pm Mini Manual |
|
- | |||||
| 1 | 49-90534 | Pm Owners Manual |
|
- | |||||
| 1 | 31-15441 | Pm Instruction Install |
|
- | |||||
| 3 | WH42X22575 | Endcap Washer Lh |
|
- | |||||
| 4 | WH42X22576 | Endcap Washer Rh |
|
- | |||||
| 13 | WH42X22780 | Backsplash Asm |
|
- | |||||
| 19 | WG04L02355 | Knob Asm (Replaces: WH01X10645) |
|
$ 30.18 | |||||
| 25 | WG04F05570 | Probe Sensor Atc (Replaces: WH12X10532) |
|
$ 67.82 | |||||
| 35 | WH12X10549 | Board Asm Mounted |
|
- | |||||
| 45 | WG04F04823 | Sensor Pressure (Replaces: WH12X10548) |
|
$ 50.92 | |||||
| 71 | WH2X1205 | Scr 8-18 B 1/2 Hxw P |
|
- | |||||
| 72 | WH46X22755 | Back Panel |
|
- | |||||
| 151 | WH02X10126 | Screw 8-18 B 1hw 1/2 Sn |
|
- | |||||
| 494 | WD21X10257 | Term Hsng - W/valve |
|
- | |||||
| 556 | WH12X497 | Housing Terminal |
|
- | |||||
| 557 | WH19X22594 | Cord Power Asm |
|
- | |||||
| 712 | WH01X10648 | Badge |
|
- | |||||
| 769 | WG03A00428 | Screw 8-18 Hi/lo 5/8 (Replaces: WR01X10196) |
|
$ 4.20 | |||||
| 790 | WH1X2036 | Clamp Hose |
|
- | |||||
| 803 | WG04F04648 | Funnel Shower Head Asm (Replaces: WH41X10299) |
|
Immediately | $ 23.82 | ||||
| 805 | WG04F11302 | Valve Triple Water (Replaces: WH13X22314) |
|
Immediately | $ 141.01 | ||||
| 811 | WG04F03638 | Hose Pres Sw (Replaces: WH41X365) |
|
Immediately | $ 15.88 | ||||
| 999 | WH19X10097 | Harness Washer |
|
- |
