SELECT A DIAGRAM

01 - Cover Sheet


02 - Door Panel Parts


03 - Control Panel And Latch Parts


04 - Inner Door Parts


05 - Fill, Drain And Overfill Parts


06 - Tub And Frame Parts


07 - Pump, Washarm And Motor Parts


08 - Upper Wash And Rinse Parts


09 - Heater Parts


10 - Upper Rack And Track Parts


11 - Lower Rack Parts


12 - Optional Parts (not Included)

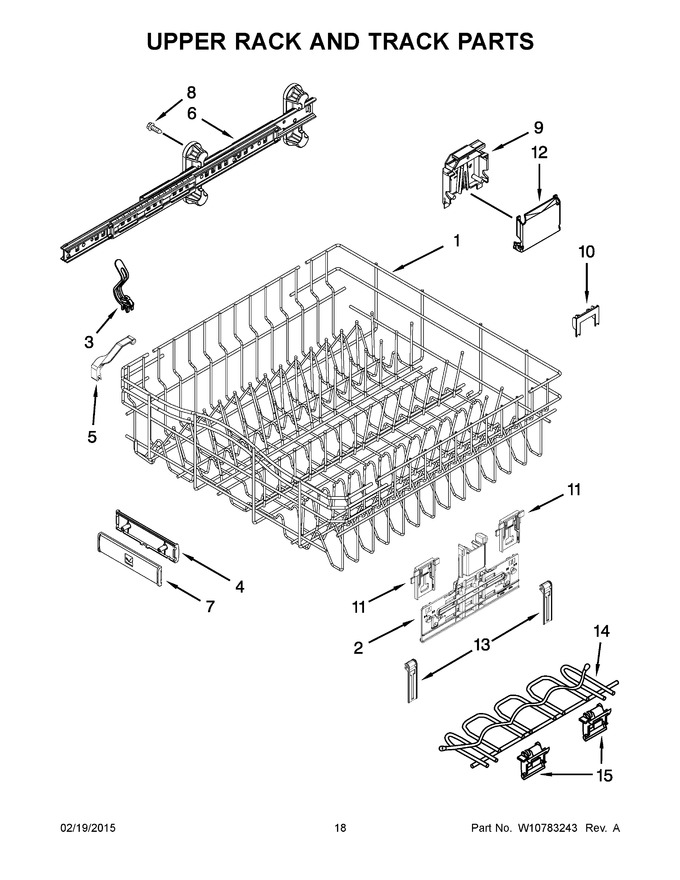

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11661174		Dishrack, Upper   (Replaces: W10194864)				$ 197.59
2	WPW10546503		Adjuster Assembly   (Replaces: W10546503)			Immediately	$ 43.81
3	WP8539101		Clip, No Flip   (Replaces: 8539101)				$ 84.22
4	W10587968		Handle, Dishrack (rear)		Appelez-nous	-
5	WPW10267076		Clip, Dispenser Guard   (Replaces: W10267076)				$ 31.56
6	W11259786		Track, Assembly (right Hand)   (Replaces: W10752596)			Immediately	$ 96.80
7	W10587967		Handle, Dishrack (front)		Appelez-nous	-
8	WPW10309090		Screw   (Replaces: W10309090)			Immediately	$ 76.86
9	WPW10588165		Housing Adjuster (right Hand)   (Replaces: W10588165)			Immediately	$ 56.44
10	WPW10250160		Clip, Adjuster   (Replaces: W10250160)			Immediately	$ 49.20
11	WPW10195840		Positioner, Adjuster   (Replaces: W10195840)			Immediately	$ 51.32
12	WPW10250162		Cover, Adjuster   (Replaces: W10250162)			Immediately	$ 7.61
13	WPW10195839		Strap, Tether Adjuster   (Replaces: W10195839)			Immediately	$ 35.89
14	W10669975		Cupshelf				$ 51.41
15	8562026		Clip, Cupshelf				$ 101.18
6A	W11259785		Track, Assembly (left Hand)   (Replaces: W10752595)			Immediately	$ 90.16
9A	WPW10588164		Housing Adjuster (left Hand)   (Replaces: W10588164)			Immediately	$ 18.95
