SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel And Separator Parts


03 - Lower Cabinet And Front Panel Parts

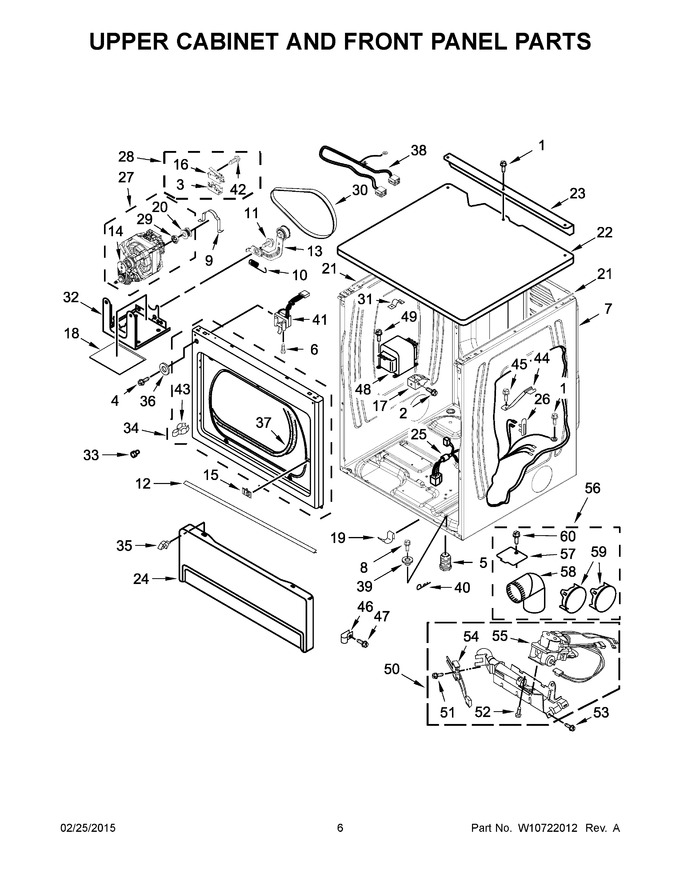

04 - Upper Cabinet And Front Panel Parts


05 - Upper And Lower Bulkhead Parts


06 - Door Parts


07 - Burner Assembly


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
2	681615		Screw   (Replaces: 3391915)				$ 14.57
3	8564011		Bracket, Switch				$ 19.08
4	WP3400077		Screw   (Replaces: 3400077)				$ 7.29
5	WP689172		Foot, Dryer Plastic   (Replaces: 689172)				$ 85.51
6	WP3395530		Screw   (Replaces: 697773)				$ 8.57
7	W11417441		Cabinet (white)   (Replaces: W10547697)				$ 440.17
8	3400523		Bolt, Security		Appelez-nous	-
9	WP660658		Clamp, Motor   (Replaces: 660658)				$ 8.22
10	WPW10446781		Spring, Idler   (Replaces: W10446781)			Immediately	$ 25.80
11	WP3389420		Screw   (Replaces: 3389420)				$ 8.62
12	W10576519		Seal, Deflector		Appelez-nous	-
13	WPW10344192		Assembly, Idler   (Replaces: W10344192)			Immediately	$ 94.57
14	WP3405160		Belt, Drive (blower Wheel)   (Replaces: 3405160)			Immediately	$ 36.99
15	W10521429		Cover, Strike (white)		Appelez-nous	-
16	W10410873		Assembly, Switch Actuator		Appelez-nous	-
17	3391846		Clip, Front Panel				$ 22.21
18	W11113654		Motor, Sound Pad   (Replaces: W10212660)				$ 23.29
19	WPW10291934		Clip   (Replaces: W10291934)				$ 8.14
20	W10167237		Pulley		Appelez-nous	-
21	WP8318396A		Seal, Foam   (Replaces: 8318396)				$ 39.71
22	3389351		Top (white)		Appelez-nous	-
23	3979115		Bracket, Angle		Appelez-nous	-
24	WP3406797		Panel, Toe (white)   (Replaces: 697215)				$ 250.25
25	W11352532		Harness   (Replaces: W10702051)		Appelez-nous	-
26	WP3392519		Fuse, Thermal (91c)   (Replaces: 3392519)			Immediately	$ 24.95
27	W11215537		Assembly, Motor 50 Hz.   (Replaces: W10747112)				$ 560.48
28	W11236387		Assembly, Switch   (Replaces: W10259136)		Appelez-nous	-
29	WP3393657		Restrainer, Belt   (Replaces: 3393657)			Immediately	$ 139.08
30	WPW10131172		Belt, Drive   (Replaces: W10131172)			Immediately	$ 44.00
31	WP98997		Clip   (Replaces: 98997)				$ 11.64
32	W11676491		Bracket, Motor   (Replaces: W10135695)				$ 134.62
33	693152		Bumper				$ 11.51
34	W11101559		Panel, Front   (Replaces: W10694721)		Appelez-nous	-
35	WP3388229		Retainer   (Replaces: 3388229)			Immediately	$ 8.45
36	W10223794		Washer		Appelez-nous	-
37	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
38	W10702055		Jumper, Lower To Collar		Appelez-nous	-
39	3389233		Bushing		Appelez-nous	-
40	W10117347		Cotter Pin		Appelez-nous	-
41	WPW10237959		Switch, Door   (Replaces: W10237959)			Immediately	$ 55.64
42	3400934		Assembly, Screw And Insulator		Appelez-nous	-
43	279570		Strike, Door   (Replaces: 696144)			Immediately	$ 8.89
44	W10181903		Bracket, Burner		Appelez-nous	-
45	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.55
46	3387561		Clamp, Pipe		Appelez-nous	-
47	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 8.25
48	W10851673		Transformer   (Replaces: 3977633)				$ 417.47
49	W11676450		Screw   (Replaces: 3400000)				$ 14.76
50	W10096909		Burner Assembly 50 Hz. (type 1 And 2)		Appelez-nous	-
51	WPW10366705		Screw   (Replaces: 3393909)				$ 7.88
52	WP681414		Screw   (Replaces: 343641)			Immediately	$ 8.47
53	WP693995		Screw   (Replaces: 3387057)			Immediately	$ 7.55
54	279311		Ignitor   (Replaces: 686590)			Immediately	$ 78.90
55	WP8281918		Valve Gas 50 Hz. (complete)   (Replaces: 8281918)				$ 242.35
56	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting) (white)   (Replaces: 279818)			Immediately	$ 76.65
57	WPW10354249		Plate, Cover   (Replaces: 3394331)				$ 9.41
58	WPW10416072		Elbow   (Replaces: 49026)				$ 28.16
59	WPW10404617		Plug, Multivent (white)   (Replaces: 49252)				$ 75.58
60	WP488729		Screw   (Replaces: 488729)			Immediately	$ 8.28

    View Diagram in Separate Window       Print Part List
