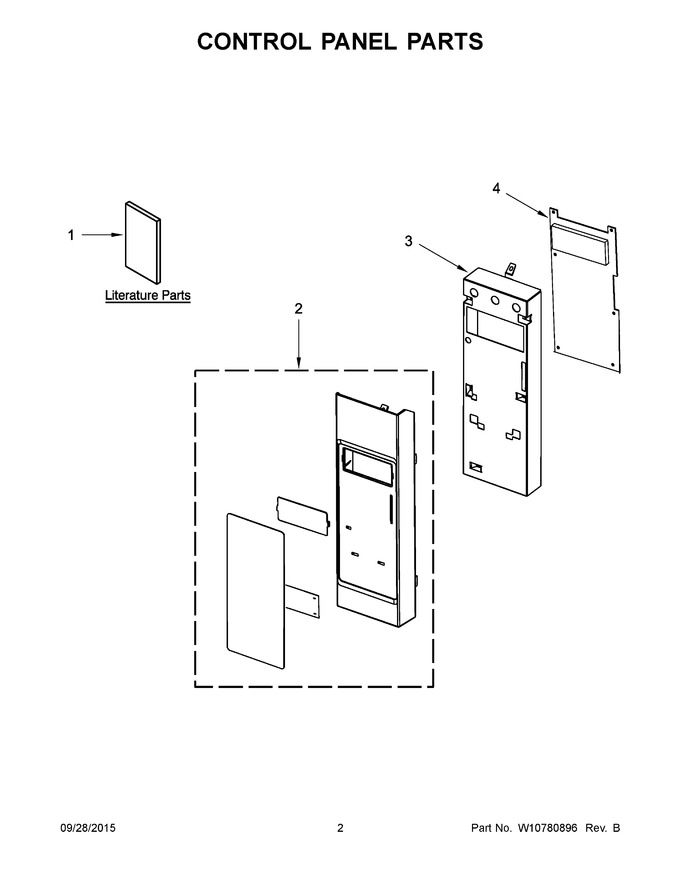

02 - Control Panel Parts
03 - Door Parts
04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10724866 | Installation Instructions |
|
- | |||||
| 2 | W10615652 | Assembly, Control Box (stainless) |
|
- | |||||
| 3 | W10468659 | Backer, Control |
|
$ 85.83 | |||||
| 4 | WPW10692233 | Control (Replaces: W10692233) |
|
$ 321.54 | |||||
| 1A | W10721264 | Use And Care Guide |
|
- | |||||
| 1B | W10612338 | Cooking Guide Label |
|
- | |||||
| 1C | W10612343 | Tech Sheet |
|
- | |||||
| 2A | W10673097 | Assembly, Control Box (white Ice) |
|
- | |||||
| 2B | W10673096 | Assembly, Control Box (black Ice) |
|
- |
