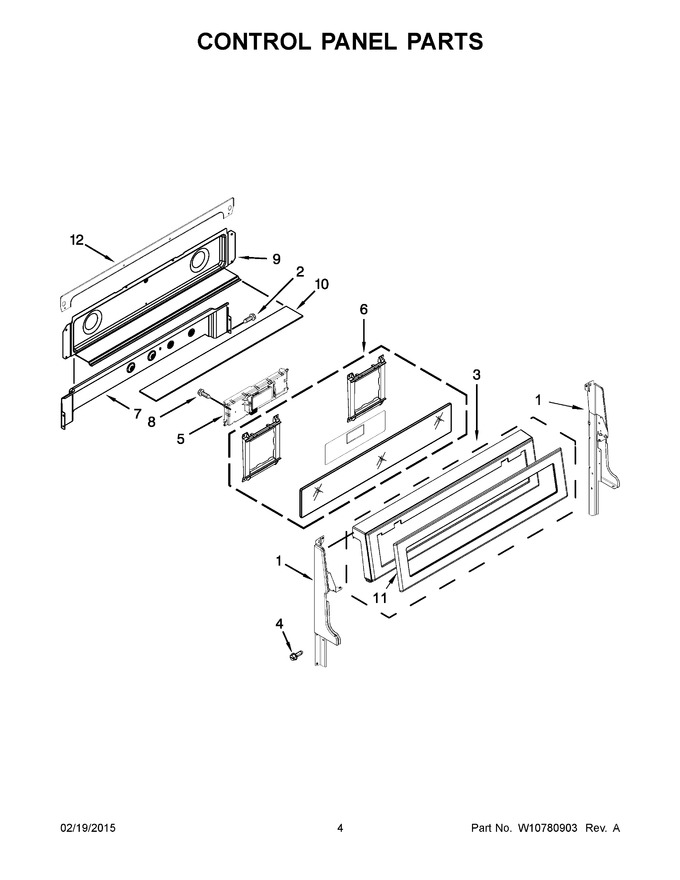

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10319109 | Support, Backguard (black) (left) |
|
$ 92.84 | |||||
| 2 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 3 | W10645846 | Console (black) (Replaces: W10645852) |
|
$ 321.25 | |||||
| 4 | W11233072 | Screw (Replaces: 7101P634-60) |
|
Immediately | $ 14.72 | ||||
| 5 | W10877013 | Control, Electronic (Replaces: W10649465) |
|
Immediately | $ 397.56 | ||||
| 6 | W11430942 | Assembly, User Interface (black) (Replaces: W10619109) |
|
$ 858.61 | |||||
| 7 | W10278697 | Shield, Vent |
|
Immediately | $ 183.33 | ||||
| 8 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 7.30 | |||||
| 9 | W10296773 | Cover, Backguard |
|
$ 194.52 | |||||
| 10 | W11684874 | Insulation, Wire Cover (Replaces: W10309232) |
|
$ 35.56 | |||||
| 11 | W10645846 | Skin, Control Panel (black) (Replaces: W10645840) |
|
$ 321.25 | |||||
| 12 | WPW10292689 | Cover, Wire Filler (Replaces: W10292689) |
|
$ 95.35 | |||||
| 11A | W10645847 | Skin, Control Panel (white) (Replaces: W10645841) |
|
$ 313.67 | |||||
| 11B | W11164063 | Skin, Control Panel (stainless) (Replaces: W10645842) |
|
Immediately | $ 518.62 | ||||
| 1A | W10319111 | Support, Backguard (black) (right) |
|
$ 43.80 | |||||
| 1B | W10319110 | Support, Backguard (white) (left) |
|
$ 95.95 | |||||
| 1C | W10319112 | Support, Backguard (white) (right) |
|
$ 93.79 | |||||
| 3A | W10645847 | Console (white) (Replaces: W10645853) |
|
$ 313.67 | |||||
| 3B | W11164063 | Console (stainless) (Replaces: W10645854) |
|
Immediately | $ 518.62 | ||||
| 6A | W11430948 | Assembly, User Interface (white) (Replaces: W10692424) |
|
- | |||||
| 9A | W10776098 | Cover, Backguard (stainless Models Only) |
|
$ 135.81 |
