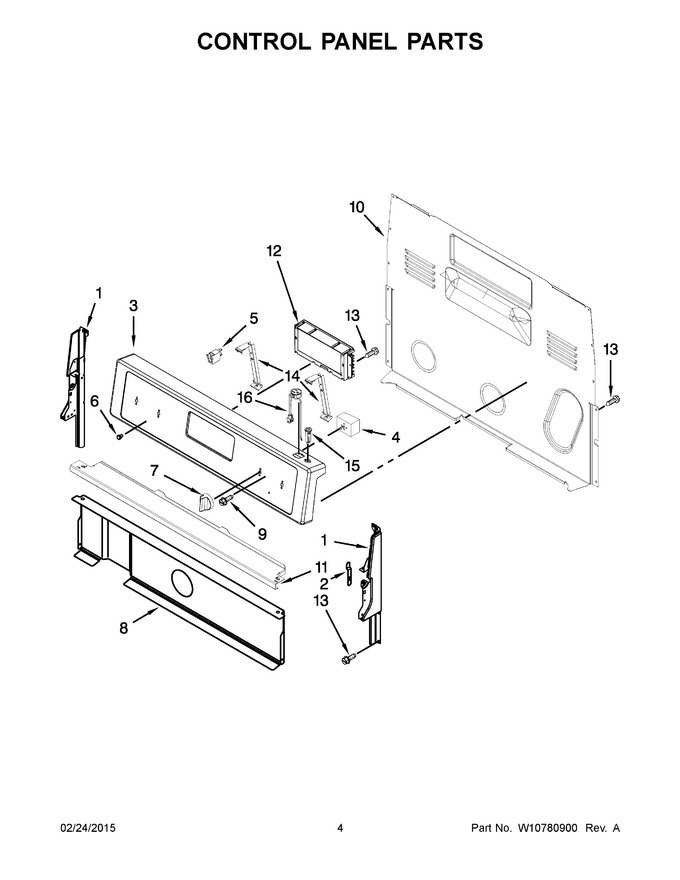

03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219365 | Endcap (white) (lh) (Replaces: W10184433) |
|
$ 38.21 | |||||
| 2 | 3196200 | Clip, Spring |
|
$ 9.41 | |||||
| 3 | W10714870 | Console, Panel (white) |
|
$ 147.76 | |||||
| 4 | WPW10167742 | Switch, Infinite (3000w) (left Front) (Replaces: W10167742) |
|
Immediately | $ 106.38 | ||||
| 5 | WP8523265 | Light, Indicator (125v) (Replaces: 8523265) |
|
Immediately | $ 91.76 | ||||
| 6 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 7 | W10853029 | Knob (white) (Replaces: W10676214) |
|
Immediately | $ 34.44 | ||||
| 8 | W10134247 | Shield, Heat |
|
Immediately | $ 322.94 | ||||
| 9 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 6.80 | ||||
| 10 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 197.14 | |||||
| 11 | W10525121 | Bracket, Console Mounting |
|
$ 88.97 | |||||
| 12 | W10813968 | Control, Range (lcc190) (white) (Replaces: W10734603) |
|
Immediately | $ 435.68 | ||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 14 | W11230932 | Bracket, Control (Replaces: W10695491) |
|
Immediately | $ 76.33 | ||||
| 15 | WP9757601 | Breaker, Circuit (white) (Replaces: 9757601) |
|
Immediately | $ 59.00 | ||||
| 16 | W10849725 | Receptacle, Fused (white) (Replaces: W10488077) |
|
Immediately | $ 100.00 | ||||
| 12A | W10813969 | Control, Range (lcc190) (black) (Replaces: W10734604) |
|
$ 437.30 | |||||
| 12B | W10813967 | Control, Range (lcc190) (stainless) (Replaces: W10734602) |
|
$ 437.21 | |||||
| 15A | WP9757602 | Breaker, Circuit (black) (Replaces: 9757602) |
|
Immediately | $ 54.82 | ||||
| 16A | W10861164 | Receptacle, Fused (black) (Replaces: W10488078) |
|
Immediately | $ 16.62 | ||||
| 1A | W11219370 | Endcap (white) (rh) (Replaces: W10184434) |
|
$ 54.75 | |||||
| 1B | W11219664 | Endcap (black) (lh) (Replaces: W10184437) |
|
Immediately | $ 138.45 | ||||
| 1C | W11219665 | Endcap (black) (rh) (Replaces: W10184438) |
|
Immediately | $ 40.65 | ||||
| 3A | W10714871 | Console, Panel (black) |
|
$ 475.63 | |||||
| 3B | W10714879 | Console, Panel (stainless) |
|
$ 172.76 | |||||
| 4A | 5500-287 | Switch, Infinite (right Front And Left Rear) (Replaces: 3148951) |
|
Immediately | $ 49.03 | ||||
| 4B | 5500-287 | Switch, Infinite (right Rear) (Replaces: 3148953) |
|
Immediately | $ 49.03 | ||||
| 7A | W10836470 | Knob (black) (Replaces: W10676213) |
|
Immediately | $ 34.28 |
