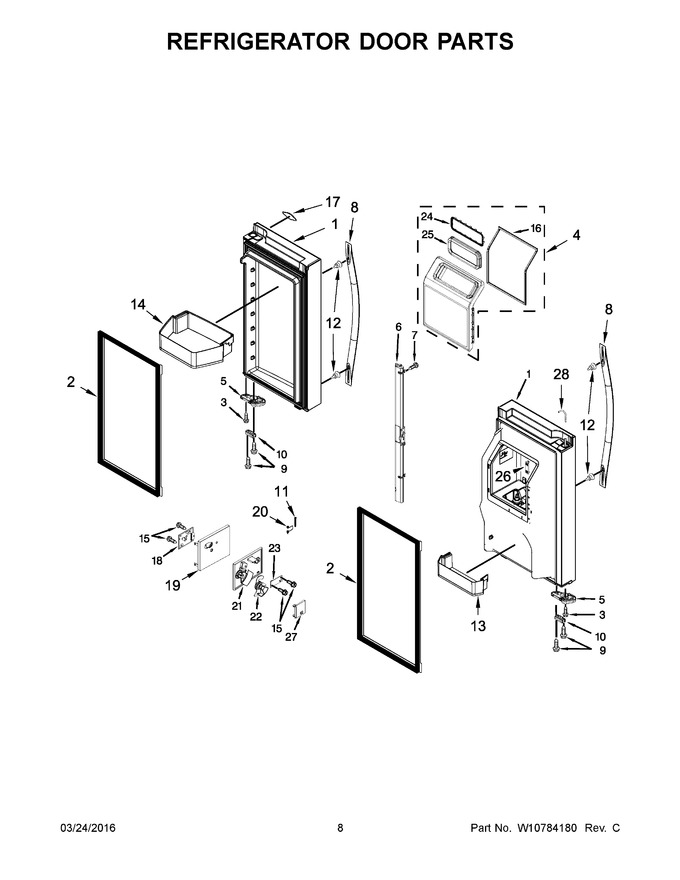

05 - Refrigerator Door Parts


06 - Freezer Door Parts


07 - Unit Parts


08 - Shelf Parts


09 - Dispenser Front Parts


10 - Icemaker And Ice Container Parts


11 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10815691		Door, Refrigerator (includes Item 2) Left Hand (white)   (Replaces: W10634616)		Appelez-nous	-
2	W10638484		Gasket, Door (white)   (Replaces: W10686119)				$ 335.84
3	WPW10464016		Screw   (Replaces: W10464016)				$ 12.94
4	WPW10549589		Door, Ice   (Replaces: W10549589)				$ 372.28
5	W10904595		Latch, Door Closer (left Hand)   (Replaces: W10712952)				$ 18.04
6	W10733650		Mullion, Door (white)				$ 149.19
7	W11311945		Screw   (Replaces: 12990204)				$ 14.72
8	W10883202		Handle, Door (stainless)   (Replaces: W10806905)				$ 103.64
9	WP98165		Screw   (Replaces: 12990504)				$ 8.57
10	W11687672		Bumper, Door (white)   (Replaces: W10407175)				$ 14.93
11	WP2198634		Pin, Door   (Replaces: 2198634)				$ 18.65
12	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 12.88
13	W10728186		Trivet, 2 Liter		Appelez-nous	-
14	W10728195		Bucket, Gallon		Appelez-nous	-
15	2006254		Screw   (Replaces: 489214)				$ 13.79
16	W11624997		Gasket, Ice Door   (Replaces: W10347085)				$ 69.41
17	WPW10393265		Badge (grey)   (Replaces: W10393265)			Immediately	$ 73.15
18	W11813704		Board, Receiver Circuit   (Replaces: W10518658)			Immediately	$ 328.97
19	W11763407		Cover, Receiver   (Replaces: W10258510)				$ 44.50
20	WP2198635		Spring, Door   (Replaces: 2198635)				$ 91.43
21	W10258502		Cover, Emitter				$ 89.74
22	W10258540		Slide, Icemaker Shut Off				$ 11.15
23	W10870822		Board, Emitter Circuit   (Replaces: W10832970)			Immediately	$ 222.54
24	WPW10400825		Retainer, Ice Chute   (Replaces: W10400825)				$ 32.32
25	WPW10347087		Gasket, Ice Chute   (Replaces: W10347087)				$ 48.97
26	W11684620		Vent, Thermistor   (Replaces: W10646855)			Immediately	$ 23.16
27	WPW10258520		Door, Emitter   (Replaces: W10258520)				$ 79.65
28	W11126260		Tube, Water   (Replaces: W10663692)				$ 126.44
10A	W10407187		Bumper, Door (black)				$ 48.34
10B	W11573367		Bumper, Door (grey)   (Replaces: W10407188)			Immediately	$ 23.35
1A	W10815690		Door, Refrigerator (includes Item 2) Left Hand (black)   (Replaces: W10634617)		Appelez-nous	-
1B	W10815692		Door, Refrigerator (includes Item 2) Left Hand (stainless)   (Replaces: W10634615)			Immediately	$ 1,730.60
1C	W10634622		Door, Refrigerator (includes Item 2) Right Hand (white)		Appelez-nous	-
1D	W10634623		Door, Refrigerator (includes Item 2) Right Hand (black)		Appelez-nous	-
1E	W10634620		Door, Refrigerator (includes Item 2) Right Hand (stainless)		Appelez-nous	-
2A	W11544658		Gasket, Door (black)   (Replaces: W10686120)			Immediately	$ 268.78
2B	W10846057		Gasket, Door (grey)   (Replaces: W10686118)			Immediately	$ 353.06
5A	W11212164		Latch, Door Closer (right Hand)   (Replaces: W10712953)				$ 17.59
6A	W10733651		Mullion, Door (black)		Appelez-nous	-
6B	W11122876		Mullion, Door (grey)   (Replaces: W10733652)				$ 191.35
