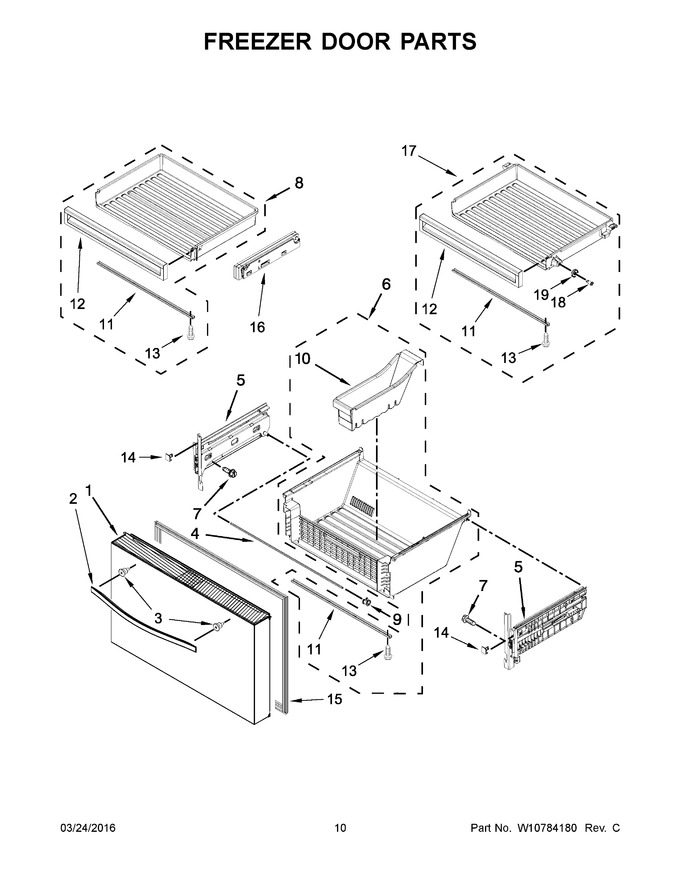

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10815697		Door, Freezer (includes Item 15) (white)   (Replaces: W10634628)				$ 822.29
2	W10883202		Handle, Door (stainless)   (Replaces: W10806905)				$ 93.28
3	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 11.59
4	WPW10503522		Shaft   (Replaces: W10503522)				$ 88.29
5	W11668671		Assembly, Bracket (left Hand)   (Replaces: W10625067)			Immediately	$ 476.13
6	W10680631		Bin, Lower				$ 125.25
7	WP67006908		Screw   (Replaces: 12990518)			Immediately	$ 7.90
8	WPW10493169		Bin, Upper   (Replaces: W10493169)			Immediately	$ 135.62
9	W10852685		Clip, Shaft   (Replaces: W10709748)				$ 10.25
10	W10507444		Divider, Lower				$ 55.93
11	W11677723		Support, Pan   (Replaces: W10469177)			Immediately	$ 139.59
12	W11175811		Front, Freezer Pan   (Replaces: W10488124)				$ 295.57
13	WP489443		Screw (stainless)   (Replaces: 489443)			Immediately	$ 7.50
14	WPW10485096		Stop, Pan (left Hand)   (Replaces: W10485096)				$ 75.29
15	W10638486		Gasket, Door (white)   (Replaces: W10587578)				$ 303.30
16	W10850332		Assembly, Upper Pan Adapter (left Hand)   (Replaces: W10619219)				$ 127.43
17	W10858802		Assembly, Center Pan   (Replaces: W10704091)			Immediately	$ 272.21
18	W11573594		Axle, Roller   (Replaces: W10643690)				$ 17.23
19	W11578839		Roller, Pan   (Replaces: W10248555)				$ 13.46
14A	WPW10485089		Stop, Pan (right Hand)   (Replaces: W10485089)				$ 78.04
15A	W10407215		Gasket, Door (black)   (Replaces: W10248748)				$ 286.19
15B	W10407216		Gasket, Door (grey)   (Replaces: W10248749)			Immediately	$ 255.75
16A	W10858092		Assembly, Upper Pan Adapter (right Hand)   (Replaces: W10619218)				$ 138.70
1A	W10815696		Door, Freezer (includes Item 15) (black)   (Replaces: W10634629)		Appelez-nous	-
1B	W10815698		Door, Freezer (includes Item 15) (stainless)   (Replaces: W10634627)				$ 959.21
5A	W11668671		Assembly, Bracket (right Hand)   (Replaces: W10625068)			Immediately	$ 476.13
