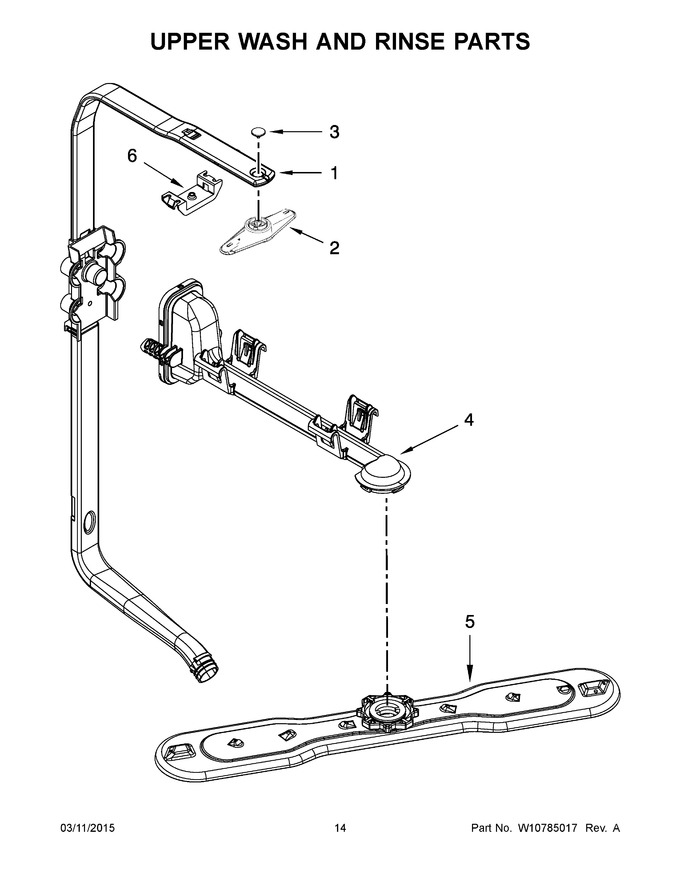

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10340745 | Feed Tube Assembly (includes Items 2 & 3) (Replaces: W10340745) |
|
Immediately | $ 81.35 | ||||
| 2 | WPW10327455 | Sprayarm, Third Level (Replaces: W10327455) |
|
Immediately | $ 59.83 | ||||
| 3 | WP3400918 | Retainer (Replaces: 3400918) |
|
Immediately | $ 32.74 | ||||
| 4 | WPW10571949 | Manifold (Replaces: W10571949) |
|
Immediately | $ 77.27 | ||||
| 5 | WPW10605345 | Sprayarm, Upper (Replaces: W10605345) |
|
Immediately | $ 81.37 | ||||
| 6 | W10837623 | Bracket, Feed Tube (Replaces: W10195690) |
|
Immediately | $ 29.25 |
