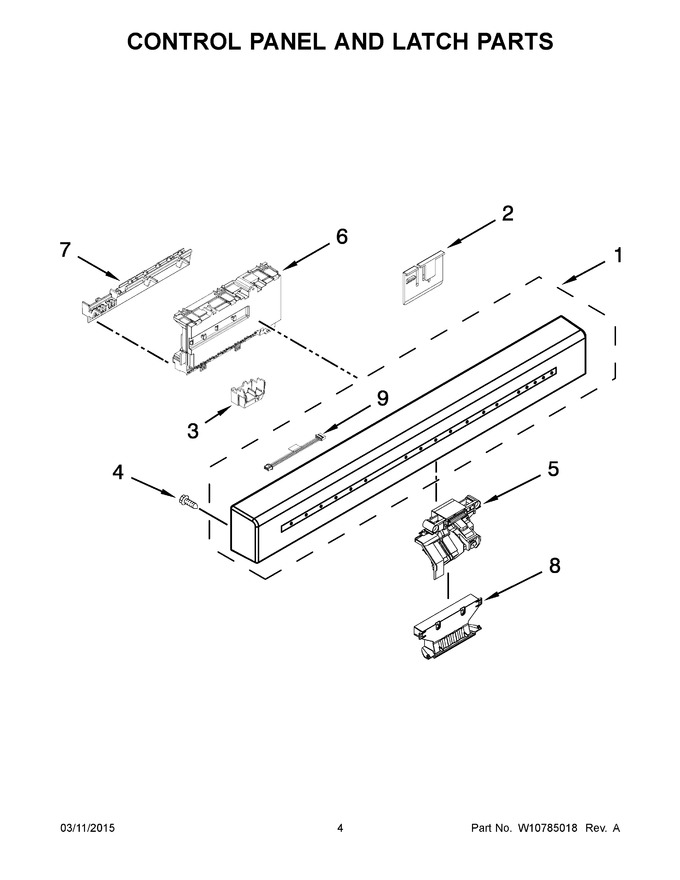

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10537349 | Console Assembly (black) (Replaces: W10537349) |
|
$ 406.37 | |||||
| 2 | W11256107 | Clip, Control (Replaces: W10195237) |
|
$ 23.27 | |||||
| 3 | WPW10462393 | Box, Connector (Replaces: W10462393) |
|
$ 8.56 | |||||
| 4 | WPW10348408 | Screw (Replaces: W10348408) |
|
Immediately | $ 7.55 | ||||
| 5 | WPW10653840 | Latch Assembly (includes Switch) (Replaces: W10653840) |
|
Immediately | $ 34.18 | ||||
| 6 | W10866116 | Control, Electronic (Replaces: W10538039) |
|
Immediately | $ 272.64 | ||||
| 7 | WPW10462395 | Brace, Connector (Replaces: W10462395) |
|
$ 21.65 | |||||
| 8 | W10537379 | Handle (black) |
|
$ 27.52 | |||||
| 9 | W10528492 | Jumper, 4 Wire |
|
$ 30.11 | |||||
| 1A | WPW10537350 | Console Assembly (white) (Replaces: W10537350) |
|
$ 398.45 | |||||
| 1B | WPW10537352 | Console Assembly (stainless) (Replaces: W10537352) |
|
$ 345.18 | |||||
| 8A | W10537379 | Handle (white) (Replaces: W10537380) |
|
$ 27.52 | |||||
| 8B | W10537379 | Handle (grey) (Replaces: W10537382) |
|
$ 27.52 |
