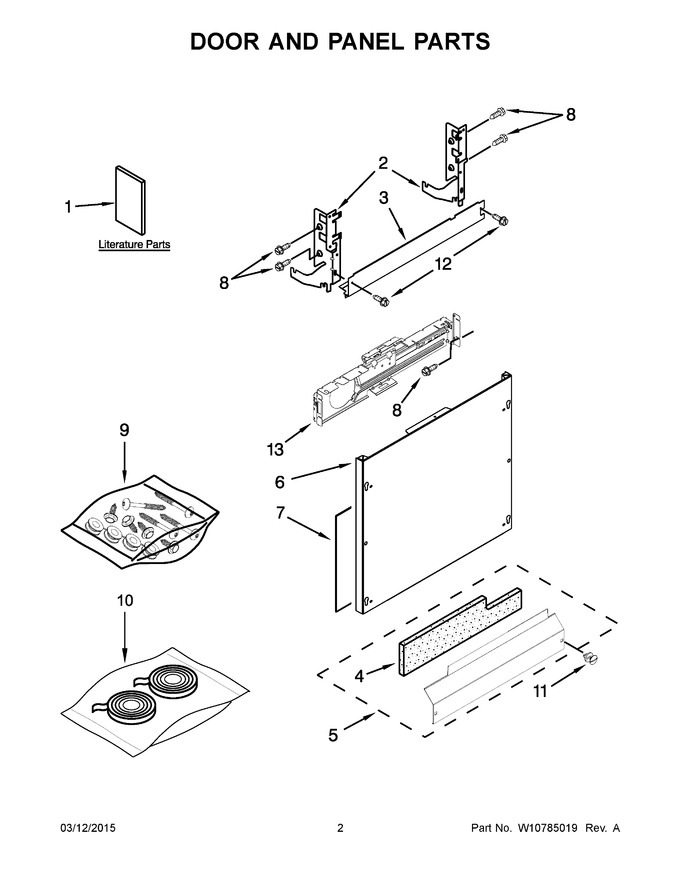

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10741197		Installation Instructions		Appelez-nous	-
2	W11806565		Arm, Hinge (left Hand)   (Replaces: 8534854)			Immediately	$ 142.39
3	W10850371		Barrier, Vapor   (Replaces: W10321448)			Immediately	$ 32.88
4	W10831329		Insulation, Toe Panel   (Replaces: W10073540)			Immediately	$ 43.30
5	W10827631		Access Panel (black)   (Replaces: W10369024)			Immediately	$ 195.64
6	W11113792		Panel Front (ready)   (Replaces: W10292632)			Immediately	$ 373.42
7	W10234565		Insulation, Front Panel				$ 69.57
8	WP3400071		Screw   (Replaces: 3400071)				$ 8.26
9	WPW10637074		Hardware, Custom Panel   (Replaces: W10195008)			Immediately	$ 75.05
10	WPW10366978		Seal, Panel Ready   (Replaces: W10366978)			Immediately	$ 29.80
11	WPW10503548		Fastener (black)   (Replaces: W10503548)			Immediately	$ 30.39
12	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
13	WPW10350242		Bracket, Control   (Replaces: W10350242)				$ 88.32
1A	W10579103		Energy Guide		Appelez-nous	-
1B	W10579120		Use & Care Guide		Appelez-nous	-
1C	W10543820		Tech Sheet, English		Appelez-nous	-
1D	W10543821		Tech Sheet, French		Appelez-nous	-
1E	W10195005		Template, 6" Custom Panel		Appelez-nous	-
2A	W11806608		Arm, Hinge (right Hand)   (Replaces: 8534853)			Immediately	$ 142.24
