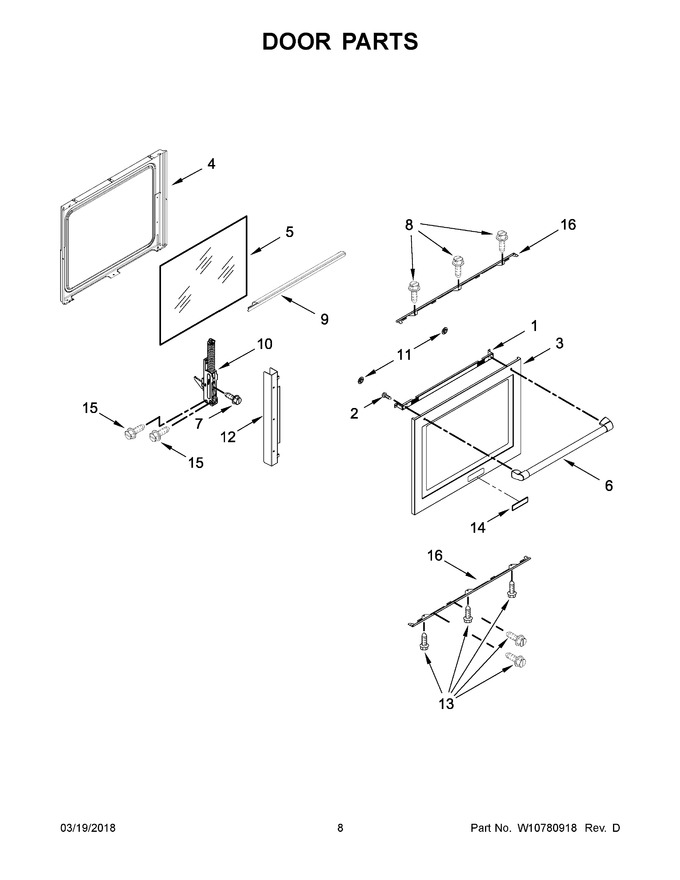

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10541911 | Bracket, Glass Upper Handle |
|
Immediately | $ 39.92 | ||||
| 2 | WP8533988 | Screw (Replaces: 8533988) |
|
Immediately | $ 8.78 | ||||
| 3 | W10634272 | Assembly, Outer Door (black) |
|
- | |||||
| 4 | W10541882 | Liner, Door |
|
$ 177.73 | |||||
| 5 | WPW10541888 | Glass, Inner (Replaces: W10541888) |
|
$ 384.65 | |||||
| 6 | W11104399 | Assembly, Door Handle (stainless) (Replaces: W10551000) |
|
$ 237.48 | |||||
| 7 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 8.26 | ||||
| 8 | W11245710 | Screw (Replaces: 9780274) |
|
Immediately | $ 14.75 | ||||
| 9 | W11251351 | Scoop, Door (black) (Replaces: W10613791) |
|
Immediately | $ 139.67 | ||||
| 10 | WPW10440013 | Hinge, Door (active) (Replaces: W10388635) |
|
Immediately | $ 63.80 | ||||
| 11 | W11676355 | Washer, Door (Replaces: W10319024) |
|
Immediately | $ 14.81 | ||||
| 12 | W10541883 | Hinge, Support Rail |
|
$ 44.90 | |||||
| 13 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 8.74 | ||||
| 14 | W10909682 | Badge (Replaces: W10518672) |
|
Immediately | $ 76.20 | ||||
| 15 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 8.80 | ||||
| 16 | W10541885 | Support, Glass |
|
$ 36.93 | |||||
| 3A | WPW10634273 | Assembly, Outer Door (white) (Replaces: W10634273) |
|
$ 585.10 | |||||
| 3B | WPW10634271 | Assembly, Outer Door (stainless) (Replaces: W10634271) |
|
$ 436.96 | |||||
| 9A | W10613790 | Scoop, Door (white) |
|
$ 139.56 | |||||
| 9B | W11025120 | Scoop, Door (stainless) (Replaces: W10551024) |
|
$ 123.01 |
