SELECT A DIAGRAM

01 - Cover Sheet


02 - Freezer Door


03 - Refrigerator Door


04 - Cabinet


05 - Shelves


06 - Controls


07 - System


08 - Ice & Water Dispenser


09 - Ice Container


10 - Ice Maker


11 - Wiring Schematic


12 - Wiring Diagram

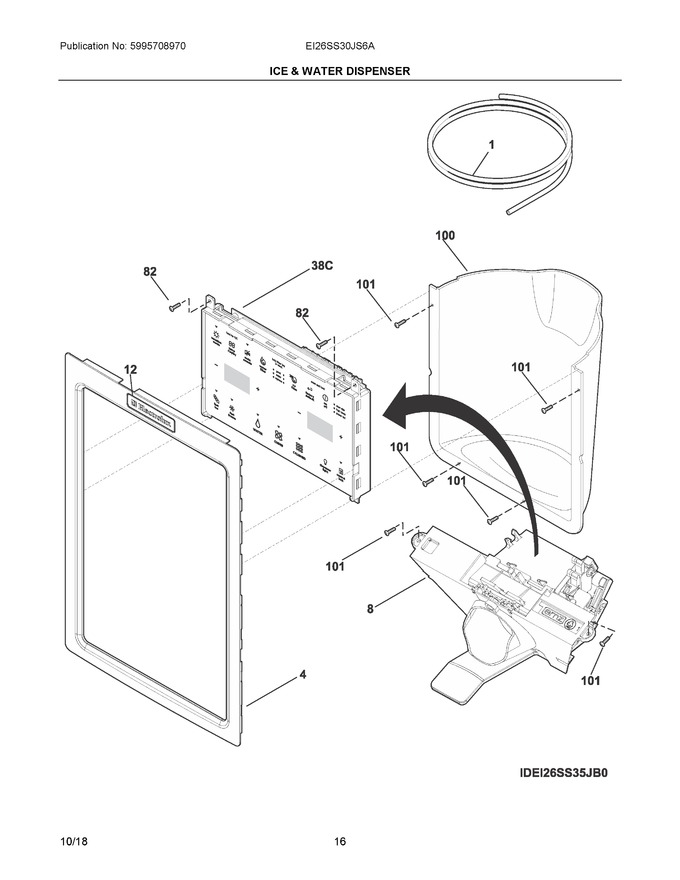

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218976438		Tube, Water, 62", Natural 62", Door, Btm Door To Dsp			Immediately	$ 22.84
2	242091203		Switch-membrane				$ 270.48
4	241893101		Cover-module, Stainless-look   (Replaces: 241757501)				$ 78.61
8	242100018		Module-dispenser   (Replaces: 242100001)			Immediately	$ 283.50
12	241873301		Nameplate, Electrolux, Stainless				$ 12.39
82	240363403		Screw, 8-18 X 0.500, 2		Appelez-nous	-
100	241753301		Liner-sump, Light Gray				$ 206.25
101	5304453707		Screw, Plask, #8-18 X .500   (Replaces: 240363402)			Immediately	$ 17.69
1A	218976409		Tube, Water, 60", Natural, Door			Immediately	$ 66.94
38C	242102805		Board-control, Assembly				$ 412.23
NI	241834702		Harness-wiring, Door		Appelez-nous	-
NIB	218976419		Tube-water Inlet, 5/16 - 34", Yellow, Valve To Door				$ 25.20
NIC	218976420		Tube-water Inlet, Inlet Valve, To Filter				$ 49.61
NID	241850615		Tube-water Inlet, Inlet Valve, To I/m Inlet   (Replaces: 218976915)				$ 38.59
NIE	240561701		Seal-water Inlet, Inlet Valve, To Ice Maker   (Replaces: 240561703)			Immediately	$ 22.84

    View Diagram in Separate Window       Print Part List
