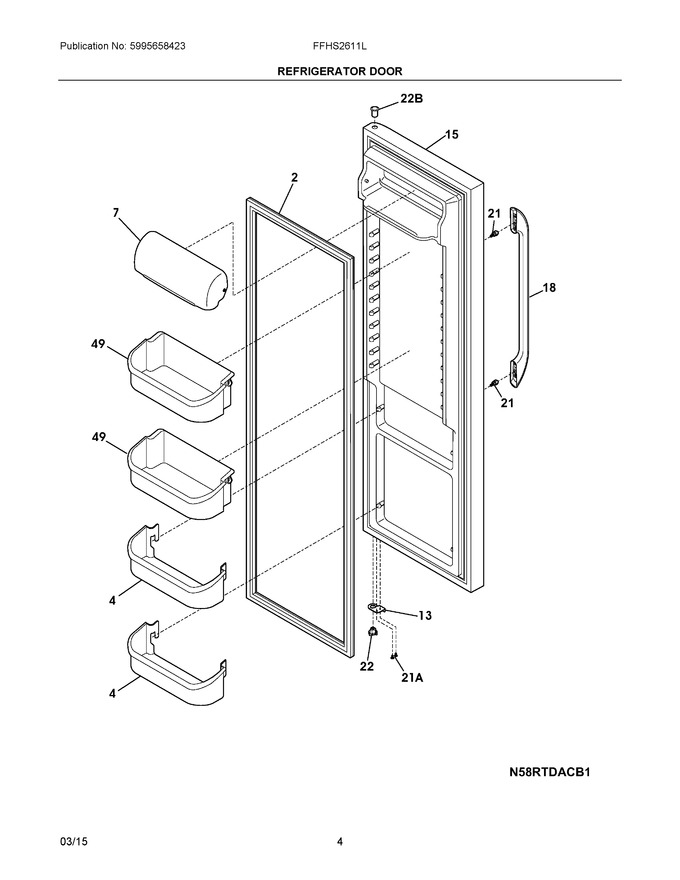

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241786013		Gasket-refr Door, White, Magnetic   (Replaces: 241786001)			Immediately	$ 106.55
4	240323001		Bin-door, Pseudo, Bottom			Immediately	$ 47.57
7	240326203		Door-dairy				$ 40.37
13	240581901		Door Stop, White, Refr				$ 48.83
15	242038810		Door-refr, White, Complete Assy		Appelez-nous	-
18	242059101		Handle-door, White				$ 139.88
21	241695904		Screw				$ 16.01
22	242015301		Bearing-hinge(ref), Natural, Closer				$ 12.71
49	240356401		Bin-door, Gallon			Immediately	$ 95.15
21A	240442708		Screw-#10-32 X 3/4, Zinc   (Replaces: 240442706)				$ 9.27
22C	240328402		Bearing-hinge, Natural, Upper				$ 22.05
