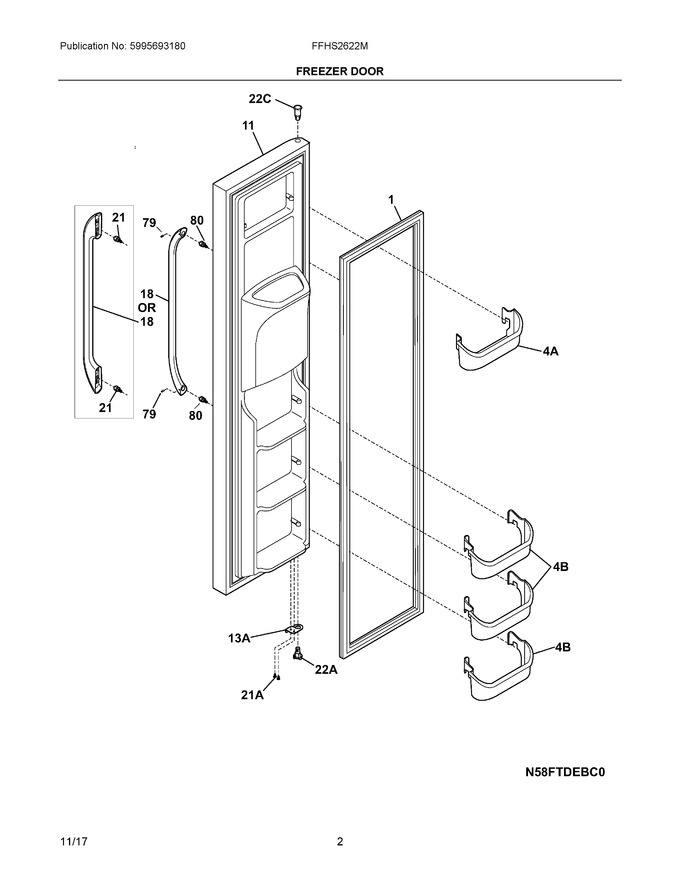

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 241786014 | Gasket-frzr Door, White, Magnetic (Replaces: 241786002) |
|
$ 105.74 | |||||
| 11 | 242026490 | Door-frzr, White, Complete Assy |
|
- | |||||
| 18 | 242059103 | Handle-door, White |
|
$ 129.78 | |||||
| 21 | 241695904 | Screw, Type Ab, #10-16 X .5 |
|
$ 16.01 | |||||
| 79 | 218755402 | Screw-set, 10-32 X .500 In |
|
Immediately | $ 36.67 | ||||
| 13A | 241942604 | Door Stop, Black, Frzr |
|
$ 22.84 | |||||
| 21A | 240442708 | Screw-#10-32 X 3/4, Zinc (Replaces: 240442706) |
|
$ 9.27 | |||||
| 22A | 241990302 | Bearing-hinge(frz), Closer |
|
$ 7.88 | |||||
| 22C | 241760401 | Bearing, Hinge, Top |
|
Immediately | $ 21.26 | ||||
| 4A | 240334201 | Bin-door, Frzr-upper |
|
$ 74.68 | |||||
| 4B | 240351601 | Bin-door |
|
Immediately | $ 65.26 | ||||
| NI | 241806601 | Connector-water, Straight, 5/16 To 5/16 (Replaces: 242103001) |
|
Immediately | $ 78.40 |
