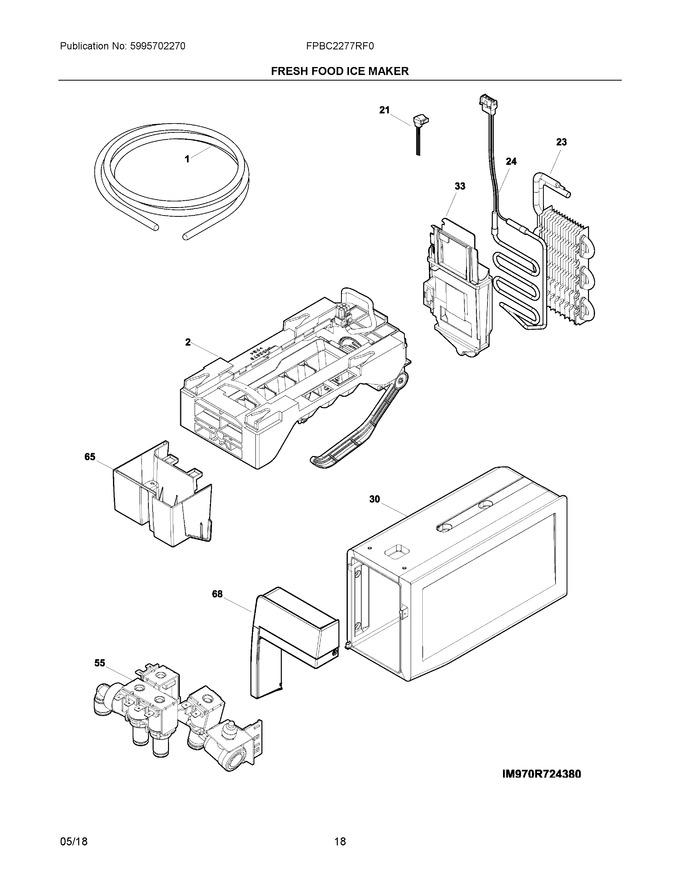

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976435 | Tube-water Inlet, 5/16 - 59", Yellow, Cd |
|
$ 22.84 | |||||
| 2 | 243297613 | Ice Maker, Complete, 115 V (Replaces: 243297606) |
|
Immediately | $ 130.73 | ||||
| 21 | 5303918568 | Thermostat-defrost, Defrost, Icemaker Evap |
|
$ 101.59 | |||||
| 23 | 242094603 | Evaporator, Ice Maker |
|
$ 153.41 | |||||
| 24 | 242094802 | Heater-defrost |
|
Immediately | $ 126.58 | ||||
| 30 | 242100402 | Housing Assembly, Ice Maker, Complete |
|
$ 166.16 | |||||
| 33 | 242094401 | Housing-evaporator |
|
$ 6.39 | |||||
| 55 | 242253002 | Valve-water, Quad Solenoid |
|
Immediately | $ 271.94 | ||||
| 65 | 808462601 | Cover, Wiring |
|
Immediately | $ 40.95 | ||||
| 68 | 242095002 | Cover, -front, Bucket Trim |
|
$ 105.36 | |||||
| NI | 241806601 | Connector-water, Straight, 5/16 To 5/16 (Replaces: 242103001) |
|
Immediately | $ 78.40 | ||||
| NI | 240396801 | Clamp, Tube/wiring, Nylon, Black/natural |
|
$ 21.26 | |||||
| NI | 241503901 | Connector-water, Straight, 5/16 To 1/4 |
|
$ 56.91 | |||||
| NIA | 5303918571 | Tube-water, Ice Mold Fill, Black, Extension (Replaces: 241844403) |
|
$ 182.49 | |||||
| NIA | 242096001 | Insulation, I/container Frt |
|
$ 21.91 | |||||
| NIA | 242095402 | Gasket-evap Housing, .250x.250x3.300 |
|
- | |||||
| NIA | 218709101 | Screw, Hex Head, 10-32 X 0.500 |
|
$ 7.09 | |||||
| NIB | 240363602 | Screw-shoulder |
|
$ 15.17 | |||||
| NIB | 241920106 | Tube-water, Assembly, 5/16 - 54", Green, Ice Maker Fill, W/extension (Replaces: 241920104) |
|
Immediately | $ 67.41 | ||||
| NIB | 242095403 | Gasket-evap Housing, .250x.250x7.750 |
|
- | |||||
| NIC | 5303918784 | Gasket-evap Housing, .250x.250x5.250 (Replaces: 242095404) |
|
Immediately | $ 136.39 | ||||
| NIC | 241964707 | Tube-water, 1/4 - 36", Green |
|
Immediately | $ 20.48 | ||||
| NID | 241965906 | Tube-water, 5/16 - 67", Natural |
|
Immediately | $ 26.78 | ||||
| NID | 242095405 | Gasket-evap Housing, .250x.250x6.600 |
|
- | |||||
| NIE | 242095408 | Gasket-evap Housing, .250x1.00x6.600 |
|
- | |||||
| NIE | 242220119 | Tube-water, .75 X 97.5", Natural |
|
Immediately | $ 33.86 | ||||
| NIF | 242220204 | Tube-water Inlet, .315 - 93.50", Natural |
|
Immediately | $ 44.80 |
