01 - Cover Sheet
02 - Door
03 - Cabinet
04 - Shelves
05 - System
06 - Wiring Schematic
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:

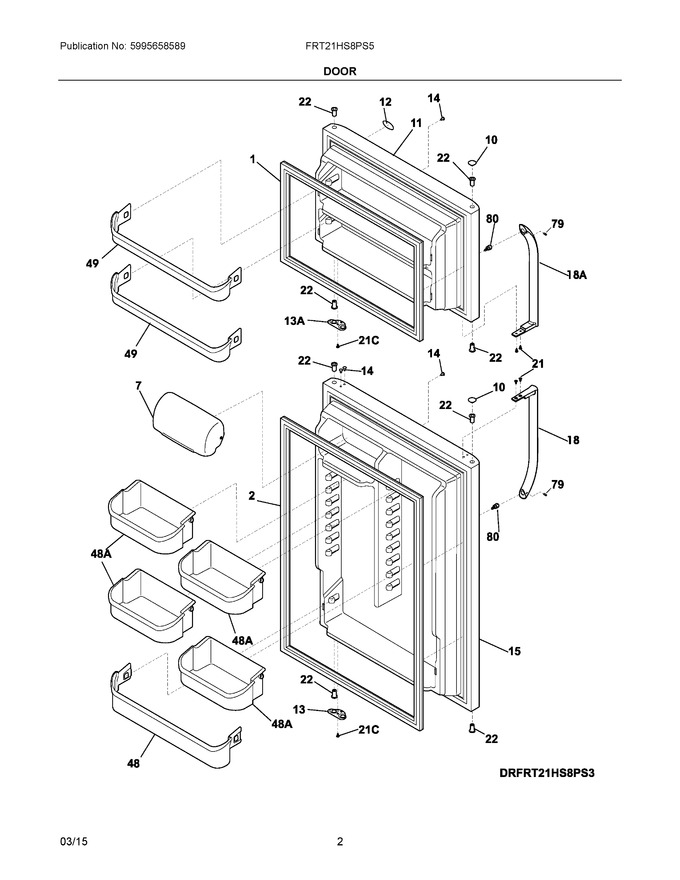

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 242193211 | Gasket-frzr Door (black) Magnetic |
|
$ 207.90 | |||||
| 2 | 242193214 | Gasket-ref Door (black) Magnetic |
|
$ 212.06 | |||||
| 7 | 240338313 | Door, Dairy (clear) (Replaces: 240338303) |
|
Immediately | $ 89.78 | ||||
| 10 | 240381307 | Plug-button (silver Mist) Hinge Brg Hole (Replaces: 240381306) |
|
Immediately | $ 18.54 | ||||
| 11 | 242178015 | Door-frzr (stainless) Complete Assy |
|
$ 563.96 | |||||
| 12 | 242016301 | Nameplate (frigidaire) |
|
$ 4.73 | |||||
| 13 | 240312422 | Door Stop (black) Refr (Replaces: 240312405) |
|
$ 16.85 | |||||
| 14 | 240494006 | Plug-button (silver Mist) |
|
$ 19.69 | |||||
| 15 | 242178120 | Door-refr (stainless) Complete Assy |
|
$ 294.23 | |||||
| 18 | 242075501 | Handle-door (stainless) Refr-rh/frzr-lh (Replaces: 242075202) |
|
$ 259.53 | |||||
| 22 | 215774918 | Plug-button, Black, Upr Hinge Holes |
|
$ 10.95 | |||||
| 48 | 240338101 | Bin-door |
|
Immediately | $ 58.19 | ||||
| 49 | 240495804 | Bin-door, Pseudo, Frzr |
|
Immediately | $ 48.10 | ||||
| 79 | 218755402 | Screw-set, 10-32 X .500 In |
|
Immediately | $ 36.67 | ||||
| 80 | 218755504 | Screw, Shoulder, #10-ab, Handle Mounting |
|
Immediately | $ 20.67 | ||||
| 13A | 240312415 | Door Stop (black) Frzr |
|
$ 23.63 | |||||
| 18A | 242075501 | Handle-door (stainless) Refr-lh/frzr-rh (Replaces: 242075201) |
|
$ 259.53 | |||||
| 21C | 218252201 | Screw, #8 Truss Hd, 10-32ca X 0.500 |
|
Immediately | $ 15.75 | ||||
| 48A | 241808201 | Bin-door, Gallon (Replaces: 240338202) |
|
Immediately | $ 88.86 | ||||
| NIA | 241601001 | Wrench, Allen |
|
- |
