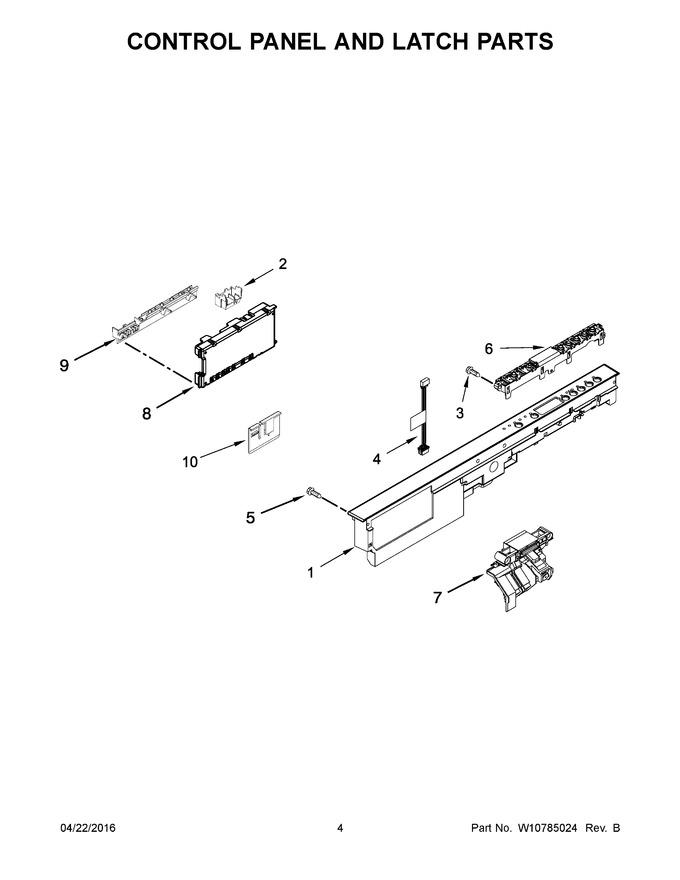

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10785274 | Console Assembly (black) (Replaces: W10708646) |
|
$ 257.99 | |||||
| 2 | W10783730 | Box, Connector (Replaces: W10756253) |
|
$ 31.41 | |||||
| 3 | WPW10177098 | Screw (Replaces: W10177098) |
|
Immediately | $ 8.02 | ||||
| 4 | W11028004 | Jumper, 4-wire (Replaces: W10566903) |
|
$ 22.37 | |||||
| 5 | W11232015 | Screw (Replaces: W10648588) |
|
Immediately | $ 14.73 | ||||
| 6 | W10732150 | Housing Assembly, User Interface |
|
$ 323.48 | |||||
| 7 | WPW10653840 | Latch Assembly (includes Switch) (Replaces: W10574864) |
|
Immediately | $ 34.18 | ||||
| 8 | W10751502 | Control, Electronic (Replaces: W10722550) |
|
$ 191.58 | |||||
| 9 | WPW10194937 | Brace, Connector (Replaces: W10194937) |
|
$ 30.56 | |||||
| 10 | W11256107 | Clip, Control (Replaces: W10195237) |
|
$ 23.27 | |||||
| 1A | W10785276 | Console Assembly (white) (Replaces: W10708647) |
|
$ 256.35 |
