SELECT A DIAGRAM

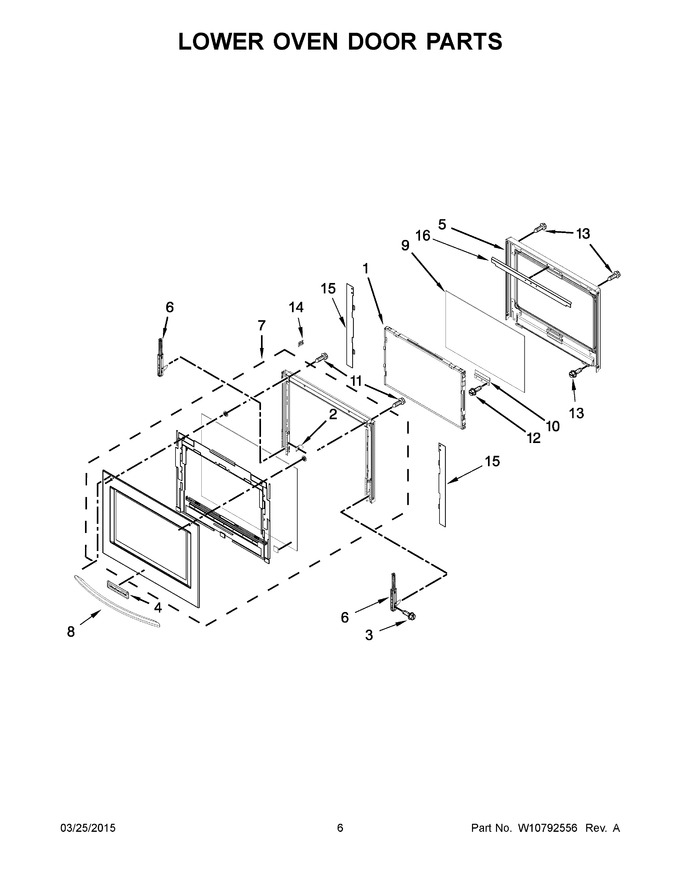

01 - Cover Sheet


02 - Control Panel Parts


03 - Oven Parts


04 - Lower Oven Door Parts


05 - Upper Oven Door Parts


06 - Internal Oven Parts


07 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10347596		Assembly, Window Pack   (Replaces: W10347596)			Immediately	$ 323.05
2	W10812024		Spring, Door Glass Fixation   (Replaces: W10284285)				$ 165.76
3	WP3196183		Screw   (Replaces: 3196183)			Immediately	$ 8.18
4	WPW10243391		Badge (grey)   (Replaces: W10243391)				$ 58.31
5	WPW10709147		Assembly, Liner   (Replaces: W10709147)				$ 366.69
6	W10825778		Hinge, Door   (Replaces: W10639069)			Immediately	$ 112.85
7	W11354870		Assembly, Door (stainless)   (Replaces: W10615236)			Immediately	$ 963.14
8	WPW10289076		Handle, Door (stainless)   (Replaces: W10289076)				$ 334.61
9	WPW10618107		Glass, Inner   (Replaces: W10618107)				$ 247.71
10	W10853628		Bracket, Glass   (Replaces: W10284297)				$ 163.86
11	W10831019		Screw   (Replaces: W10480830)			Immediately	$ 8.27
12	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
13	WP98008545		Screw (black)   (Replaces: 7101P633-60)				$ 18.60
14	W11025615		Clip, Spring Metal   (Replaces: W10653954)			Immediately	$ 176.14
15	W10687815		Extension, Side Rail (left)				$ 71.68
16	W10669415		Shield, Door Liner				$ 69.55
15A	W10687814		Extension, Side Rail (right)				$ 71.68

    View Diagram in Separate Window       Print Part List
