SELECT A DIAGRAM

01 - Cover Sheet

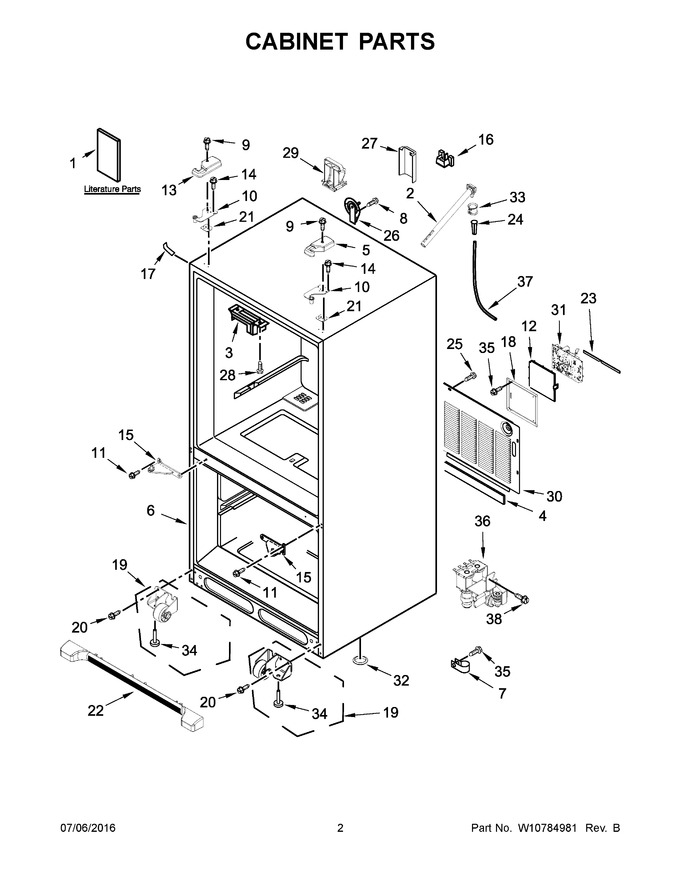

02 - Cabinet Parts


03 - Refrigerator Liner Parts


04 - Freezer Liner And Icemaker Parts


05 - Refrigerator Door Parts


06 - Freezer Door Parts


07 - Unit Parts


08 - Shelf Parts


09 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10544193		Tech Sheet		Appelez-nous	-
2	W11176463		Elbow, Fill Tube   (Replaces: 10463203)			Immediately	$ 119.86
3	WP67003405		Plate, Pivot   (Replaces: 12698403)			Immediately	$ 8.21
4	B5759655		Gasket				$ 13.03
5	67005958		Cover, Right Hinge (white)   (Replaces: 12962302W)				$ 21.57
6	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
7	W11456069		Clamp, Tube   (Replaces: M0108107)			Immediately	$ 22.40
8	WP98165		Screw   (Replaces: 12990504)				$ 8.57
9	WP8281196		Screw   (Replaces: 12992602)			Immediately	$ 7.55
10	W11592375		Hinge, Top (left Hand)   (Replaces: 12963204ED)				$ 31.92
11	W11573362		Screw (stainless)   (Replaces: W10673840)				$ 14.72
12	W11226688		Lid, Hv Control Box   (Replaces: W10296541)				$ 85.16
13	WPW10337634		Cover, Left Hinge (white)   (Replaces: 12962301W)			Immediately	$ 23.54
14	WP489349		Screw   (Replaces: 12992403)			Immediately	$ 8.43
15	W10918113		Hinge, Center (left) (white)   (Replaces: 13000001WD)				$ 97.92
16	W11686793		Block, Fill Tube   (Replaces: W10658542)				$ 23.57
17	12587703W		Cover, Corner (white)				$ 22.90
18	12961602		Cover, Control Box				$ 116.19
19	W11820444		Assembly, Roller (left Hand)   (Replaces: W10515763)			Immediately	$ 37.35
20	67006564		Screw   (Replaces: W10709365)			Immediately	$ 8.15
21	12999501		Shim, Hinge (left Hand)				$ 99.53
22	WPW10534154		Grille, Toe (white)   (Replaces: W10534154)				$ 153.66
23	12957801SP		Gasket, Hv Box		Appelez-nous	-
24	WPA3223101		Insert, Tube   (Replaces: A3223101)			Immediately	$ 8.21
25	67006425		Screw   (Replaces: 12990511)			Immediately	$ 7.30
26	12726003		Cover, Water Line				$ 19.19
27	W10208593		Guard, Dual Water Valve				$ 15.71
28	W10854958		Screw   (Replaces: 12990302)				$ 7.90
29	W10528513		Sweep, Dual Tube				$ 43.74
30	WPW10211855		Cover, Unit   (Replaces: W10211855)				$ 207.99
31	WPW10317076		Board, Hv Control   (Replaces: W10317076)			Immediately	$ 412.84
32	A3076901		Plug, Button (black)				$ 5.70
33	WPM0114003		Clip, Speed   (Replaces: M0114003)				$ 11.60
34	WPW10141622		Brake, Roller   (Replaces: W10141622)			Immediately	$ 8.24
35	W11686675		Screw   (Replaces: 12990702)				$ 14.27
36	WPW10420083		Valve, Water Inlet   (Replaces: W10420083)			Immediately	$ 159.91
37	W11120581		Tubing, Plastic   (Replaces: B5705333)				$ 124.93
38	WP489128		Screw   (Replaces: 12991604)				$ 11.40
10A	W11592374		Hinge, Top (right Hand)   (Replaces: 12963205ED)			Immediately	$ 31.90
13A	W10337647		Cover, Left Hinge (black)   (Replaces: 12962301B)			Immediately	$ 23.33
13B	WPW10337648		Cover, Left Hinge (grey)   (Replaces: 12962301AP)				$ 23.12
15A	W10918164		Hinge, Center (left) (black)   (Replaces: 13000007ED)				$ 91.53
15B	W10917988		Hinge, Center (left) (grey)   (Replaces: 13000001AP)			Immediately	$ 95.63
15C	13000002WD		Hinge, Center (right) (white)				$ 160.99
15D	W10918164		Hinge, Center (right) (black)   (Replaces: 13000008ED)				$ 91.53
15E	W10917988		Hinge, Center (right) (grey)   (Replaces: 13000002AP)			Immediately	$ 95.63
17A	67003485		Cover, Corner (black)   (Replaces: 12587703B)			Immediately	$ 22.14
17B	WP12587703AP		Cover, Corner (grey)   (Replaces: 12587703AP)				$ 8.07
19A	W11820445		Assembly, Roller (right Hand)   (Replaces: W10515762)			Immediately	$ 37.35
1A	W10635370		Use And Care Guide		Appelez-nous	-
1B	W10739662		Energy Guide		Appelez-nous	-
21A	12999502		Shim, Hinge (right Hand)				$ 100.60
22A	WPW10534153		Grille, Toe (black)   (Replaces: W10534153)				$ 154.57
22B	WPW10534155		Grille, Toe (grey)   (Replaces: W10534155)			Immediately	$ 119.56
5A	WP67005956		Cover, Right Hinge (black)   (Replaces: 12962302B)				$ 22.54
5B	WPW10191117		Cover, Right Hinge (grey)   (Replaces: 12962302AP)				$ 23.05
