SELECT A DIAGRAM

01 - Cover

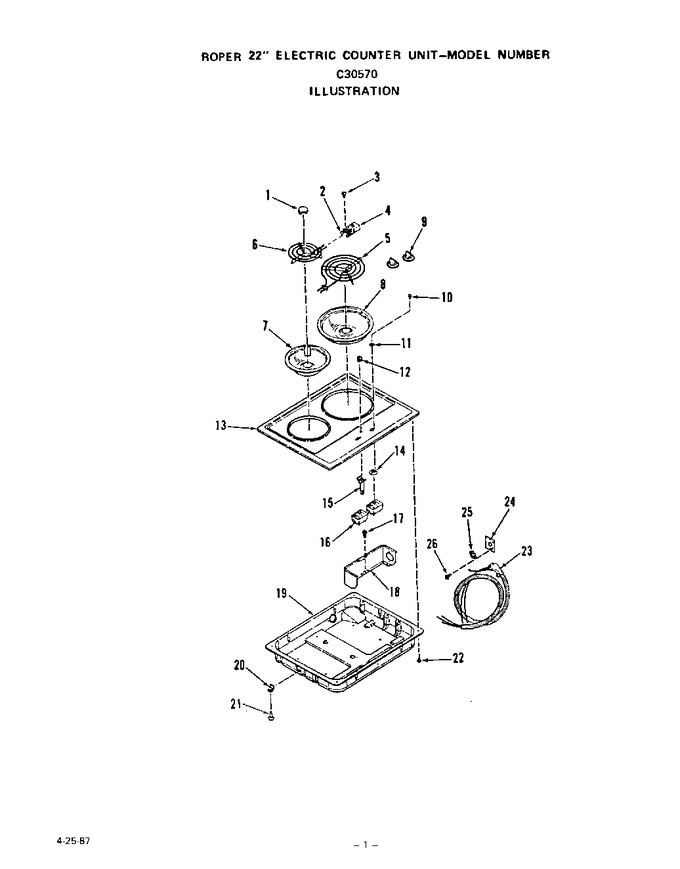

02 - Elec Counter Unit


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318586		Medallion		Appelez-nous	-
2	318872		Bracket-terminal Block		Appelez-nous	-
3	299632		Screw 7-32x5/16``		Appelez-nous	-
4	318871		Terminal Block W/wires		Appelez-nous	-
5	325504		8`` Surface Element		Appelez-nous	-
6	325508		6`` Surface Element		Appelez-nous	-
7	292974		6`` Burner Bowl		Appelez-nous	-
8	292975		8`` Burner Bowl		Appelez-nous	-
9	328201		Infinite Knob		Appelez-nous	-
10	70655		Screw 8-32x1/4``		Appelez-nous	-
11	312604		Washer		Appelez-nous	-
12	233161		Indicator Light Lens		Appelez-nous	-
13	334833		Main Top (chrome)		Appelez-nous	-
13	334834		Main Top (almond)		Appelez-nous	-
14	280157		Control Seal				$ 275.75
15	288814		Indicator Light		Appelez-nous	-
16	5500-200		Infinite Control (right)   (Replaces: 320946)			Immediately	$ 54.85
16	320945		Infinite Control (left)		Appelez-nous	-
17	295850		Screw 10 - 32 X 7/16``		Appelez-nous	-
18	334221		Barrier		Appelez-nous	-
19	334213		Burner Box		Appelez-nous	-
20	334224		Retainer Clip		Appelez-nous	-
21	299271		Screw 10-32x1``		Appelez-nous	-
22	326974		Screw 10abx1/2``		Appelez-nous	-
23	334222		Harness Conduit Asm.		Appelez-nous	-
24	294983		Plate (for Key 23)		Appelez-nous	-
25	110340		Nut (for Key 23)		Appelez-nous	-
26	313191		Screw 10-32x7/16``		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
