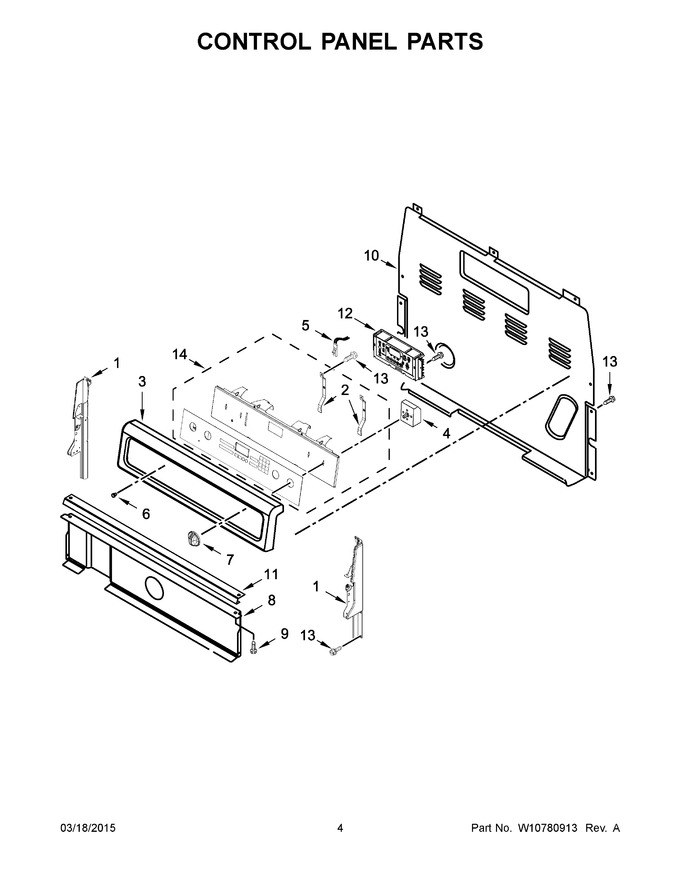

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219664 | Endcap (black (left Hand)) (Replaces: W10184437) |
|
$ 153.83 | |||||
| 2 | W10318546 | Bracket, Control |
|
- | |||||
| 3 | WPW10318550 | Panel, Control (stainless) (Replaces: W10318550) |
|
$ 273.23 | |||||
| 4 | WPW10391743 | Switch, Infinite (left Front) (Replaces: W10391743) |
|
Immediately | $ 123.53 | ||||
| 5 | WP8523265 | Light, Indicator (125v) (Replaces: 8523265) |
|
Immediately | $ 86.31 | ||||
| 6 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 7 | W10720680 | Knob, Infinite (stainless) |
|
- | |||||
| 8 | W10134247 | Shield, Heat |
|
Immediately | $ 358.82 | ||||
| 9 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 10 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 219.04 | |||||
| 11 | W10525121 | Bracket, Console Mounting |
|
$ 98.85 | |||||
| 12 | WPW10705788 | Control, Mrc (Replaces: W10705788) |
|
$ 386.51 | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 14 | W10705602 | Active Overlay Assembly (stainless) |
|
- | |||||
| 1A | W11219665 | Endcap (black (right Hand)) (Replaces: W10184438) |
|
$ 45.17 | |||||
| 4A | WPW10411934 | Switch, Infinite (right Front And Left Rear) (Replaces: W10411934) |
|
Immediately | $ 109.39 | ||||
| 4B | 5500-287 | Switch, Infinite (right Rear) (Replaces: 3148951) |
|
Immediately | $ 52.39 |
