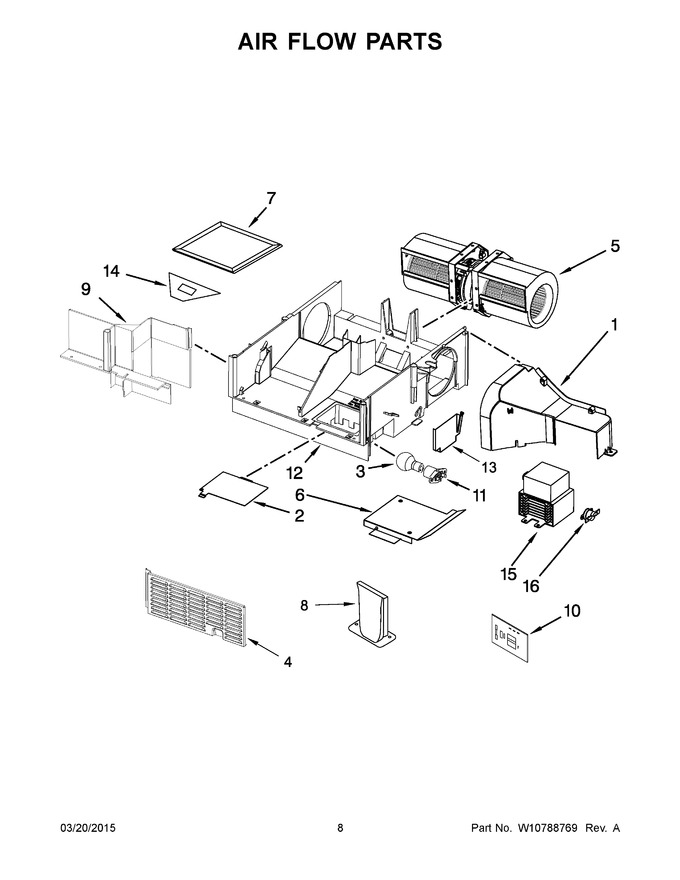

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8206340 | Deflector, Air |
|
$ 146.24 | |||||
| 2 | 8206382 | Cover, Lamp |
|
$ 9.17 | |||||
| 3 | 8206232A | Lamp, Cavity 30 Watt (Replaces: 4393681) |
|
Immediately | $ 7.71 | ||||
| 4 | W10342991 | Shield, Finger |
|
$ 169.83 | |||||
| 5 | W11441128 | Motor, Hood Fan Blower (Replaces: W10755866) |
|
Immediately | $ 222.23 | ||||
| 6 | W10138797 | Guide, Air |
|
$ 95.20 | |||||
| 7 | 8206230A | Filter, Charcoal (Replaces: 8206230) |
|
Immediately | $ 20.21 | ||||
| 8 | W11381953 | Plate, Waterproof (Replaces: W10269467) |
|
- | |||||
| 9 | W10448769 | Plate, Air Guide Sealing |
|
- | |||||
| 10 | W10422269 | Filter, Noise |
|
Immediately | $ 33.79 | ||||
| 11 | WPW10210878 | Holder, Lamp Cavity (Replaces: W10210878) |
|
Immediately | $ 34.87 | ||||
| 12 | W10448773 | Plate, Air Guide Base |
|
$ 148.07 | |||||
| 13 | W11293488 | Cover, Right Duct (Replaces: W10700156) |
|
$ 84.08 | |||||
| 14 | W10139750 | Socket, Motor Wire |
|
- | |||||
| 15 | W10754299 | Magnetron (Replaces: W10216360) |
|
Immediately | $ 231.21 | ||||
| 16 | W10598693 | Thermostat, Magnetron |
|
$ 65.26 |
