SELECT A DIAGRAM

01 - Cover Sheet


02 - Cabinet Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Shelf Parts


05 - Freezer Liner Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Air Flow Parts


09 - Control Box Parts


10 - Unit Parts


11 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10428790		Refrigerator Door (includes Door Gasket) (white)		Appelez-nous	-
2	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
3	WP2256101		Door, Compartment   (Replaces: 2256101)			Immediately	$ 89.42
4	WP2309941		Trivet   (Replaces: 2309941)			Immediately	$ 76.32
5	W11366418		Set Screw (silver)   (Replaces: W10010140)			Immediately	$ 15.79
6	WPW10321304		Bin, Door   (Replaces: W10321304)			Immediately	$ 44.73
7	WP489483		Screw   (Replaces: 489420)				$ 11.41
8	2159073		Gasket, Door (beige)   (Replaces: 2309600)				$ 333.19
9	W10899551		Handle (stainless)   (Replaces: W10713676)			Immediately	$ 188.82
10	WP2182181		Thimble   (Replaces: 2182181)				$ 8.15
11	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 12.88
12	W11253684		Thimble, Cam   (Replaces: W10846216)				$ 13.69
13	W10219801		Bracket, Door Stop (silver)				$ 5.27
14	WPW10511975		Nameplate (white)   (Replaces: W10511975)				$ 80.84
14A	WPW10511972		Nameplate (grey)   (Replaces: W10511972)				$ 79.55
1A	W10750030		Refrigerator Door (includes Door Gasket) (black)		Appelez-nous	-
1B	W10424384		Refrigerator Door (includes Door Gasket) (stainless)		Appelez-nous	-
8A	2159081		Gasket, Door (black)   (Replaces: 2309653)				$ 335.58
8B	W10136732		Gasket, Door (grey)   (Replaces: 2327161)			Immediately	$ 361.20

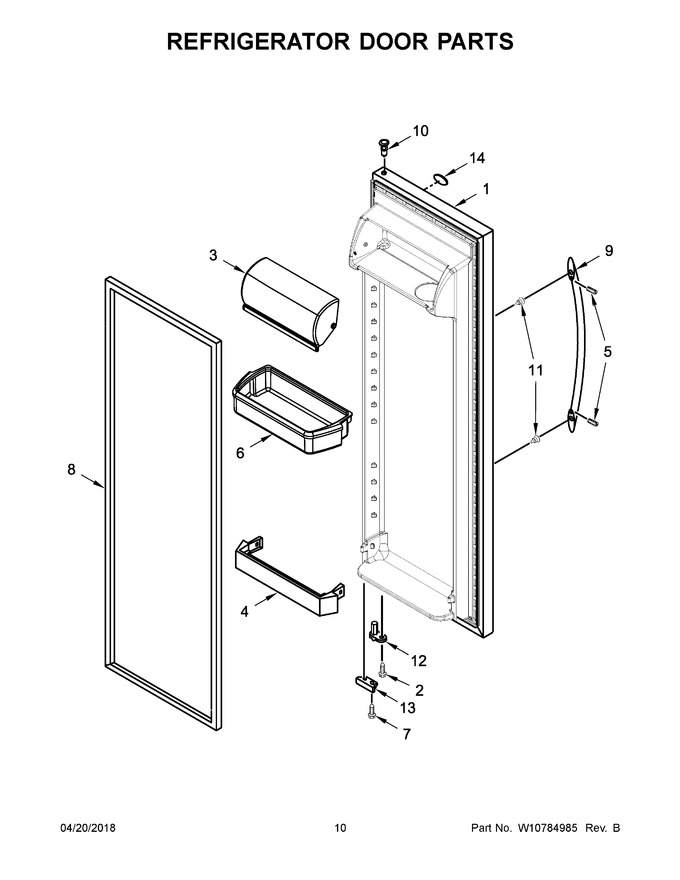

    View Diagram in Separate Window       Print Part List
