01 - Cover Sheet

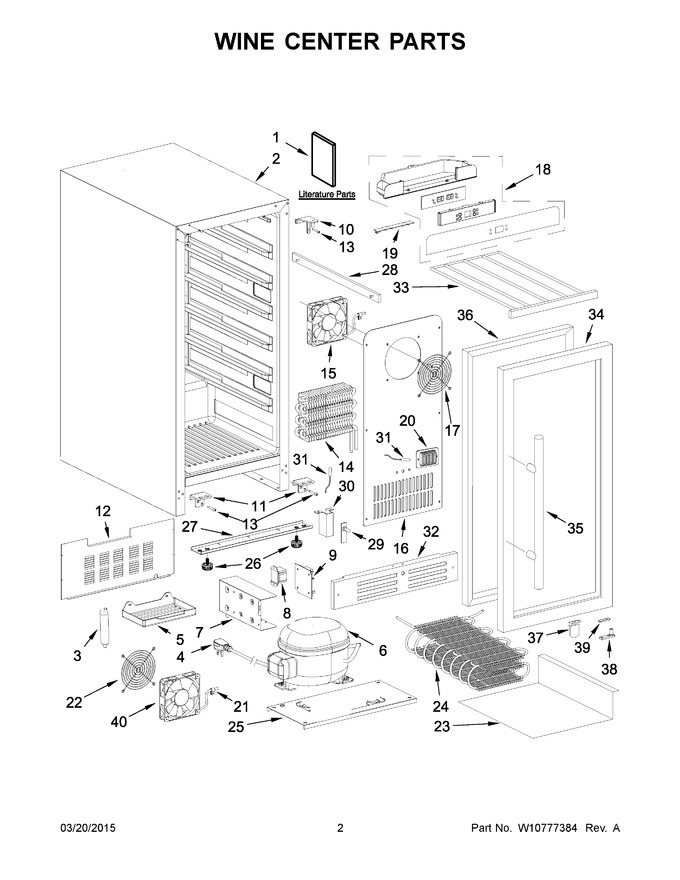

02 - Wine Center Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10739679 | Use & Care Guide |
|
- | |||||
| 2 | N/P | Cabinet (not A Servicable Part) |
|
- | |||||
| 3 | W10782175 | Drier Filter |
|
Immediately | $ 29.61 | ||||
| 4 | W10782176 | Power Cord |
|
- | |||||
| 5 | W10782273 | Water Tray |
|
- | |||||
| 6 | W11726397 | Compressor (Replaces: W10782274) |
|
$ 769.99 | |||||
| 7 | W10782278 | Cover, Pcb |
|
- | |||||
| 8 | W10782189 | Transformer |
|
$ 323.76 | |||||
| 9 | W11484599 | Main Pcb (Replaces: W10784189) |
|
$ 434.73 | |||||
| 10 | W10782193 | Hinge, Upper Right |
|
$ 76.87 | |||||
| 11 | W10782271 | Hinge, Lower Right |
|
- | |||||
| 12 | W10782292 | Cover, Rear |
|
- | |||||
| 13 | W10782261 | Screw |
|
- | |||||
| 14 | W10782280 | Evaporator |
|
$ 292.43 | |||||
| 15 | W10792631 | Fan Motor (with Blade) |
|
$ 259.47 | |||||
| 16 | W10782281 | Cover, Fan |
|
- | |||||
| 17 | W10782263 | Grille, Fan |
|
- | |||||
| 18 | W10792632 | Control Panel Assembly |
|
- | |||||
| 19 | W10782293 | Led Light |
|
- | |||||
| 20 | W10782222 | Cover, Sensor |
|
- | |||||
| 21 | W10782291 | Wire, Fan |
|
$ 85.88 | |||||
| 22 | W10782255 | Cover, Condenser Fan |
|
- | |||||
| 23 | W10782284 | Cover, Condenser |
|
- | |||||
| 24 | W10782289 | Condenser |
|
$ 308.43 | |||||
| 25 | W10782290 | Baseplate |
|
- | |||||
| 26 | W10782249 | Leg |
|
Immediately | $ 17.81 | ||||
| 27 | W10782288 | Support, Front |
|
- | |||||
| 28 | W10782256 | Slide, Rail |
|
- | |||||
| 29 | W10782243 | Switch |
|
- | |||||
| 30 | W10782242 | Support, Switch |
|
- | |||||
| 31 | W10782220 | Sensor |
|
$ 128.08 | |||||
| 32 | W10782296 | Grille |
|
$ 118.39 | |||||
| 33 | W10792633 | Rack Assembly |
|
- | |||||
| 34 | W11431133 | Door Assembly (Replaces: W10782294) |
|
$ 810.80 | |||||
| 35 | W10782266 | Handle |
|
$ 249.32 | |||||
| 36 | W10782286 | Gasket, Door |
|
$ 324.36 | |||||
| 37 | W10782267 | Plate, Switch |
|
Immediately | $ 92.91 | ||||
| 38 | W10782241 | Axis, Door |
|
$ 63.76 | |||||
| 39 | W10792634 | Stop, Door |
|
- | |||||
| 40 | W11678274 | Fan Motor (with Blade) (Replaces: W10782254) |
|
Immediately | $ 312.34 | ||||
| 10A | W10782260 | Hinge, Upper Left |
|
$ 74.27 | |||||
| 11A | W10782272 | Hinge, Lower Left |
|
- | |||||
| 1A | W10792627 | Energy Guide |
|
- | |||||
| NI | W10782275 | Starter |
|
- | |||||
| NI | W10782192 | Pin, Pcb |
|
- | |||||
| NI | W10782277 | Overload Relay |
|
- | |||||
| NI | W10266810 | Aluminum Tape |
|
Immediately | $ 77.08 | ||||
| NI | N/P | Refrigerant Charge 1.59 Oz |
|
- |
