SELECT A DIAGRAM

01 - Cover Sheet

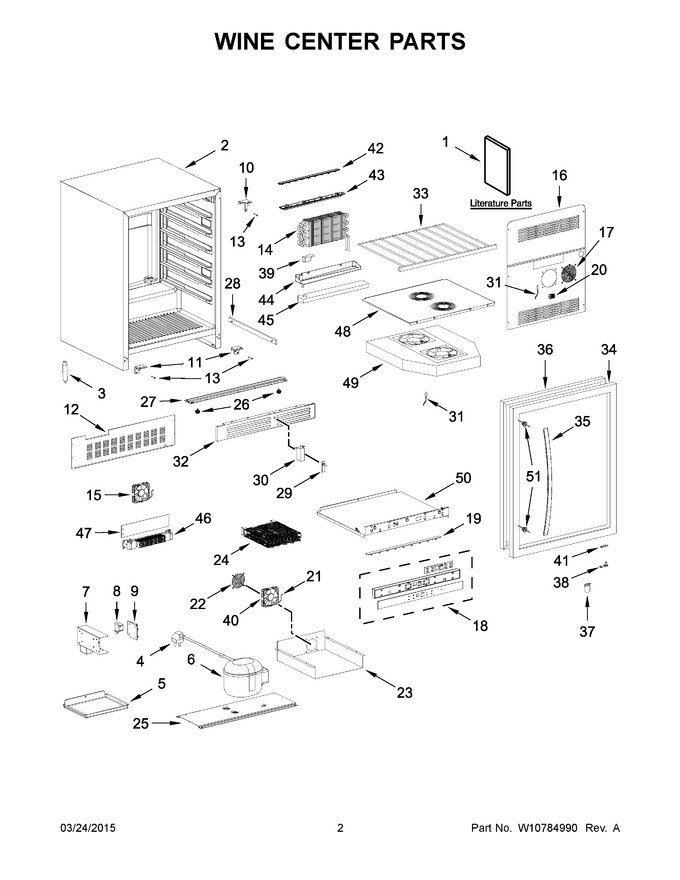

02 - Wine Center Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10739679		Use & Care Guide		Appelez-nous	-
2	N/P		Cabinet (not A Servicable Part)		Appelez-nous	-
3	W10782175		Drier Filter			Immediately	$ 29.61
4	W10782176		Power Cord		Appelez-nous	-
5	W10782177		Water Tray		Appelez-nous	-
6	W11377390		Compressor   (Replaces: W10782178)				$ 575.89
7	W10782188		Cover, Pcb		Appelez-nous	-
8	W10782189		Transformer				$ 323.76
9	WPW10782191		Main Pcb   (Replaces: W10782191)				$ 314.27
10	W10782193		Hinge, Upper Right				$ 76.87
11	W10782246		Hinge, Lower Right		Appelez-nous	-
12	W10782257		Cover, Rear				$ 182.47
13	W10782261		Screw		Appelez-nous	-
14	W10782196		Evaporator				$ 294.86
15	W10782230		Fan Motor (with Blade)			Immediately	$ 266.19
16	W10782231		Cover, Fan		Appelez-nous	-
17	W10782232		Grille, Fan		Appelez-nous	-
18	W10792641		Control Panel Assembly				$ 491.25
19	W10782237		Led Light		Appelez-nous	-
20	W10782222		Cover, Sensor		Appelez-nous	-
21	W10782291		Wire, Fan				$ 85.88
22	W10782255		Cover, Condenser Fan		Appelez-nous	-
23	W10782259		Cover, Condenser		Appelez-nous	-
24	W10782251		Condenser		Appelez-nous	-
25	W10782252		Baseplate		Appelez-nous	-
26	W10782249		Leg			Immediately	$ 17.81
27	W10782247		Support, Front		Appelez-nous	-
28	W10782256		Slide, Rail		Appelez-nous	-
29	W10782243		Switch		Appelez-nous	-
30	W10782242		Support, Switch		Appelez-nous	-
31	W10782220		Sensor				$ 128.08
32	W10782245		Grille		Appelez-nous	-
33	W10792643		Rack Assembly		Appelez-nous	-
34	W10782238		Door Assembly		Appelez-nous	-
35	W10782240		Handle		Appelez-nous	-
36	W10782239		Gasket, Door				$ 266.76
37	W10782244		Plate, Switch		Appelez-nous	-
38	W10782241		Axis, Door				$ 63.76
39	W10782224		Foam		Appelez-nous	-
40	W11678274		Fan Motor (with Blade)   (Replaces: W10782254)			Immediately	$ 312.34
41	W10792634		Stop, Door		Appelez-nous	-
42	W10782194		Led Light		Appelez-nous	-
43	W10782195		Cover, Light		Appelez-nous	-
44	W10782225		Water Tank		Appelez-nous	-
45	W10782226		Foam		Appelez-nous	-
46	W10782227		Heater		Appelez-nous	-
47	W10782229		Plate, Heater		Appelez-nous	-
48	W10782233		Air Duct		Appelez-nous	-
49	W10792631		Fan Assembly				$ 259.47
50	W10782235		Air Duct		Appelez-nous	-
51	W10792640		Stud, Handle		Appelez-nous	-
10A	W10782260		Hinge, Upper Left				$ 74.27
11A	W10782250		Hinge, Lower Left		Appelez-nous	-
1A	W10792630		Energy Guide		Appelez-nous	-
NI	W10792635		Capacitor		Appelez-nous	-
NI	W10782184		Starter		Appelez-nous	-
NI	W10782192		Pin, Pcb		Appelez-nous	-
NI	W10782186		Overload Relay		Appelez-nous	-
NI	W10266810		Aluminum Tape			Immediately	$ 77.08
NI	N/P		Refrigerant Charge 2.65 Oz		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
