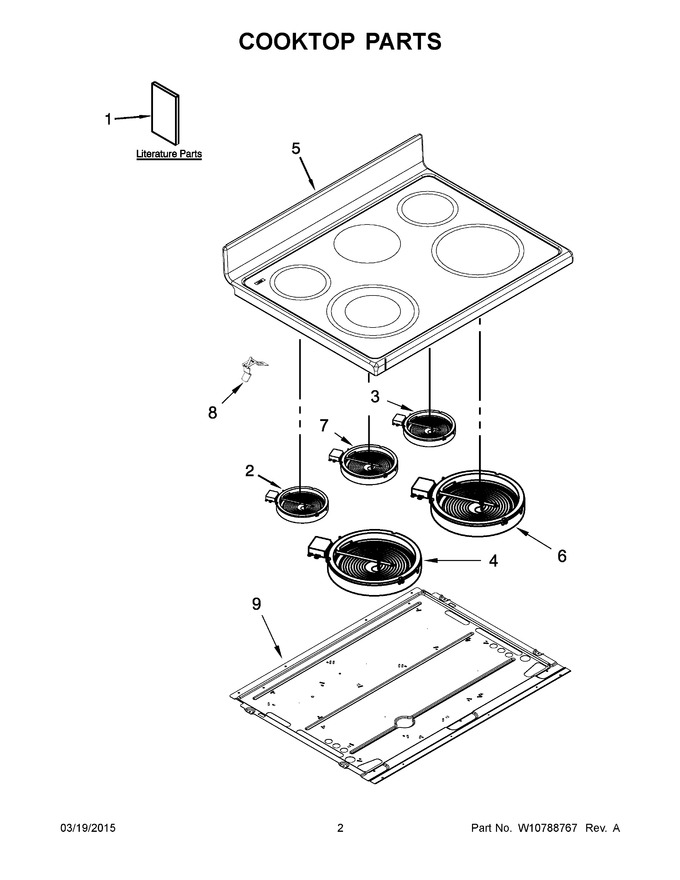

02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Internal Oven Parts


06 - Upper Door Parts


07 - Lower Door Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10722848		Instructions, Installation		Appelez-nous	-
2	WPW10270604		Element (700w) (left Rear)   (Replaces: W10270604)			Immediately	$ 223.48
3	W11171119		Element (1200w) (right Rear)   (Replaces: 8273994)			Immediately	$ 182.23
4	W11517959		Element (3000/1400w) (left Front)   (Replaces: W10275048)			Immediately	$ 134.44
5	W10751460		Cooktop (black)   (Replaces: W10696520)				$ 578.34
6	W11047722		Element (2500w) (right Front)   (Replaces: 8273992)			Immediately	$ 132.46
7	WP9762851		Element, Warm Zone (120v) (center Rear)   (Replaces: 9762851)			Immediately	$ 290.36
8	WPW10225448		Spring, Element   (Replaces: W10225448)			Immediately	$ 10.40
9	WPW10260946		Support, Element   (Replaces: W10260946)				$ 135.10
1A	W10748905		Guide, Use & Care		Appelez-nous	-
1B	W10647745		Sheet, Tech		Appelez-nous	-
1C	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1D	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10721969		Harness, Main				$ 325.86
NI	W11157775		Harness, Eol (mrc)   (Replaces: W10409840)				$ 231.69
NI	W10537938		Harness, Infinite Switch (left)		Appelez-nous	-
NI	W10225693		Harness, Infinite Switch (right)		Appelez-nous	-
NI	W10270316		Harness, Cooktop			Immediately	$ 142.03
NI	W10225701		Harness, Sensor				$ 184.15
NI	WP4159193		Screw, Ground   (Replaces: 7101P027-60)				$ 5.07
NI	8019P013-60		Clip, Wire Lock				$ 15.70
NI	WPW10281322		Block, Bare Wire Adapter   (Replaces: 7401P157-60)				$ 8.87
