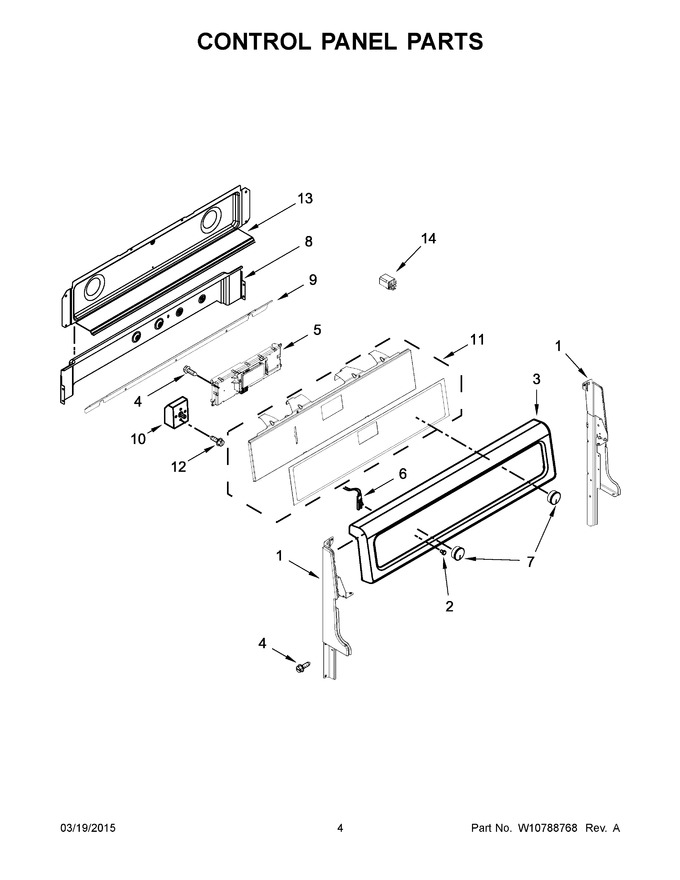

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10319110 | Support, Backguard (white (left)) |
|
$ 95.95 | |||||
| 2 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 3 | WPW10318552 | Console (white) (Replaces: W10318552) |
|
Immediately | $ 282.47 | ||||
| 4 | WP74003976 | Screw (Replaces: 7101P500-60) |
|
$ 7.55 | |||||
| 5 | WPW10778301 | Control, Electronic (Replaces: W10778301) |
|
$ 429.96 | |||||
| 6 | WP74004153 | Light, Indicator (Replaces: 7407P136-60) |
|
Immediately | $ 8.91 | ||||
| 7 | WPW10437088 | Knob (chrome) (Replaces: W10437088) |
|
Immediately | $ 21.78 | ||||
| 8 | W10278697 | Shield, Vent |
|
Immediately | $ 183.33 | ||||
| 9 | WPW10299338 | Shield, Wire Cover (Replaces: W10299338) |
|
$ 96.60 | |||||
| 10 | WP74010824 | Switch, Infinite (left Front & Right Front) (Replaces: 7450P011-60) |
|
Immediately | $ 112.13 | ||||
| 11 | W10528784 | Assembly, Membrane (including Bracket) (white) |
|
$ 294.32 | |||||
| 12 | WP7101P309-60 | Screw (Replaces: 7101P309-60) |
|
Immediately | $ 7.30 | ||||
| 13 | W10776098 | Cover, Backguard |
|
$ 135.81 | |||||
| 14 | W10326400 | Relay (12v) |
|
$ 70.90 | |||||
| 10A | WPW10295048 | Switch, Infinite (left Rear) (Replaces: W10295048) |
|
Immediately | $ 159.95 | ||||
| 10B | WP7403P238-60 | Switch, Infinite (right Rear) (Replaces: 7403P373-60) |
|
Immediately | $ 64.20 | ||||
| 11A | W10528783 | Assembly, Membrane (including Bracket) (black) |
|
$ 361.67 | |||||
| 1A | W10319109 | Support, Backguard (black (left)) |
|
$ 92.84 | |||||
| 1B | W10319112 | Support, Backguard (white (right)) |
|
$ 93.79 | |||||
| 1C | W10319111 | Support, Backguard (black (right)) |
|
$ 43.80 | |||||
| 3A | WPW10318550 | Console (stainless) (Replaces: W10318550) |
|
$ 273.23 |
