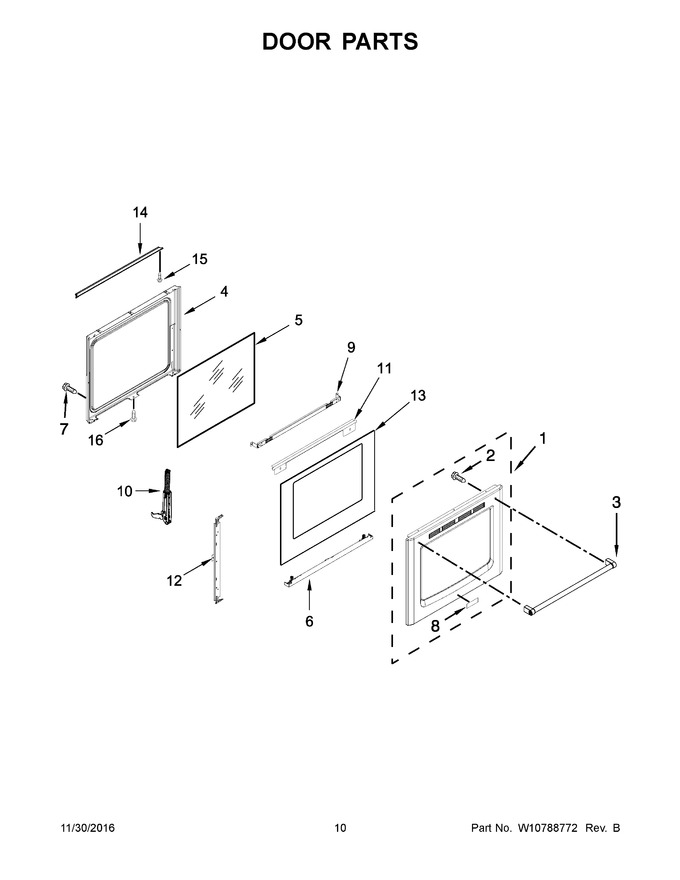

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10906445 | Skin, Door (stainless) (Replaces: W10692526) |
|
$ 513.29 | |||||
| 2 | W10831019 | Screw (Replaces: W10480830) |
|
Immediately | $ 8.27 | ||||
| 3 | W11104399 | Handle, Door (stainless) (Replaces: W10551000) |
|
$ 237.48 | |||||
| 4 | WPW10297318 | Liner, Door (Replaces: W10297318) |
|
Immediately | $ 331.51 | ||||
| 5 | WPW10300487 | Glass, Inner (Replaces: W10300487) |
|
$ 252.42 | |||||
| 6 | WPW10333990 | Support, Glass (white) (Replaces: W10333990) |
|
Immediately | $ 51.90 | ||||
| 7 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 8.74 | ||||
| 8 | W10909682 | Badge (grey) (Replaces: W10518672) |
|
Immediately | $ 76.20 | ||||
| 9 | W10294853 | Bracket, Glass Liner |
|
Immediately | $ 237.04 | ||||
| 10 | WPW10440013 | Hinge, Door (active) (Replaces: W10440013) |
|
Immediately | $ 63.80 | ||||
| 11 | WPW10335331 | Trim, Door (white) (Replaces: W10335331) |
|
Immediately | $ 125.35 | ||||
| 12 | W11116956 | Rail, Door (Replaces: W10294851) |
|
$ 133.75 | |||||
| 13 | WPW10495962 | Glass, Outer Door (white) (Replaces: W10495962) |
|
$ 402.77 | |||||
| 14 | W10675397 | Scoop, Door |
|
$ 141.74 | |||||
| 15 | W11245710 | Screw (Replaces: 9780274) |
|
Immediately | $ 14.75 | ||||
| 16 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 8.80 | ||||
| 11A | W10294855 | Trim, Door (black) |
|
Immediately | $ 119.88 | ||||
| 12A | W10541883 | Hinge, Support Rail (stainless Models) |
|
$ 44.90 | |||||
| 13A | W10804365 | Glass, Outer Door (black) (Replaces: W10665481) |
|
$ 319.50 | |||||
| 13B | W11705267 | Glass, Outer Door (stainless) (Replaces: W10693388) |
|
$ 233.64 | |||||
| 4A | W10541882 | Liner, Door (stainless Models) |
|
$ 177.73 | |||||
| 5A | WPW10541888 | Glass, Inner (stainless Models) (Replaces: W10541888) |
|
$ 384.65 | |||||
| 6A | W10334031 | Support, Glass (black) |
|
$ 77.86 | |||||
| 6B | W10541885 | Support, Glass (stainless) |
|
$ 36.93 | |||||
| 9A | W10541911 | Bracket, Glass Upper Handle (stainless Models) |
|
Immediately | $ 39.92 |
