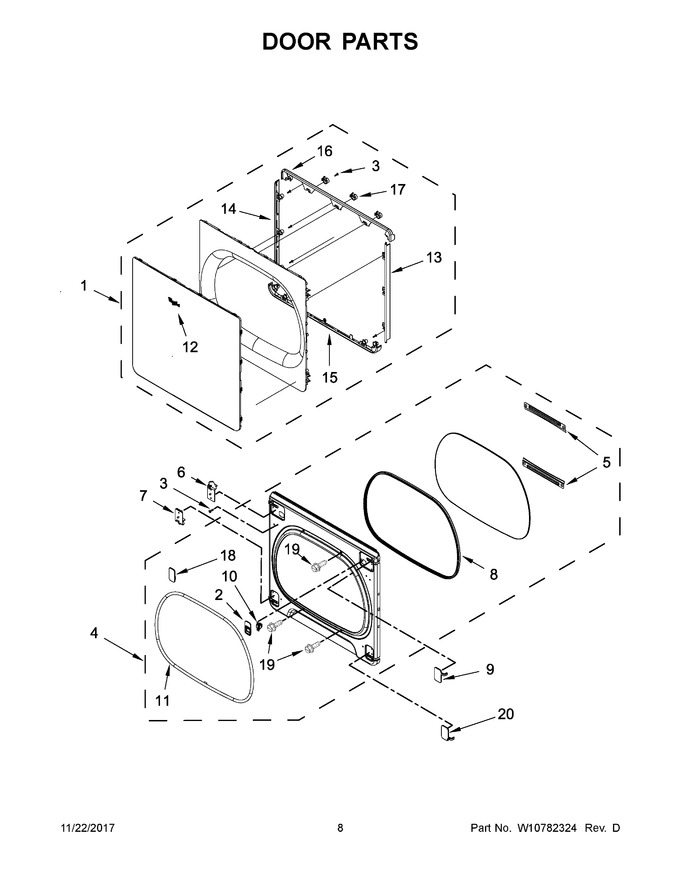

05 - Door Parts
06 - W10608838 Burner Assembly Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10614960 | Door, Outer (chrome Shadow) |
|
Immediately | $ 517.03 | ||||
| 2 | W11103932 | Bezel, Door Catch (white) (Replaces: W10631401) |
|
$ 28.29 | |||||
| 3 | W10850046 | Screw (Replaces: 9742177) |
|
Immediately | $ 7.55 | ||||
| 4 | W10614997 | Assembly, Inner Door (white) |
|
$ 261.85 | |||||
| 5 | W10621182 | Retainer, Window |
|
- | |||||
| 6 | W10850044 | Door, Hinge (upper) (Replaces: W10615001) |
|
$ 85.42 | |||||
| 6 | W10850024 | Hinge Assembly - Blade, Door (upper) (Replaces: W10767920) |
|
$ 85.53 | |||||
| 7 | W10850044 | Hinge Assembly - Blade, Door (lower) (Replaces: W10767921) |
|
$ 85.42 | |||||
| 7 | W10850044 | Door, Hinge (lower) (Replaces: W10615003) |
|
$ 85.42 | |||||
| 8 | W10726214 | Seal, Window |
|
- | |||||
| 8 | W10614998 | Door, Inner (white) |
|
- | |||||
| 9 | W10631395 | Hinge Cover, Top (white) |
|
- | |||||
| 10 | W11429587 | Assembly, Door Catch (Replaces: W10610880) |
|
Immediately | $ 26.55 | ||||
| 11 | W10763835 | Seal, Door |
|
Immediately | $ 129.79 | ||||
| 12 | WPW10393264 | Badge (grey) (Replaces: W10393264) |
|
$ 67.74 | |||||
| 13 | W10614963 | Trim, Hinge Side |
|
- | |||||
| 14 | W10614964 | Trim, Side |
|
- | |||||
| 15 | W10614965 | Trim, Bottom |
|
- | |||||
| 16 | W10614966 | Trim, Top |
|
- | |||||
| 17 | W10614985 | Trim, Top Cap |
|
- | |||||
| 18 | W10631410 | Cover, Door Catch (white) |
|
- | |||||
| 19 | WP488627 | Screw (Replaces: 342055) |
|
$ 8.11 | |||||
| 20 | W10631396 | Hinge Cover, Bottom (white) |
|
- | |||||
| 21 | W10726214 | Seal, Window |
|
- | |||||
| 18A | W10669024 | Cover, Door Catch (chrome Shadow) |
|
$ 25.65 | |||||
| 20A | W10631413 | Hinge Cover, Bottom (chrome Shadow) |
|
- | |||||
| 2A | W10669023 | Bezel, Door Catch (chrome Shadow) |
|
$ 23.64 | |||||
| 4A | W10615000 | Assembly, Inner Door (chrome Shadow) |
|
$ 271.77 | |||||
| 8A | W10614999 | Door, Inner (chrome Shadow) |
|
- | |||||
| 9A | W10631412 | Hinge Cover, Top (chrome Shadow) |
|
$ 25.76 |
