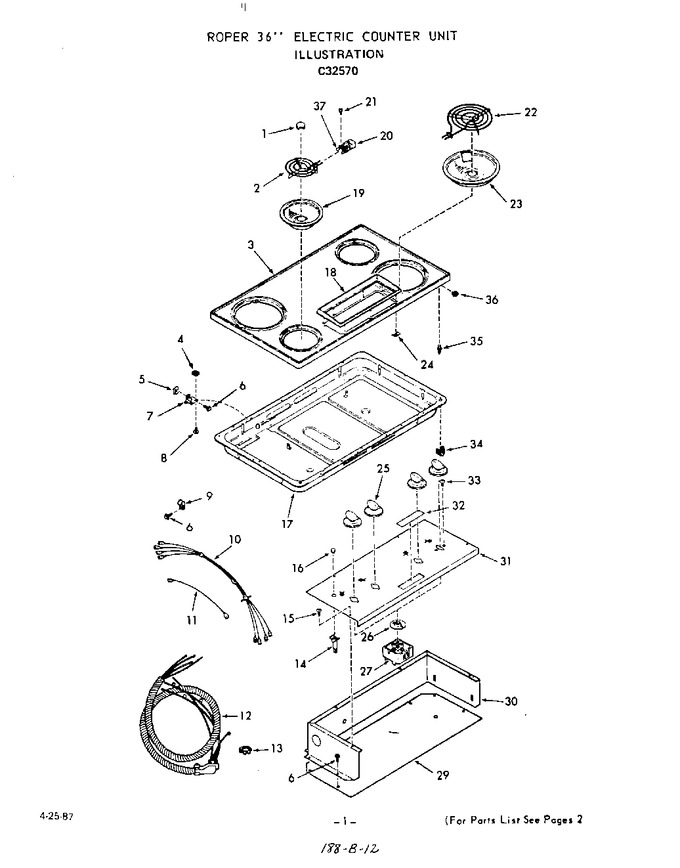

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 319704 | Medallion (4 Req) |
|
- | |||||
| 2 | 319266 | 6`` Surface Element (lt. Frt. Or Rt. Rear) |
|
- | |||||
| 3 | 315673 | Main Top (golden Wheat) |
|
- | |||||
| 3 | 324374 | Main Top (chrome) |
|
- | |||||
| 3 | 330051 | Main Top (toast) |
|
- | |||||
| 3 | 330050 | Main Top (platinum) |
|
- | |||||
| 3 | 315674 | Main Top (almond) |
|
- | |||||
| 3 | 315672 | Main Top (avocado) |
|
- | |||||
| 3 | 315671 | Main Top (coffee) |
|
- | |||||
| 3 | 315670 | Main Top (white) |
|
- | |||||
| 4 | 239764 | Keps Nut 8-32 |
|
- | |||||
| 5 | 24345 | Speed Nut 10-24 |
|
- | |||||
| 6 | 102429 | Screw 10 - 32 X 3/8`` |
|
- | |||||
| 7 | 107969 | Hinge (lt. Or Rt.) |
|
- | |||||
| 8 | 322183 | Screw 8-32x1/4`` |
|
- | |||||
| 9 | 97047 | Clamp (2 Req For Key 10) |
|
- | |||||
| 10 | 318905 | Wire Harness-elements (left) |
|
- | |||||
| 10 | 318906 | Wire Harness-elements (right) |
|
- | |||||
| 11 | 296386 | Wire Lead (indicator Light To All Infinite Controls) |
|
- | |||||
| 11 | 303232 | Wire Lead (indicator Light To All Infinite Controls) |
|
- | |||||
| 11 | 231784 | Wire Lead (ground Wire) |
|
- | |||||
| 12 | 298288 | Conduit & Harness |
|
- | |||||
| 13 | 110340 | Lock Nut |
|
- | |||||
| 14 | 288814 | Indicator Light |
|
- | |||||
| 15 | 78153 | Screw 6-32x5/16`` |
|
- | |||||
| 16 | 233161 | Lens-indicator Light |
|
- | |||||
| 17 | 316339 | Burner Box |
|
- | |||||
| 18 | 278503 | Control Bezel |
|
- | |||||
| 19 | WPW10196406 | 6`` Chrome Bowl-lt., Rt. Rear & Lt. Front (Replaces: 296481) |
|
Immediately | $ 12.05 | ||||
| 20 | 330031 | Terminal Block W/wire Leads (4 Req.) (Replaces: 318960) |
|
Immediately | $ 17.93 | ||||
| 21 | 299632 | Screw 7-32x5/16`` |
|
- | |||||
| 22 | 319268 | 8`` Surface Element (rt. Frt. & Lt. Rear) |
|
- | |||||
| 23 | WPW10196405 | 8`` Burner Bowl (rt. Frt. Or Lt. Rr.) (Replaces: 304969) |
|
Immediately | $ 15.56 | ||||
| 24 | 24710 | Speed Nut |
|
- | |||||
| 25 | 328201 | Knob Controls (all 218860 & 218880 Models) |
|
- | |||||
| 26 | 280157 | Seal-infinite Control (4 Req) |
|
$ 275.75 | |||||
| 27 | 320945 | Infinite Control (lt. Frt. & Rt. Rr.) |
|
- | |||||
| 27 | 5500-200 | Infinite Control (rt. Frt. & Lt. Rr.) (Replaces: 320946) |
|
Immediately | $ 54.85 | ||||
| 29 | 305982 | Shield-controls |
|
- | |||||
| 30 | 311702 | Control Housing |
|
- | |||||
| 31 | 305986 | Controls Mounting Plate |
|
- | |||||
| 32 | 303098 | Roper Name Plate |
|
- | |||||
| 33 | 70655 | Screw 8-32x1/4`` |
|
- | |||||
| 34 | 71003 | Catch (rt. Or Lt.) |
|
- | |||||
| 35 | 299784 | Strike (rt. Or Lt.) |
|
- | |||||
| 36 | 239764 | Keps Nut 8-32 |
|
- | |||||
| 37 | 308104 | Xinstallation & Reference Guide |
|
- | |||||
| 37 | 318872 | Bracket-terminal Block (4 Req) |
|
- | |||||
| 37 | 337383 | Xrepair Parts Manual |
|
- | |||||
| 37 | 309885 | Xoperating Guide |
|
- |
