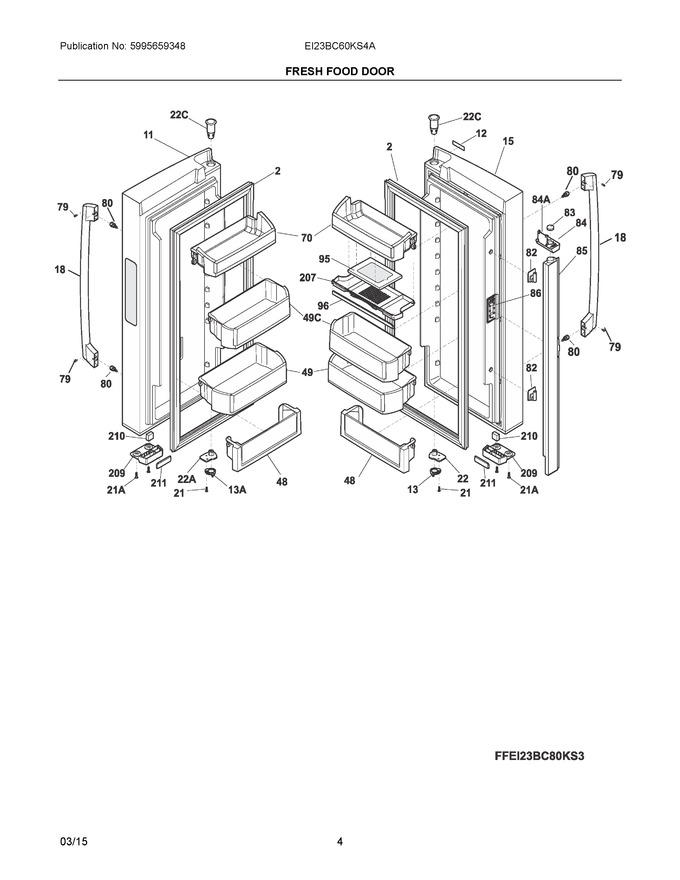

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 241778315 | Gasket-refr Door, Gray, Magnetic (Replaces: 241778307) |
|
Immediately | $ 99.87 | ||||
| 11 | 241988092 | Door-refr, Stainless, Lh |
|
$ 435.38 | |||||
| 12 | 241873301 | Nameplate, Electrolux, Stainless |
|
$ 12.39 | |||||
| 13 | 241868401 | Door Stop, Refrig Rh, Plated |
|
$ 20.48 | |||||
| 15 | 241988091 | Door-refr, Stainless, Rh |
|
$ 448.14 | |||||
| 18 | 241881309 | Handle-door, Stainless |
|
$ 285.13 | |||||
| 21 | 242017501 | Screw, 10-32 X 0.750 |
|
$ 17.33 | |||||
| 22 | 242075601 | Cam, Upper Hinge, Rh |
|
$ 23.31 | |||||
| 48 | 241804303 | Bin-door, Can |
|
$ 103.75 | |||||
| 49 | 241804006 | Bin-door, Gallon |
|
$ 122.90 | |||||
| 70 | 242131801 | Bin-door, 1/2 Gallon |
|
$ 96.69 | |||||
| 79 | 218755401 | Screw-set, 10-32 X 0.375 |
|
Immediately | $ 27.80 | ||||
| 80 | 218755504 | Screw, Shoulder, #10-ab, Handle Mounting |
|
Immediately | $ 20.67 | ||||
| 82 | 241779401 | Hinge-mullion, Upper/lower, Flipper |
|
Immediately | $ 24.43 | ||||
| 83 | 241812202 | Magnet, Door |
|
$ 80.33 | |||||
| 84 | 242190401 | Guide-mullion, Magnet Cover, Flipper |
|
$ 16.70 | |||||
| 85 | 241778811 | Flipper Mullion Assembly, W/heater |
|
Immediately | $ 296.89 | ||||
| 86 | 241779802 | Hinge-mullion, Center, Flipper (Replaces: 241779801) |
|
Immediately | $ 45.83 | ||||
| 95 | EAFCBF | Filter, Air (Replaces: 242047801) |
|
Immediately | $ 30.71 | ||||
| 96 | 242048001 | Trim-door Air Filter, W/graphics |
|
$ 48.88 | |||||
| 207 | 242047901 | Housing-air Filter |
|
$ 89.32 | |||||
| 209 | 242291001 | Housing, Magnet, White |
|
$ 22.75 | |||||
| 210 | 241779101 | Magnet, Door |
|
Immediately | $ 34.65 | ||||
| 211 | 241979601 | Bumper, Rubber, White |
|
$ 25.20 | |||||
| 13A | 241868402 | Door Stop, Refr Lh, Plated |
|
$ 20.48 | |||||
| 21A | 5304453707 | Screw, Quad Hilo, #8-18, (2) (Replaces: 241953901) |
|
Immediately | $ 17.69 | ||||
| 22A | 242075602 | Cam, Upper Hinge, Lh |
|
$ 27.80 | |||||
| 22C | 241760401 | Bearing, Hinge, Top |
|
Immediately | $ 21.26 | ||||
| 49C | 241896103 | Bin-door, 1/2 Gallon |
|
$ 108.52 | |||||
| 84A | 5303918644 | Cover-mullion, Magnet Cover (Replaces: 242190501) |
|
$ 46.04 | |||||
| NI | 242015001 | Screw, 8-18 X 1/2 |
|
Immediately | $ 18.11 | ||||
| NI | 241891104 | Light-led |
|
- | |||||
| NI | 242045401 | Harness-wiring, Door |
|
$ 51.50 | |||||
| NIA | 241601002 | Wrench, Allen |
|
- | |||||
| NIA | 240451503 | Screw (Replaces: 242064001) |
|
$ 4.21 | |||||
| NIB | 241701902 | Screwdriver, Hex, 3/32", Ball Driver |
|
$ 22.05 | |||||
| NIB | 242068601 | Bumper, Flipper Mullion |
|
$ 16.01 | |||||
| NIC | 241788402 | Harness-wiring, Flipper Mullion |
|
- |
