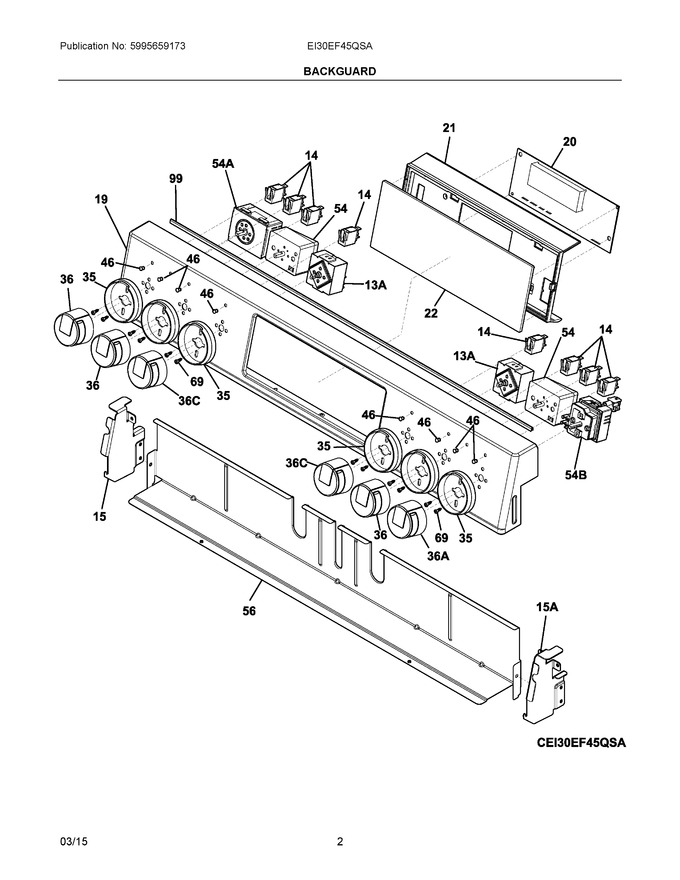

SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


06 - Wiring Diagram


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	316022507		Light/lamp, Indicator, Orange				$ 25.28
15	809124402		Bracket, Support, Lh, Control Panel		Appelez-nous	-
19	809125103		Control Panel, Stainless				$ 577.08
20	316474913		Controller, Electronic				$ 373.85
21	809127301		Bracket Assembly, Plastic, Controller				$ 133.98
22	808770702		Control Panel, Touch, Glass, Black				$ 490.92
35	5304499690		Bezel, Knob		Appelez-nous	-
36	316535718		Knob, Control, Stainless, Single   (Replaces: 316535714)				$ 100.80
46	316557300		Lens-light/lamp, Indicator, Clear			Immediately	$ 18.63
54	316436000		Switch, Infinite, Small Element			Immediately	$ 89.27
56	809124001		Deflector, Control, Front		Appelez-nous	-
69	5304401837		Screw, 8-32 X 5/16		Appelez-nous	-
99	809125001		Gasket, Cooktop, Silicone, Black				$ 19.38
13A	5304508926		Switch, Infinite, Warmer   (Replaces: 316095503)			Immediately	$ 93.53
15A	809124401		Bracket, Support, Rh, Control Panel		Appelez-nous	-
36A	316535717		Knob, Control, Stainless, Triple   (Replaces: 316535713)				$ 97.65
36C	316535716		Knob, Control, Stainless, Warm Zone   (Replaces: 316535712)				$ 120.50
54A	316305100		Switch, Infinite, Turbo Flex				$ 113.31
54B	5304490134		Switch, Infinite, Triple				$ 130.73
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
NI	809127701		Harness, Wiring, Communication				$ 75.56
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
NIA	5304453707		Screw, 8-18 X 1/2			Immediately	$ 17.69
NIA	5304520763		Harness, Wiring, Display   (Replaces: 809127801)				$ 174.04
NIA	5304497164		Wire, Pilot Light, Purple, (3)				$ 10.24
NIB	807286001		Screw, 10-32 X 1/4				$ 12.02
NIB	5304497177		Harness, Wiring, Pilot Light, (2), Jumper		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
