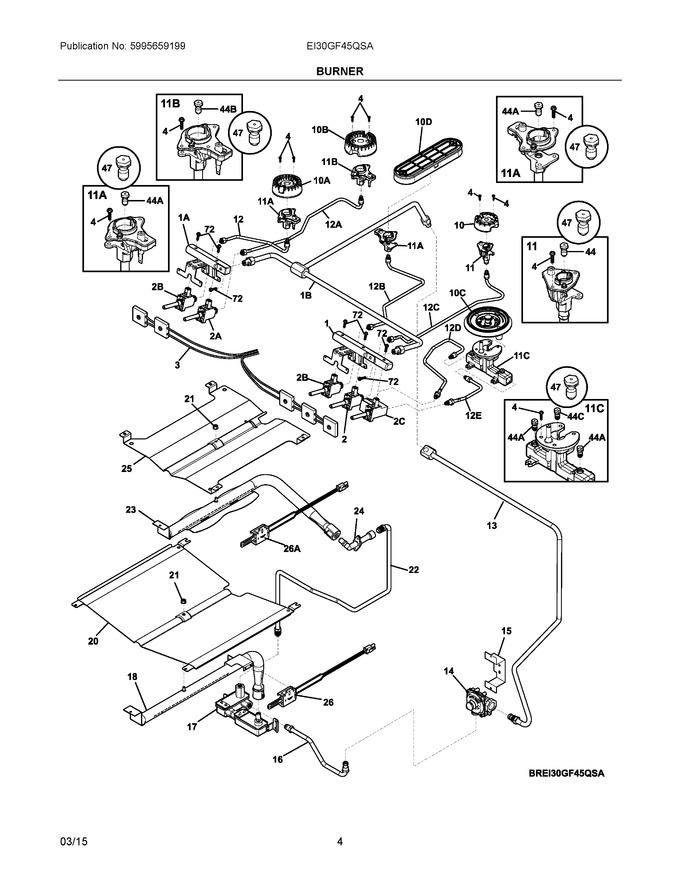

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	808911101		Manifold, Pipe, Rh		Appelez-nous	-
2	5303935306		Valve, Top Burner, 12/14k, W/mtg Screw				$ 89.78
3	5304497166		Harness, Wiring, Ignition, W/switches				$ 208.13
4	316240600		Screw, Hex Wash, 6-32 X .485   (Replaces: 5304472956)			Immediately	$ 13.48
10	316438200		Burner, Sealed, 5k			Immediately	$ 63.00
11	316540800		Ignitor/orifice Assy., Top Burner, 5k, W/holder				$ 12.44
12	809126001		Tube, Burner, Lh Front		Appelez-nous	-
13	809126101		Tube, Supply, Manifold		Appelez-nous	-
14	316091711		Regulator, Pressure   (Replaces: 316416705)			Immediately	$ 100.03
15	318262810		Bracket, Regulator		Appelez-nous	-
16	318289500		Tube, Regulator Valve				$ 75.84
17	316031501		Valve, Safety			Immediately	$ 329.18
18	5304502520		Burner, Bake   (Replaces: 139007000)				$ 192.96
20	139005100		Baffle, Bake Burner				$ 106.31
21	154079601		Nut, Hex Head Sems   (Replaces: 5303013272)				$ 0.46
22	139009500		Tube, Broil Supply				$ 79.54
23	139007101		Burner, Broil   (Replaces: 139007100)				$ 129.15
24	316409703		Elbow, Mixer				$ 138.70
25	316401301		Baffle, Broil Burner				$ 173.57
26	139013700		Ignitor, Bake Burner			Immediately	$ 190.58
44	316527504		Orifice, Burner, 5k				$ 25.20
47	GRLP4		Lp Conversion Kit   (Replaces: 316542417)			Immediately	$ 63.00
72	316215600		Screw, Valve Mtg., 1/4 - 20			Immediately	$ 15.75
10A	316558300		Burner, Sealed, 9.5k			Immediately	$ 58.28
10B	316438600		Burner, Sealed, 14k				$ 88.67
10C	5304501023		Burner Assembly, G5				$ 184.43
10D	316559300		Burner, Sealed, 9.5k, Oval				$ 196.88
11A	316540700		Ignitor/orifice Assy., Top Burner, 9.5k, W/holder				$ 12.39
11B	316543204		Ignitor/orifice Assy., Top Burner, 14k				$ 13.70
11C	316440100		Ignitor/orifice Assy., Top Burner, Twin, 17k, W/holder				$ 186.64
12A	809125701		Tube, Burner, Lh Rear		Appelez-nous	-
12B	809125801		Tube, Burner, Center		Appelez-nous	-
12C	809125601		Tube, Burner, Rh Rear		Appelez-nous	-
12D	809126301		Tube, Twin Burner, Rh Front, Inside				$ 33.86
12E	809125901		Tube, Twin Burner, Rh Front, Outside				$ 30.71
1A	808911102		Manifold, Pipe, Lh		Appelez-nous	-
1B	809125501		Tubing, Interconnect, Manifold		Appelez-nous	-
26A	139013701		Ignitor, Broil Burner				$ 189.79
2A	5304487866		Valve, Top Burner, 16/17/18k, W/mtg Screw				$ 92.93
2B	5303935309		Valve, Top Burner, 9.5k/tortilla				$ 91.35
2C	5303935400		Valve, Top Burner, Dual				$ 163.07
44A	316527500		Orifice, Burner, 9.5k				$ 23.78
44B	316527511		Orifice, Burner, 14k				$ 22.05
44C	316527514		Orifice, Burner, Simmer				$ 22.84
NI	316566901		Sleeve, Insulator				$ 14.32
NI	5303323137		Screw, 10-32 X 17/32				$ 13.20
NI	316418901		Screw, Trilobe, 10-32 X 5/16", Black				$ 15.75
NI	808041201		Harness, Wiring, Oven Ignitors				$ 57.30
NI	5304497167		Harness, Wiring, Ignitor Module, To Ignitors				$ 87.41
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
