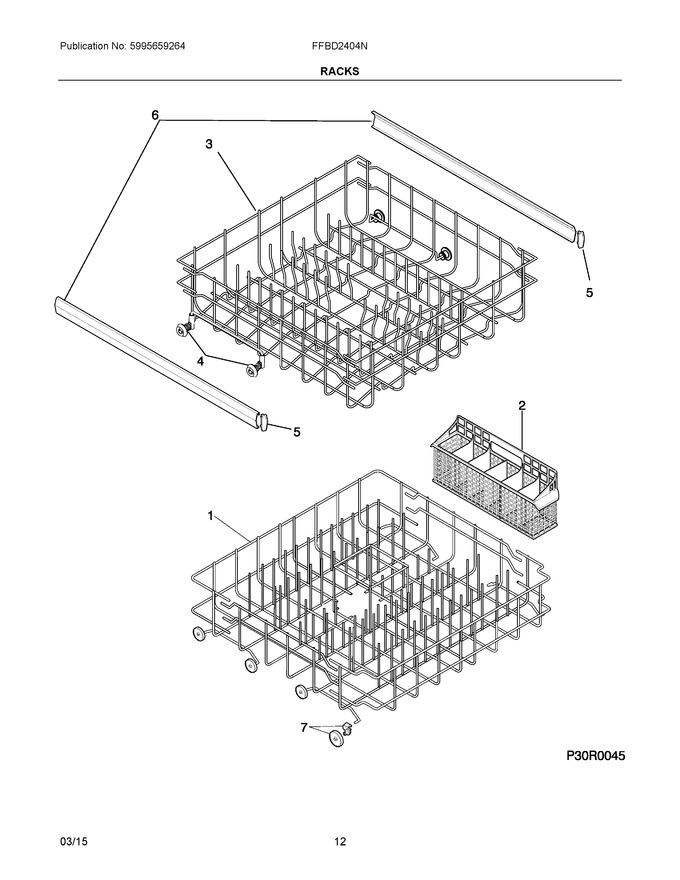

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 154331604 | Rack Assy, Lower |
|
$ 188.20 | |||||
| 2 | 5304509753 | Basket, Silverware, White (Replaces: 5304489877) |
|
Immediately | $ 40.97 | ||||
| 3 | 5304535380 | Rack Assembly, Upper (Replaces: 5304498202) |
|
Immediately | $ 167.45 | ||||
| 4 | 154522902 | Wheel & Bushing Assy, Grey, Upper Rack, (8) |
|
$ 43.93 | |||||
| 5 | 5304506510 | Cap, Slide, Grey, (4) (Replaces: 5304440996) |
|
Immediately | $ 8.03 | ||||
| 6 | 154597801 | Slide, Rack, Upper, (2) |
|
Immediately | $ 10.40 | ||||
| 7 | 5304532229 | Wheel & Bracket Assy, Grey, Lower Rack, (8) (Replaces: 154174503) |
|
Immediately | $ 14.17 | ||||
| NI | 154818702 | Nameplate, Rack Spacer, Grey |
|
$ 11.29 |
