SELECT A DIAGRAM

01 - Cover Sheet


02 - Door


03 - Cabinet


04 - Shelves


05 - System


06 - Wiring Schematic


07 - Wiring Diagram

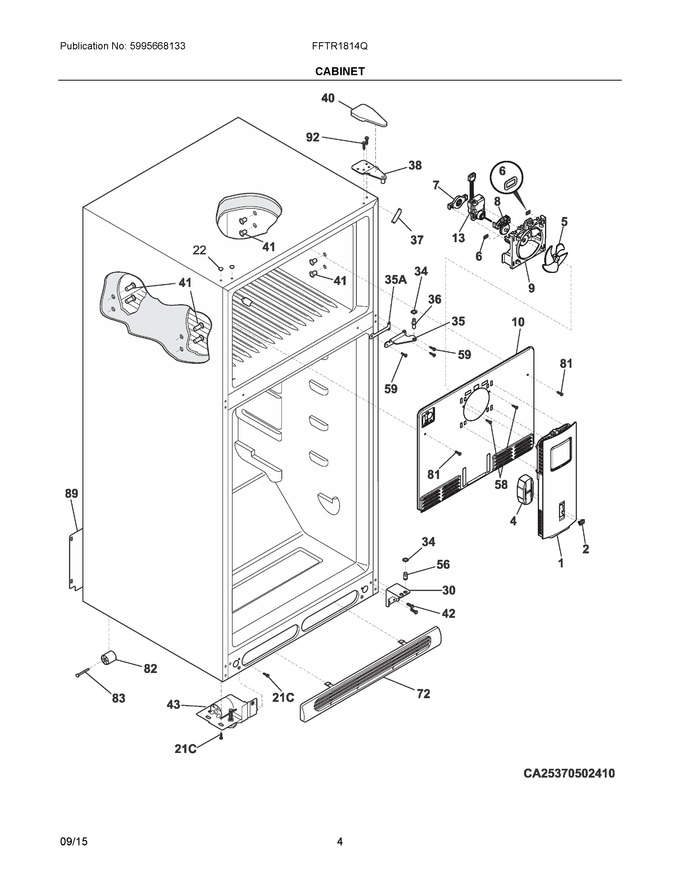

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	242230902		Cover, Evaporator Fan				$ 91.17
4	242294704		Damper, Fan Cover   (Replaces: 242229501)				$ 111.64
5	242219302		Fan Blade, Evaporator			Immediately	$ 19.38
6	5304497413		Ring, Locking, (2)			Immediately	$ 5.90
7	242287501		Grommet, Evaporator Fan, Rear			Immediately	$ 19.69
8	242237301		Grommet, Evaporator Fan, Front				$ 19.38
9	242229301		Shroud Bracket, Evaporator Fan			Immediately	$ 33.86
10	242239304		Cover, Coil, White				$ 68.83
12	242249201		Cover, Connection, Ice Maker				$ 18.21
13	242077705		Motor, Evaporator Fan, Blower   (Replaces: 242219201)			Immediately	$ 158.08
22	215774918		Plug-button, Black, Upr Hinge Holes				$ 10.95
30	240314011		Bracket-lower Hinge, Black   (Replaces: 240314003)			Immediately	$ 85.84
34	240311303		Washer, Hinge, Nylon, (2)			Immediately	$ 11.80
35	240313803		Bracket-ctr Hinge, Black				$ 178.76
36	240516402		Pin-center Hinge		Appelez-nous	-
37	242161202		Trim-cabinet Corner, Black, (2)			Immediately	$ 8.66
38	240313703		Bracket-upper Hinge			Immediately	$ 35.86
40	240354404		Cover-upper Hinge, Black				$ 68.40
41	5304500407		Grommet, Shelf Mtg, 1.25", Lh, (4)   (Replaces: 5308009759)			Immediately	$ 7.09
42	240578902		Screw, Hex Head, 1/4-20 X 5/8			Immediately	$ 15.75
43	241889002		Roller Assy, Front Lh, (2)				$ 70.09
56	240516502		Pin-lower Hinge				$ 80.89
58	241941202		Screw, Hex Washer Head, 8-18 X 5/16   (Replaces: 240433204)				$ 16.85
59	240442707		Screw-#10-32 X 3/4, Black			Immediately	$ 3.15
72	241839407		Grille/kickplate, Black			Immediately	$ 65.36
81	5304455650		Screw, Hex Washer Head, 8-15a X 0.625, Low Profile				$ 15.75
82	240335202		Roller, Compressor Base, Rear				$ 23.63
83	5304455655		Rivet, Flat Head, 1/4 Od X 1-3/4, Roller Pin			Immediately	$ 39.27
89	241733911		Cover-access, W/label				$ 56.12
92	241710601		Screw, Hex Washer Hd, 1/4 X 7/8, Hinge Mtg				$ 14.96
21C	218252201		Screw, #8 Truss Hd, 10-32ca X 0.500			Immediately	$ 15.75
35A	240336803		Spacer-hinge, Center, Black				$ 12.60
NI	240494001		Plug-button, White, Cab Liner Holes			Immediately	$ 20.22
NI	218990901		Clip-wire				$ 82.69
NIA	241500305		Screw, Hex Washer Head, 8-18ab X 0.625   (Replaces: 241500304)				$ 3.37
NIA	218515401		Clip-grille				$ 19.69
NIA	241889001		Roller Assy, Front Rh, (2)			Immediately	$ 71.62
NIA	241586701		Plug, Round, Foam, Ice Maker, Water Inlet				$ 19.69
NIA	5304434189		Seal-coil Cover   (Replaces: 240568601)				$ 74.03
NIB	5304453707		Screw, Quad Hilo, #8-18, (2)   (Replaces: 241953901)			Immediately	$ 17.69
NIC	242213501		Harness, Wiring, Freezer Section, W/defrost Therm			Immediately	$ 97.60
