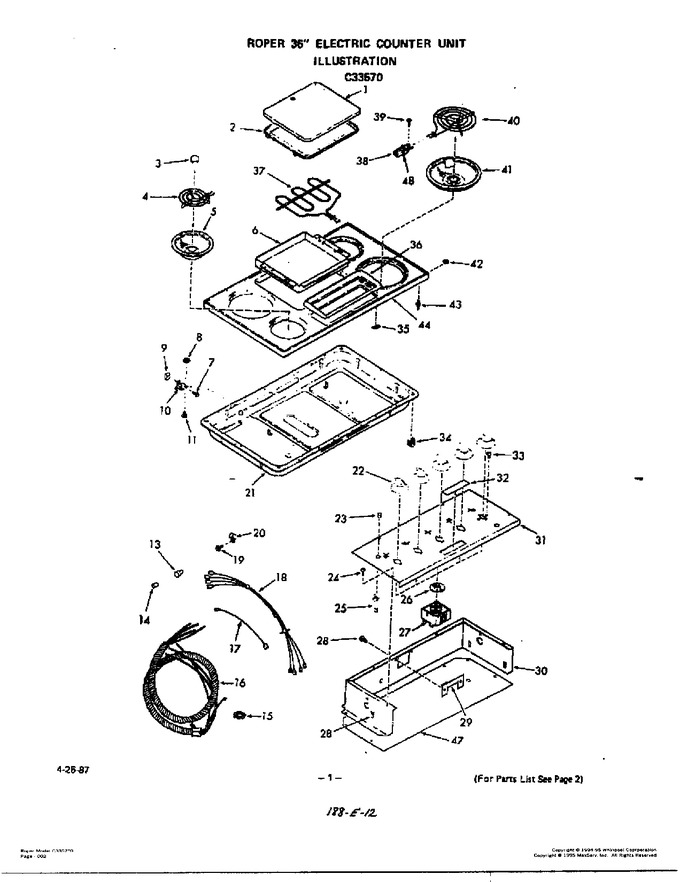

02 - Electric Counter Unit


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	324366		Griddle Cover (chrome)		Appelez-nous	-
1	322220		Griddle Cover (white)		Appelez-nous	-
1	322221		Griddle Cover (coffee)		Appelez-nous	-
1	322222		Griddle Cover (avocado)		Appelez-nous	-
1	330055		Griddle Cover (platinum)		Appelez-nous	-
1	330056		Griddle Cover (toast)		Appelez-nous	-
1	322223		Griddle Cover (golden Wheat)		Appelez-nous	-
1	322224		Griddle Cover (almond)		Appelez-nous	-
2	321860		Griddle-silverstone Coated		Appelez-nous	-
3	318586		Medallion (4 Req)		Appelez-nous	-
4	PS15-4BK		6`` Surface Element (lt. Front & Rt. Rear)   (Replaces: 325510)			Immediately	$ 35.96
5	WPW10196406		6`` Burner Bowl (lt. Frt., Rt. Rear)   (Replaces: 296481)			Immediately	$ 12.05
6	310750		Shield-griddle		Appelez-nous	-
7	102429		Screw 10 - 32 X 3/8``		Appelez-nous	-
8	239764		Keps Nut 8-32		Appelez-nous	-
9	24345		Speed Nut 10-24		Appelez-nous	-
10	107969		Hinge (lt. Or Rt.)		Appelez-nous	-
11	322183		Screw 8-32x1/4``		Appelez-nous	-
13	DG96-00539A		Insulator-nylon   (Replaces: 111999)			Immediately	$ 61.00
14	DG96-00537A		Cap-splice   (Replaces: 111998)				$ 130.37
15	110340		Nut (for Key 16)		Appelez-nous	-
16	311609		Harness Conduit		Appelez-nous	-
17	302410		Fixture Wire Lead (ind. Light To All Top Elem. Controls (yellow))		Appelez-nous	-
17	231784		Fixture Wire Lead (ground Wire (green))		Appelez-nous	-
17	325718		Fixture Wire Lead (cond. Harn. To Grid, Rt. Rear, Rt. Frt. Heat Cont. (red))		Appelez-nous	-
17	325717		Fixture Wire Lead (cond. Harn. To Lt. Frt., & Lt. Rear Heat Cont. (red))		Appelez-nous	-
17	325716		Fixture Wire Lead (cond. Harn. To Grid, Rt. Rear, Rt. Frt. - Heat Cont. (blk))		Appelez-nous	-
17	325715		Fixture Wire Lead (cond. Harn. To Lt. Rear, Lt. Frt., Heat Cont. (blk))		Appelez-nous	-
17	319032		Fixture Wire Lead (grid. Term. Block To Grid Heat Cont. (2 Req-blk))		Appelez-nous	-
17	296386		Fixture Wire Lead (ind. Light To Lt. Rear Inf. Heat Control (red))		Appelez-nous	-
18	318906		Element Wire Harness (right)		Appelez-nous	-
18	318905		Element Wire Harness (left)		Appelez-nous	-
19	295850		Screw 10 - 32 X 7/16``		Appelez-nous	-
20	109267		Clip-wire (2 Req)		Appelez-nous	-
21	316339		Burner Box		Appelez-nous	-
22	328201		Knob (5 Req) (all 219870 & 90 Models)		Appelez-nous	-
23	233161		Lens-indicator Light		Appelez-nous	-
24	78153		Screw 6-32x5/16``		Appelez-nous	-
25	288814		Indicator Light		Appelez-nous	-
26	280157		Seal-infinite Control (5 Req)				$ 275.75
27	324608		Infinite Heat Control (lt. Frt., Rt. Rr. Grid.)		Appelez-nous	-
27	324609		Infinite Heat Control (rt. Frt., Lt. Rr.)		Appelez-nous	-
28	102429		Screw 10 - 32 X 3/8``		Appelez-nous	-
29	310605		Support-terminal Block		Appelez-nous	-
30	310611		Control Housing		Appelez-nous	-
31	308849		Mounting Plate-controls		Appelez-nous	-
32	303098		Name Plate		Appelez-nous	-
33	70655		Screw 8-32x1/4``		Appelez-nous	-
34	71003		Catch		Appelez-nous	-
35	24710		Speed Nut		Appelez-nous	-
36	278503		Control Bezel		Appelez-nous	-
37	310604		Griddle Element		Appelez-nous	-
38	330031		Terminal Block W/wire Leads (5 Req)   (Replaces: 318960)			Immediately	$ 17.93
39	299632		Screw 7-32x5/16``		Appelez-nous	-
40	PS26-4BK		8`` Surface Element (rt. Front & Lt. Rear)   (Replaces: 325506)			Immediately	$ 40.46
41	WPW10196405		8`` Burner Bowl-rt. Front & Lt. Rear   (Replaces: 304969)			Immediately	$ 15.56
42	239764		Keps Nut		Appelez-nous	-
43	299784		Strike (2 Req)		Appelez-nous	-
44	324376		Main Top (chrome)		Appelez-nous	-
44	330053		Main Top (toast)		Appelez-nous	-
44	330052		Main Top (platinum)		Appelez-nous	-
44	315683		Main Top (golden Wheat)		Appelez-nous	-
44	315684		Main Top (almond)		Appelez-nous	-
44	315680		Main Top (white)		Appelez-nous	-
44	315681		Main Top (coffee)		Appelez-nous	-
44	315682		Main Top (avocado)		Appelez-nous	-
47	305982		Shield-controls		Appelez-nous	-
48	318872		Bracket-terminal Block (5 Req)		Appelez-nous	-
