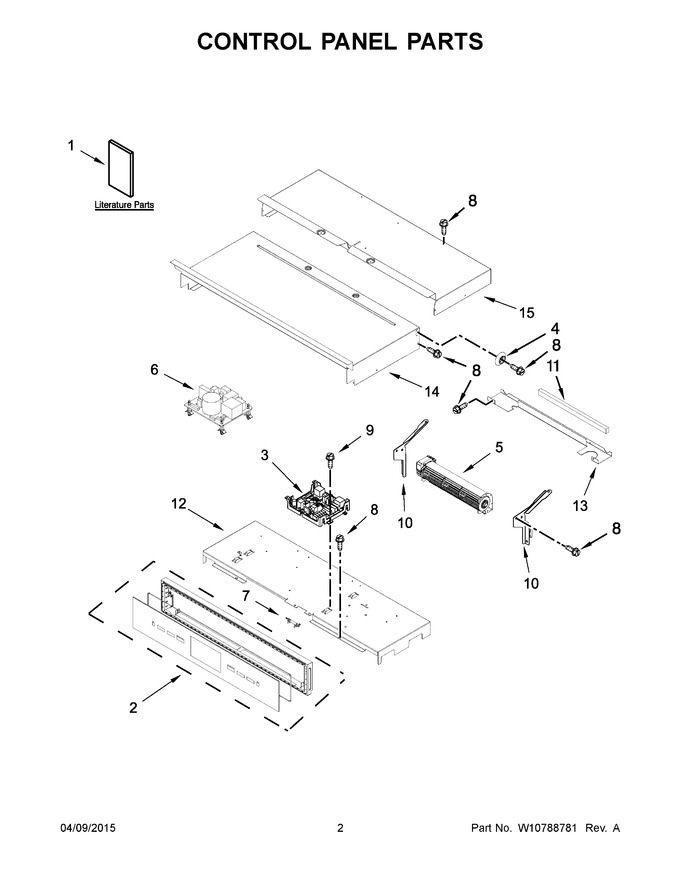

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10754335		Guide, Use & Care		Appelez-nous	-
2	W11087460		Assembly, Control Panel (includes Overlay) (black)   (Replaces: W10484355)				$ 1,478.67
3	W11179310		Control (with Power Supply)   (Replaces: W10777215)			Immediately	$ 456.49
4	W10618105		Spacer, Lateral		Appelez-nous	-
5	W11713858		Blower   (Replaces: W10669823)			Immediately	$ 348.59
6	WPW10260060		Board, Power Supply   (Replaces: W10260060)			Immediately	$ 317.35
7	W11204568		Fuse, Thermal   (Replaces: W10782117)			Immediately	$ 131.58
8	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
9	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 7.30
10	W10655463		Bracket, Blower (left)		Appelez-nous	-
11	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 8.14
12	W10694467		Tray, Electronic		Appelez-nous	-
13	W10655465		Chassis, Back Divider		Appelez-nous	-
14	W10444125		Chassis, Cover Top Front 30		Appelez-nous	-
15	W10904156		Chassis, Cover Top Back 30   (Replaces: W10694465)		Appelez-nous	-
10A	W10655462		Bracket, Blower (right)		Appelez-nous	-
1A	W10768183		Instructions, Installation		Appelez-nous	-
1B	W10767734		Sheet, Tech		Appelez-nous	-
NI	W11699910		Harness, Eol   (Replaces: W10562910)			Immediately	$ 32.95
NI	4450800		Screw, Grounding				$ 13.47
NI	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
NI	4452400		Strap, Lead Ground				$ 45.42
NI	4448664		Clamp, Conduit				$ 21.41
NI	W10655464		Bracket, Harness				$ 40.71
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11132993		Harness, Main   (Replaces: W10667012)				$ 247.32
NI	W11226263		Harness, Signal   (Replaces: W10517751)				$ 231.12
NI	W10573327		Harness, Door Latch				$ 67.67
