Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10741197 Installation Instructions Appelez-nous -
2 W11806565 Arm, Hinge (left Hand)   (Replaces: 8534854) In-Stock Immediately $ 142.39

3 W10850371 Barrier, Vapor   (Replaces: W10321448) In-Stock Immediately $ 32.88

4 W10919287 Screw   (Replaces: W10696150) Special Order $ 11.24

5 WPW10526114 Access Panel (black)   (Replaces: W10526114) In-Stock Immediately $ 149.53

6 W10901498 Panel, Front (includes 4, 10, 11 & 16) (black)   (Replaces: W10774901) Special Order $ 417.86

7 W10917698 Set Screw   (Replaces: W10687133) In-Stock Immediately $ 7.55

8 W10831329 Insulation, Four Layer   (Replaces: W10518815) In-Stock Immediately $ 43.30

9 W10708004 Handle Assembly (stainless) In-Stock Immediately $ 141.35

10 W11157086 Stud, Mounting   (Replaces: W10195726) In-Stock Immediately $ 8.87

11 W10831647 Assembly, Lightpipe Status   (Replaces: W10674446) Appelez-nous -
12 WPW10503548 Fastener (black)   (Replaces: W10503548) In-Stock Immediately $ 30.39

13 WP489069 Screw   (Replaces: 304392) In-Stock Immediately $ 8.40

14 W11116870 Bracket, Control   (Replaces: W10641745) Special Order $ 89.95

15 WP3400071 Screw   (Replaces: 3400071) Special Order $ 8.26

16 W10909682 Nameplate (grey)   (Replaces: W10518672) In-Stock Immediately $ 76.20

17 WPW10073520 Insulation, Door   (Replaces: W10073520) Special Order $ 96.23

18 W10692757 Barrel Nut, Front Panel Special Order $ 16.01

12A WPW10503549 Fastener (white)   (Replaces: W10503549) In-Stock Immediately $ 7.77

1A W10746816 Energy Guide Appelez-nous -
1B W10751710 Use & Care Guide Appelez-nous -
1C W10750905 Tech Sheet, English Appelez-nous -
1D W10750906 Tech Sheet, French Appelez-nous -
2A W11806608 Arm, Hinge (right Hand)   (Replaces: 8534853) In-Stock Immediately $ 142.24

5A WPW10526115 Access Panel (white)   (Replaces: W10526115) Special Order $ 175.17

6A W10911301 Panel, Front (includes 4, 10, 11 & 16) (white)   (Replaces: W10774902) Special Order $ 419.52

6B W10900374 Panel, Front (includes 4, 10, 11 & 16) (stainless)   (Replaces: W10774903) In-Stock Immediately $ 419.85


    View Diagram in Separate Window     Print Icon   Print Part List

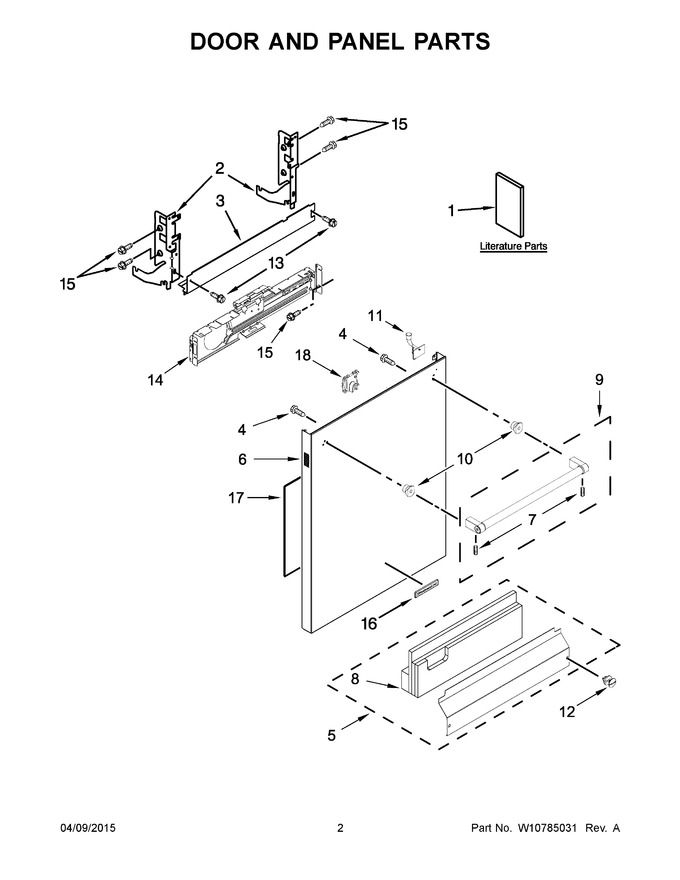

Diagram for KDTE204EWH0
