Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10741197 Installation Instructions Appelez-nous -
2 W11806565 Arm, Hinge (left Hand)   (Replaces: 8534854) In-Stock Immediately $ 128.15

3 W10850371 Barrier, Vapor   (Replaces: W10321448) In-Stock Immediately $ 29.59

4 W10919287 Screw   (Replaces: W10696150) Special Order $ 10.12

5 W11763736 Access Panel (black)   (Replaces: W10195777) In-Stock Immediately $ 38.03

6 W10900374 Panel, Front (includes 4, 10, 11 & 16) (stainless)   (Replaces: W10774903) In-Stock Immediately $ 377.87

7 W10917698 Set Screw   (Replaces: W10687133) In-Stock Immediately $ 6.80

8 W11223838 Insulation, Four Layer   (Replaces: W10735304) In-Stock Immediately $ 39.52

9 W10708004 Handle Assembly (stainless) In-Stock Immediately $ 127.22

10 W11157086 Stud, Mounting   (Replaces: W10195726) In-Stock Immediately $ 7.98

11 W10692757 Barrel Nut, Front Panel Special Order $ 14.41

12 WP302868 Screw (black)   (Replaces: 302868) In-Stock Immediately $ 7.36

13 WP489069 Screw   (Replaces: 304392) In-Stock Immediately $ 7.56

14 W11116870 Bracket, Control   (Replaces: W10641745) Special Order $ 80.96

15 WP3400071 Screw   (Replaces: 3400071) In-Stock Immediately $ 7.43

16 W10909682 Nameplate (grey)   (Replaces: W10518672) In-Stock Immediately $ 68.58

17 W11126003 Insulation, Front Panel   (Replaces: W10620222) In-Stock Immediately $ 58.73

18 WP8269016 Clip, Ground   (Replaces: 8269016) Special Order $ 10.09

19 W10871196 Toe Panel (black)   (Replaces: W10737729) Special Order $ 156.64

20 W10831647 Assembly, Lightpipe Status   (Replaces: W10674446) Appelez-nous -
1A W10746817 Energy Guide Appelez-nous -
1B W10762967 Use & Care Guide Appelez-nous -
1C W10656167 Tech Sheet, English Appelez-nous -
1D W10656168 Tech Sheet, French Appelez-nous -
2A W11806608 Arm, Hinge (right Hand)   (Replaces: 8534853) In-Stock Immediately $ 128.02


    View Diagram in Separate Window     Print Icon   Print Part List

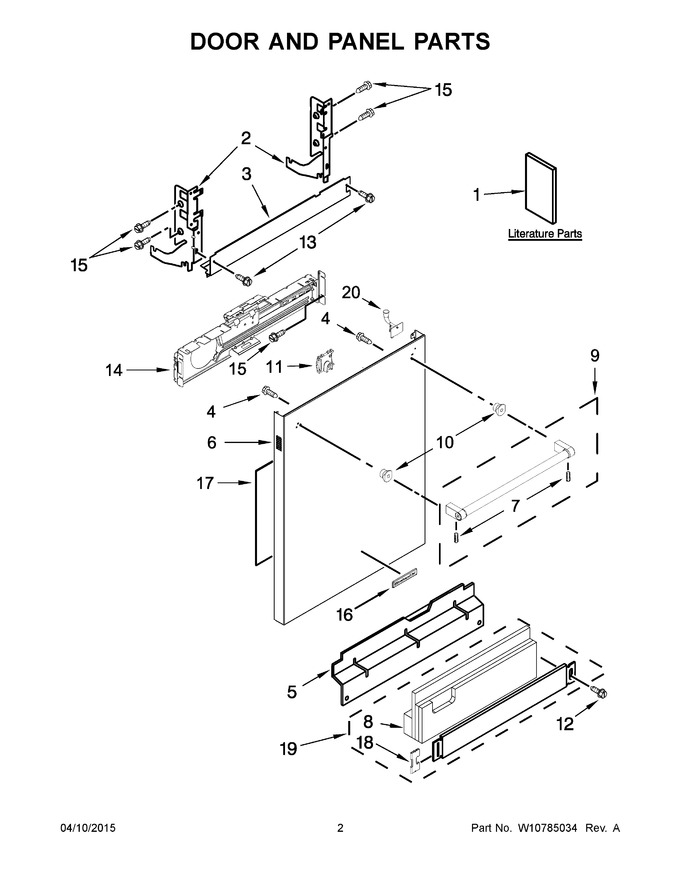

Diagram for KDTM354ESS0
