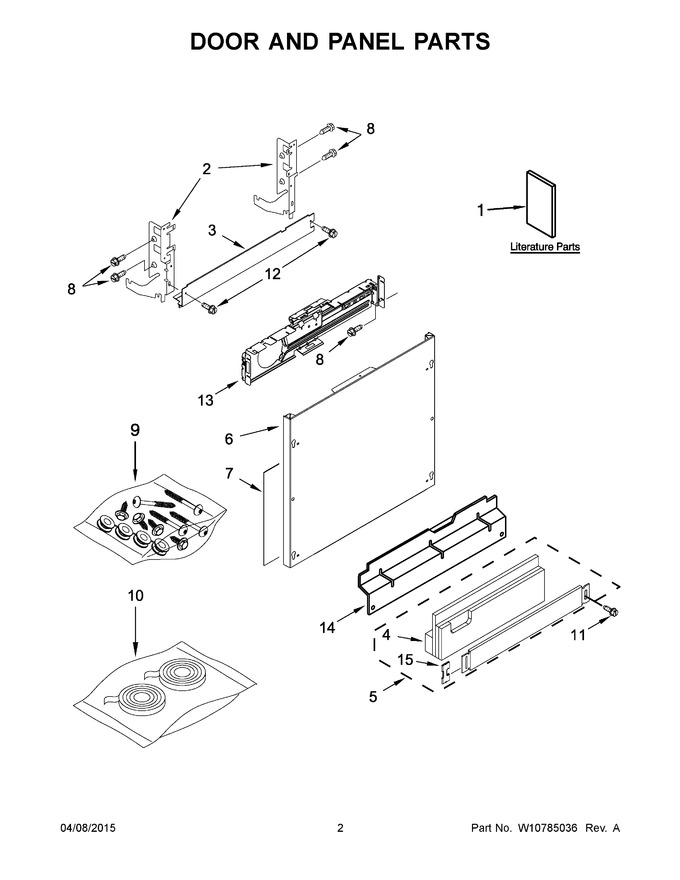

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10741197		Installation Instructions		Appelez-nous	-
2	W11806565		Arm, Hinge (left Hand)   (Replaces: 8534854)			Immediately	$ 142.39
3	W10850371		Barrier, Vapor   (Replaces: W10321448)			Immediately	$ 32.88
4	W11223838		Insulation, Four Layer   (Replaces: W10735304)			Immediately	$ 43.91
5	W10871196		Toe Panel (black)   (Replaces: W10737729)				$ 174.04
6	W11113792		Panel Ready (front)   (Replaces: W10292632)			Immediately	$ 373.42
7	W10234565		Insulation, Front Panel				$ 69.57
8	WP3400071		Screw   (Replaces: 3400071)				$ 8.26
9	WPW10637074		Hardware, Custom Panel   (Replaces: W10195008)			Immediately	$ 75.05
10	WPW10366978		Seal, Panel Ready   (Replaces: W10366978)			Immediately	$ 29.80
11	WP302868		Screw (black)   (Replaces: 302868)			Immediately	$ 8.18
12	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
13	W11116870		Bracket, Control   (Replaces: W10641745)				$ 89.95
14	W11763736		Access Panel (black)   (Replaces: W10195777)			Immediately	$ 42.25
15	WP8269016		Clip, Ground   (Replaces: 8269016)				$ 11.21
1A	W10746817		Energy Guide		Appelez-nous	-
1B	W10762967		Use & Care Guide		Appelez-nous	-
1C	W10758801		Tech Sheet, English		Appelez-nous	-
1D	W10758802		Tech Sheet, French		Appelez-nous	-
1E	W10195005		Template, 6" Custom Panel		Appelez-nous	-
2A	W11806608		Arm, Hinge (right Hand)   (Replaces: 8534853)			Immediately	$ 142.24
