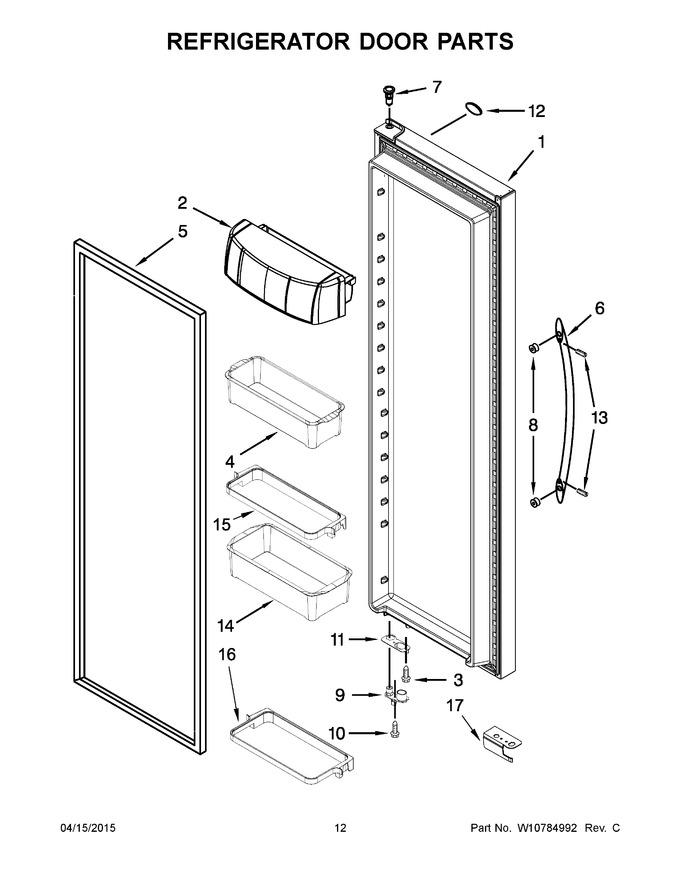

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10637819 | Refrigerator Door (includes Item 5) (stainless) (Replaces: W10637819) |
|
$ 1,334.54 | |||||
| 2 | WPW10324760 | Assembly, Utility Compartment (Replaces: W10324760) |
|
$ 85.60 | |||||
| 3 | WPW10296816 | Screw (Replaces: W10296816) |
|
$ 8.06 | |||||
| 4 | WPW10316461 | Door Bin, Shallow (Replaces: W10316461) |
|
$ 84.03 | |||||
| 5 | W10355588 | Door Gasket, Magnetic (grey) (Replaces: W10249918) |
|
$ 319.21 | |||||
| 6 | WPW10314517K | Handle (stainless) (Replaces: W10314517) |
|
$ 243.37 | |||||
| 7 | WP2182181 | Thimble, Top (Replaces: 2200086) |
|
$ 8.15 | |||||
| 8 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 12.88 | ||||
| 9 | WPW10257203 | Door Closer, Upper Cam (grey) (Replaces: W10257203) |
|
$ 12.96 | |||||
| 10 | WPW10296804 | Screw (Replaces: W10296804) |
|
$ 11.39 | |||||
| 11 | W11037957 | Bracket, Door Stop (Replaces: W10367462) |
|
$ 80.24 | |||||
| 12 | WPW10243391 | Nameplate (grey) (Replaces: W10243391) |
|
$ 58.31 | |||||
| 13 | WP3400203 | Screw, Set (Replaces: W10287054) |
|
Immediately | $ 5.04 | ||||
| 14 | WPW10316457 | Bin, Door Gallon (Replaces: W10316457) |
|
Immediately | $ 98.69 | ||||
| 15 | WPW10494333 | Frame, Shallow Door Bin (Replaces: W10494333) |
|
$ 267.25 | |||||
| 16 | WPW10494334 | Frame, Gallon Door Bin (Replaces: W10494334) |
|
$ 266.97 | |||||
| 17 | W11661847 | Cover, Door Stop (grey) (Replaces: W10257218) |
|
Immediately | $ 31.71 |
