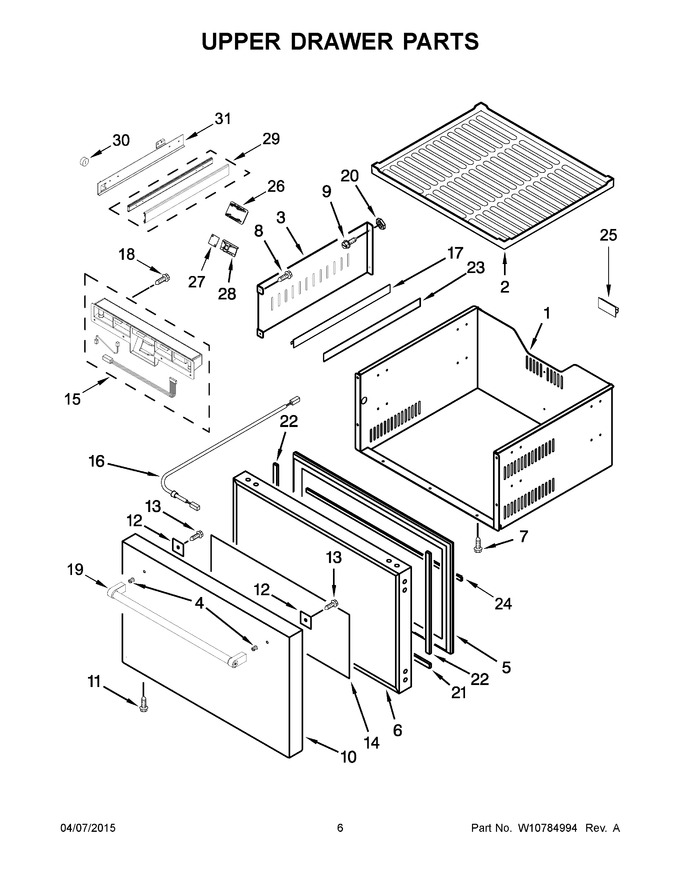

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10789523		Drawer Box Assembly, Upper				$ 384.03
2	W10622004		Mat, Upper Drawer				$ 361.89
3	W10270486		Drawer Partition				$ 299.33
4	W11179356		Stud, Mounting   (Replaces: W10772902)				$ 16.62
5	WPW10622006		Gasket   (Replaces: W10622006)			Immediately	$ 183.09
6	W10789530		Top Foamed Door Assembly		Appelez-nous	-
7	W10319183		Screw		Appelez-nous	-
8	W10204809		Screw		Appelez-nous	-
9	W10204810		Screw		Appelez-nous	-
10	W10796876		Wrap, Stainless				$ 488.19
11	W11051564		Screw   (Replaces: W10796877)				$ 15.53
12	W11263339		Plate, Door Handle   (Replaces: W10622815)				$ 17.39
13	W10859467		Screw, Handle   (Replaces: W10204866)				$ 80.23
14	W10204867		Wrap Spacer		Appelez-nous	-
15	W10796879		Control Panel Assembly			Immediately	$ 722.55
16	W10789534		Harness, Display To Indicator			Immediately	$ 150.63
17	W10622013		Support, Lead Wire				$ 28.70
18	W10204808		Screw		Appelez-nous	-
19	W10708004		Handle   (Replaces: W10789532)			Immediately	$ 141.35
20	W10204920		Nut		Appelez-nous	-
21	W10204889		Door Gasket, Long		Appelez-nous	-
22	W10204897		Door Gasket, Short		Appelez-nous	-
23	W10205081		Wire Support Tape				$ 62.83
24	W10287957		Seal, Cold Air		Appelez-nous	-
25	W10772901		Support, Wire				$ 19.56
26	W10204929		Lamp Cover				$ 89.18
27	W10204930		Led Lamp				$ 347.60
28	W10204931		Lamp Holder				$ 79.66
29	WPW10233777		Rail Assembly   (Replaces: W10233777)				$ 349.36
30	W10624158		Bumper Support				$ 22.86
31	W10789525		Support Shelf, Left Hand				$ 294.81
31A	W10789528		Support Shelf, Right Hand				$ 345.68
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10788702		Overlay Installation Kit				$ 107.70
