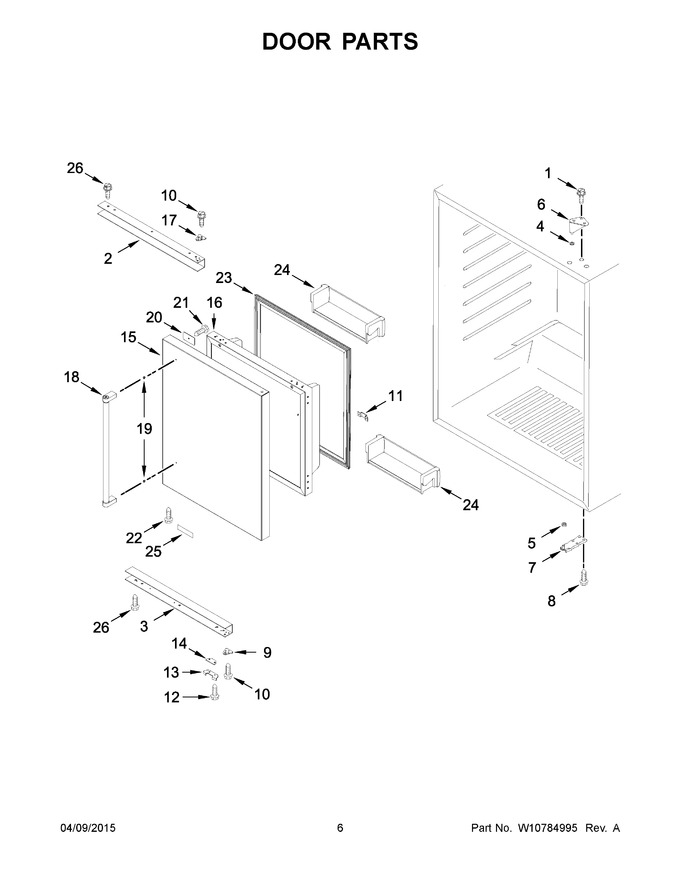

01 - Cover Sheet


02 - Cabinet Parts


03 - Shelf Parts


04 - Door Parts


05 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4344796		Screw				$ 16.82
2	W10797365		Top Hinge Plate (right Hinge)		Appelez-nous	-
3	W10797371		Bottom Hinge Plate (right Hinge)		Appelez-nous	-
4	4344760		Washer				$ 15.91
5	W11241702		Washer   (Replaces: W10162992)				$ 14.27
6	4344754		Hinge, Top				$ 89.01
7	W10239363		Bottom Hinge (right Hinge)   (Replaces: 4344753)				$ 80.61
8	W10780355		Bolt				$ 50.19
9	4344756		Spacer, Bottom Hinge				$ 20.70
10	W10243123		Screw   (Replaces: W10797377)				$ 16.82
11	W10622808		Switch Plate				$ 27.27
12	4344801		Screw				$ 16.82
13	4344758		Door Stop		Appelez-nous	-
14	4344788		Spacer, Door				$ 171.37
15	W10797378		Stainless Wrap (right Hinge)				$ 770.92
16	W10622805		Door Assembly		Appelez-nous	-
17	4344755		Spacer, Top Hinge				$ 20.03
18	W11497229		Handle   (Replaces: W10797382)			Immediately	$ 186.18
19	W11179356		Stud, Mounting   (Replaces: W10772902)				$ 16.62
20	W11263339		Plate, Door Handle   (Replaces: W10622815)				$ 17.39
21	W10859467		Screw, Handle   (Replaces: W10204866)				$ 80.23
22	4344827		Screw		Appelez-nous	-
23	WPW10624183		Gasket, Door   (Replaces: W10624183)				$ 271.52
24	W10175958		Door Bin		Appelez-nous	-
25	W11179312		Nameplate   (Replaces: W10772910)				$ 93.49
26	W10319185		Screw		Appelez-nous	-
15A	W10797379		Stainless Wrap (left Hinge)		Appelez-nous	-
2A	W10797369		Top Hinge Plate (left Hinge)		Appelez-nous	-
3A	W10797375		Bottom Hinge Plate (left Hinge)		Appelez-nous	-
7A	4344787		Bottom Hinge (left Hinge)				$ 217.36

    View Diagram in Separate Window       Print Part List
