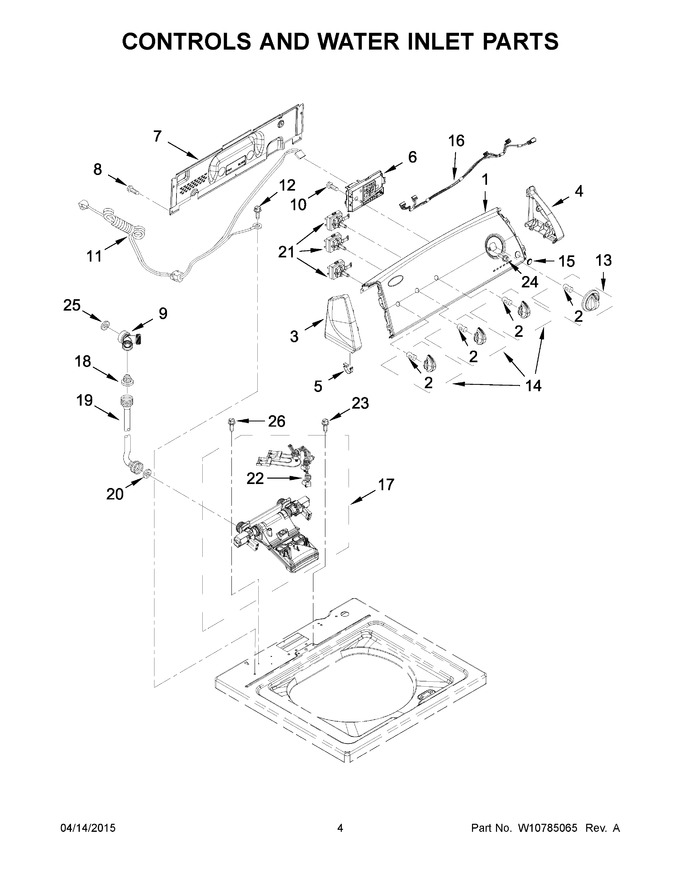

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10251314 | Panel, Console |
|
$ 208.56 | |||||
| 2 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 3 | WP8565957 | End Cap (left) (white) (Replaces: 8566035) |
|
$ 64.76 | |||||
| 4 | WP8565954 | End Cap (right) (white) (Replaces: 8566032) |
|
$ 65.84 | |||||
| 5 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 6 | WPW10754624 | Control Unit Assembly, Machine & Motor (Replaces: W10754624) |
|
$ 409.78 | |||||
| 7 | WPW10461159 | Panel, Console Rear Cover (Replaces: W10461159) |
|
Immediately | $ 360.43 | ||||
| 8 | WP489069 | Screw (Replaces: 1157158) |
|
Immediately | $ 8.40 | ||||
| 9 | WPW10269488 | Connector, Hose -"y (Replaces: W10269488) |
|
$ 89.64 | |||||
| 10 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 11 | WPW10525194 | Cord, Power (Replaces: W10525194) |
|
$ 163.41 | |||||
| 12 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 8.20 | ||||
| 13 | W10034750 | Assembly, Timer Knob (white/metallic) |
|
$ 28.27 | |||||
| 14 | W10034380 | Assembly, Control Knob (white/metallic) |
|
$ 25.06 | |||||
| 15 | WPW10251309 | Push Button, Start (Replaces: W10251309) |
|
Immediately | $ 76.00 | ||||
| 16 | W10291183 | Harness, Upper |
|
$ 156.04 | |||||
| 17 | WPW10683653 | Inlet Assembly, Water (Replaces: W10683653) |
|
$ 216.49 | |||||
| 18 | 285452A | Washer, Filter (Replaces: 353362A) |
|
Immediately | $ 9.69 | ||||
| 19 | WP89503 | Hose, Water Inlet (cold) (Replaces: W10194210) |
|
Immediately | $ 24.09 | ||||
| 20 | WP16123 | Washer, Inlet Hose (Replaces: W10242307) |
|
$ 8.16 | |||||
| 21 | WPW10285512 | Temperature Control (Replaces: W10285512) |
|
Immediately | $ 190.47 | ||||
| 22 | W10876654 | Harness, Valve (Replaces: W10684972) |
|
$ 194.92 | |||||
| 23 | WP8281163 | Screw (stainless) (Replaces: 8281163) |
|
Immediately | $ 10.70 | ||||
| 24 | WP3400818 | Screw (Replaces: 3400818) |
|
$ 8.81 | |||||
| 25 | WP3357450 | Washer, Hose Adapter (Replaces: 3357450) |
|
$ 11.56 | |||||
| 26 | WPW10213953 | Screw (Replaces: W10213953) |
|
Immediately | $ 7.55 | ||||
| 19A | WP89503 | Hose, Water Inlet (hot) (Replaces: W10194211) |
|
Immediately | $ 24.09 |
