01 - Cover Sheet
02 - Oven Parts
03 - Control Panel Parts
04 - Microwave Door Parts

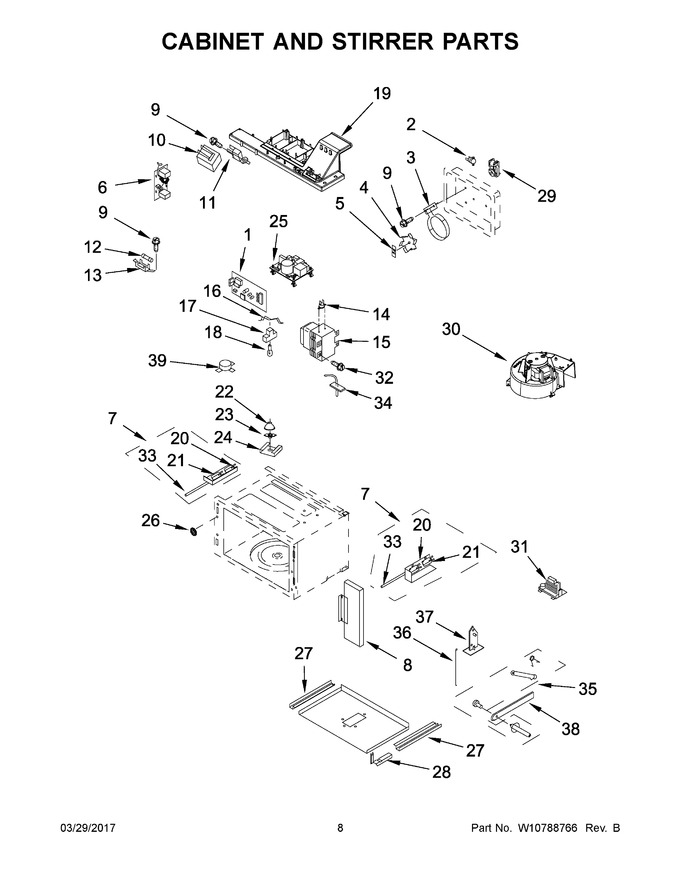

05 - Cabinet And Stirrer Parts
06 - Internal Microwave Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10915648 | Manager, Appliance (Replaces: W10510103) |
|
Immediately | $ 267.43 | ||||
| 2 | W11607085 | Thermostat (Replaces: W10120223) |
|
Immediately | $ 44.42 | ||||
| 3 | WPW10493735 | Heater, Convection Element (Replaces: W10493735) |
|
Immediately | $ 110.49 | ||||
| 4 | W11512064 | Fan, Convection (Replaces: 4375418) |
|
Immediately | $ 171.35 | ||||
| 5 | W11724411 | Nut, Speed (Replaces: W10120233) |
|
Immediately | $ 60.47 | ||||
| 6 | W10853613 | Filter, Noise (Replaces: W10486187) |
|
$ 215.76 | |||||
| 7 | W11033422 | Assembly, Interlock Switch (Replaces: W10358241) |
|
Immediately | $ 159.55 | ||||
| 8 | 461967017511 | Trim, Side (left) (Replaces: W10486167) |
|
- | |||||
| 9 | 461967825321 | Screw (Replaces: W10131249) |
|
$ 12.13 | |||||
| 10 | W11238401 | Transformer (Replaces: 8205692) |
|
Immediately | $ 360.89 | ||||
| 11 | 461967842541 | Thermoactuator (Replaces: 4375427) |
|
$ 72.29 | |||||
| 12 | WP4375321 | Fuse (Replaces: 4375321) |
|
Immediately | $ 18.28 | ||||
| 13 | W10245194 | Block, Fuse (Replaces: 4375231) |
|
$ 87.31 | |||||
| 14 | W11233913 | Thermostat (Replaces: W10287986) |
|
Immediately | $ 156.08 | ||||
| 15 | W11346197 | Magnetron (Replaces: W10120113) |
|
Immediately | $ 271.25 | ||||
| 16 | W10475855 | Spring, Lamp |
|
- | |||||
| 17 | WPW10490593 | Housing, Lamp (Replaces: 8205658) |
|
$ 77.82 | |||||
| 18 | W10886919 | Lamp, Halogen (Replaces: W10287972) |
|
Immediately | $ 32.22 | ||||
| 19 | W10130898 | Duct, Magnetron (Replaces: W10389596) |
|
- | |||||
| 20 | W10211972 | Switch (Replaces: W10330566) |
|
Immediately | $ 52.40 | ||||
| 21 | WP8205683 | Holder, Switch (Replaces: 8205683) |
|
Immediately | $ 99.41 | ||||
| 22 | 423107022541 | Reflector (Replaces: 4375320) |
|
$ 85.90 | |||||
| 23 | W11193483 | Lens, Lamp (Replaces: 4375318) |
|
Immediately | $ 104.82 | ||||
| 24 | W11440819 | Clip, Spring (Replaces: W10120231) |
|
$ 23.00 | |||||
| 25 | WPW10260060 | Board, Power Supply (Replaces: W10260060) |
|
Immediately | $ 317.35 | ||||
| 26 | W10759525 | Grommet, Front Frame (Replaces: W10283016) |
|
$ 8.21 | |||||
| 27 | 8205707 | Support, Bottom |
|
Immediately | $ 68.79 | ||||
| 28 | W11642291 | Hinge, Door (Replaces: W10419878) |
|
$ 83.24 | |||||
| 29 | 461969000371 | Motor, Convection Fan (Replaces: W10493733) |
|
Immediately | $ 191.75 | ||||
| 30 | W11344874 | Assembly, Blower (Replaces: W10330572) |
|
Immediately | $ 191.74 | ||||
| 31 | W10217711 | Inverter (Replaces: W10510105) |
|
Immediately | $ 289.63 | ||||
| 32 | 461967825971 | Screw (Replaces: W10130890) |
|
- | |||||
| 33 | WPW10120235 | Rod, Release (Replaces: W10120235) |
|
Immediately | $ 7.32 | ||||
| 34 | W11208292 | Sensor, Convection (Replaces: W10287987) |
|
$ 162.14 | |||||
| 35 | WPW10128850 | Assembly, Sliding Arm (Replaces: W10128850) |
|
Immediately | $ 142.08 | ||||
| 36 | W11700292 | Spring, Torsion (Replaces: 8205704) |
|
$ 72.30 | |||||
| 37 | W11684510 | Support (Replaces: 8205686) |
|
Immediately | $ 15.52 | ||||
| 38 | W11214480 | Arm, Sliding (Replaces: W10120236) |
|
$ 100.54 | |||||
| 39 | W11699906 | Sensor, Humidity (Replaces: W10389448) |
|
$ 138.56 | |||||
| 8A | W11044584 | Trim, Side (right) (Replaces: W10486170) |
|
- |
